2005 MAZAK Integrex 300-III ST CNC Lathe
Specifications
| Manufacturer | MAZAK |
| Model | Integrex 300-III ST |
| Year | 2005 |
| Condition | Used |
| Availability | Directly available |
| Owned by | PIPM Group |
| X1/X2-axis travel | 630/230mm |
| Y-axis travel | 230mm |
| Z1/Z2-axis travel | 1585/1530mm |
| W-axis travel | 1530mm |
| X1/X2/Y/Z1/Z2/W-axis rapid traverse | 38/38/26/38/38/30 m/min |
| Maximum working length | 1524mm |
| Maximum working diameter | 760mm |
| Main spindle speed | 35-4.000 rpm |
| Sub spindle speed | 35-4.000 rpm |
| Main/sub spindle bore | 88mm |
| Main/sub spindle power | 26 kW |
| Milling spindle speed | 15-12.000 rpm |
| Milling spindle power | 18,5 kW |
| Toolholder type | C6 |
| Positions in the toolmagazine | 80 |
| Positions on turret | 9 |
| Control system | Mazatrol 640MT Pro |

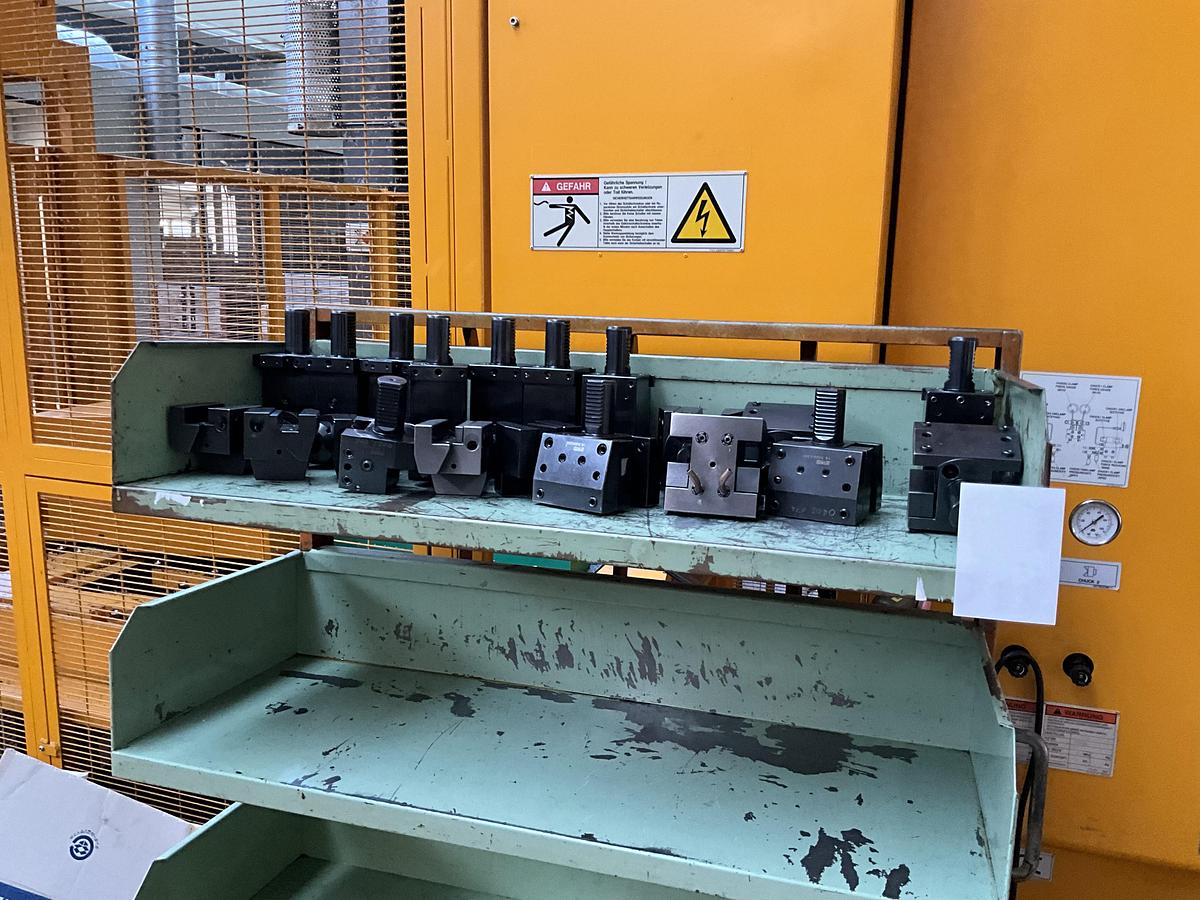

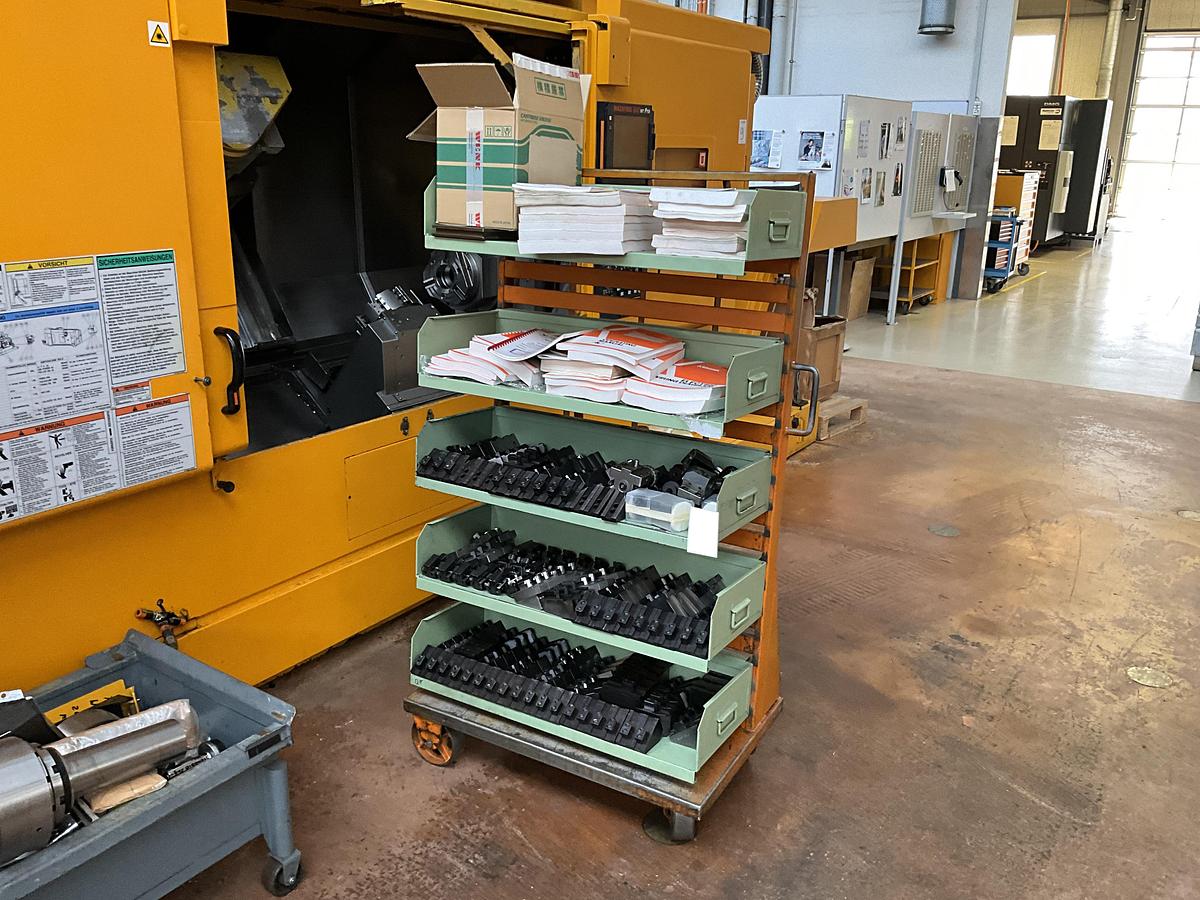

| Equipped with | un-loading magazine, tool pre setter, Mayfran chip conveyor, paper filter, wetter oil mist separator, probe, 2x Forkardt 250mm 3-jaw chuck, various jaw sets, 260x C6 toolholder |
Description
For sale: 2005 MAZAK Integrex 300-III ST CNC Lathe > sale of top quality modern precision tools turning and milling CNC metal working machines, due to the relocation of the manufacturing operations in Switzerland to their main facility in Japan of Big Kaiser Präzisionswerkzeuge AG in Rümlang (near Zürich) in Switzerland.
Also available:
- 2012 Stama MC 726 CNC machining center
- 2012 Rosa Ermando SL 11.7 profile surface grinding machine
- 2019 Spinner PD 42-S-V4 ultra-precision lathe
- 2004 ABA Z&B Starline 800 E precision surface and profile grinding machine
- various Big Daishowa toolholders (HSK-A63, HSK-T63, C5, C5 mega baby chuck, C6, SK 40)
For more detailed machine information, output and specifications, to schedule an on-site inspection and/or direct sale price quotations please contact us via sales@assetsforsale.com. The machine's availability is subject to ongoing private treaty.
* Please note that this description has been translated automatically. The information in this listing is only indicative and is subject to change at any time without notice. Contact us for further information.
