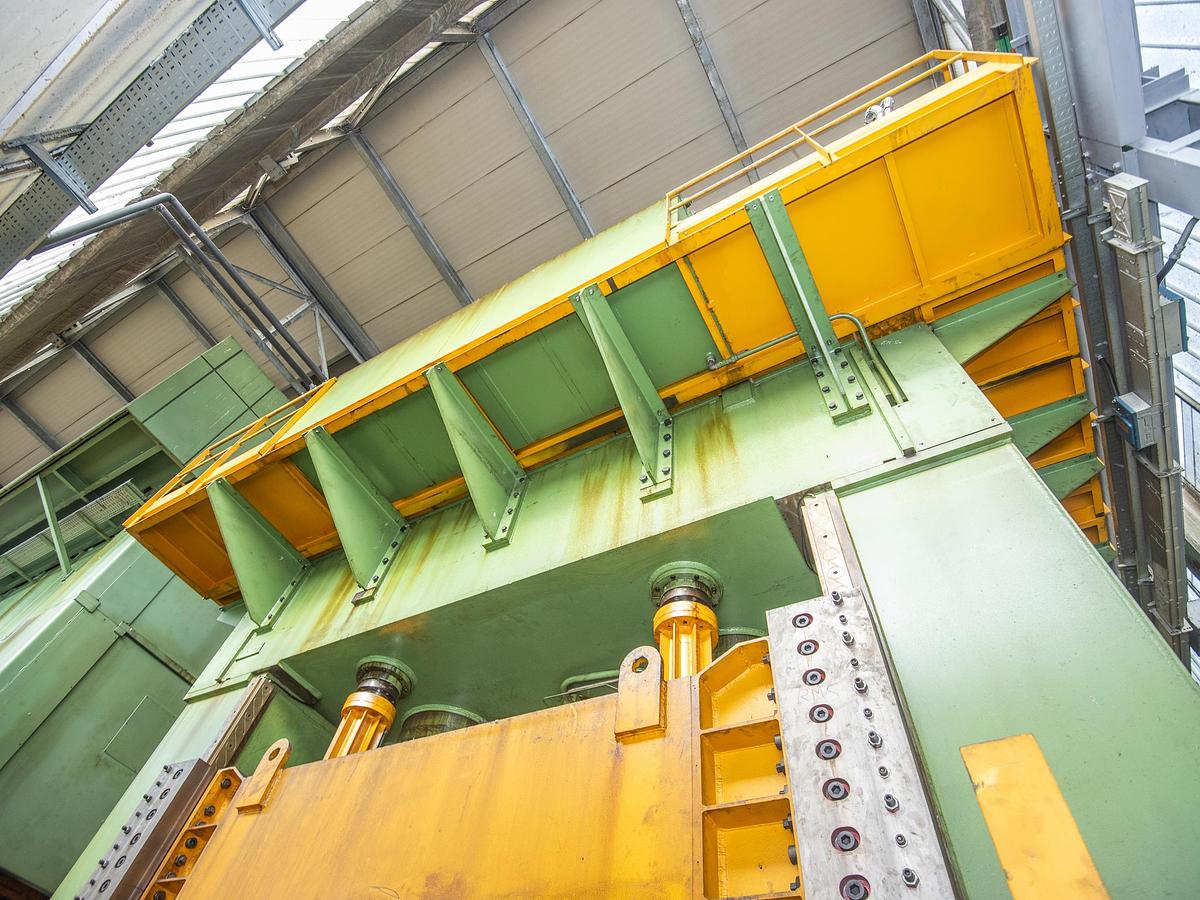

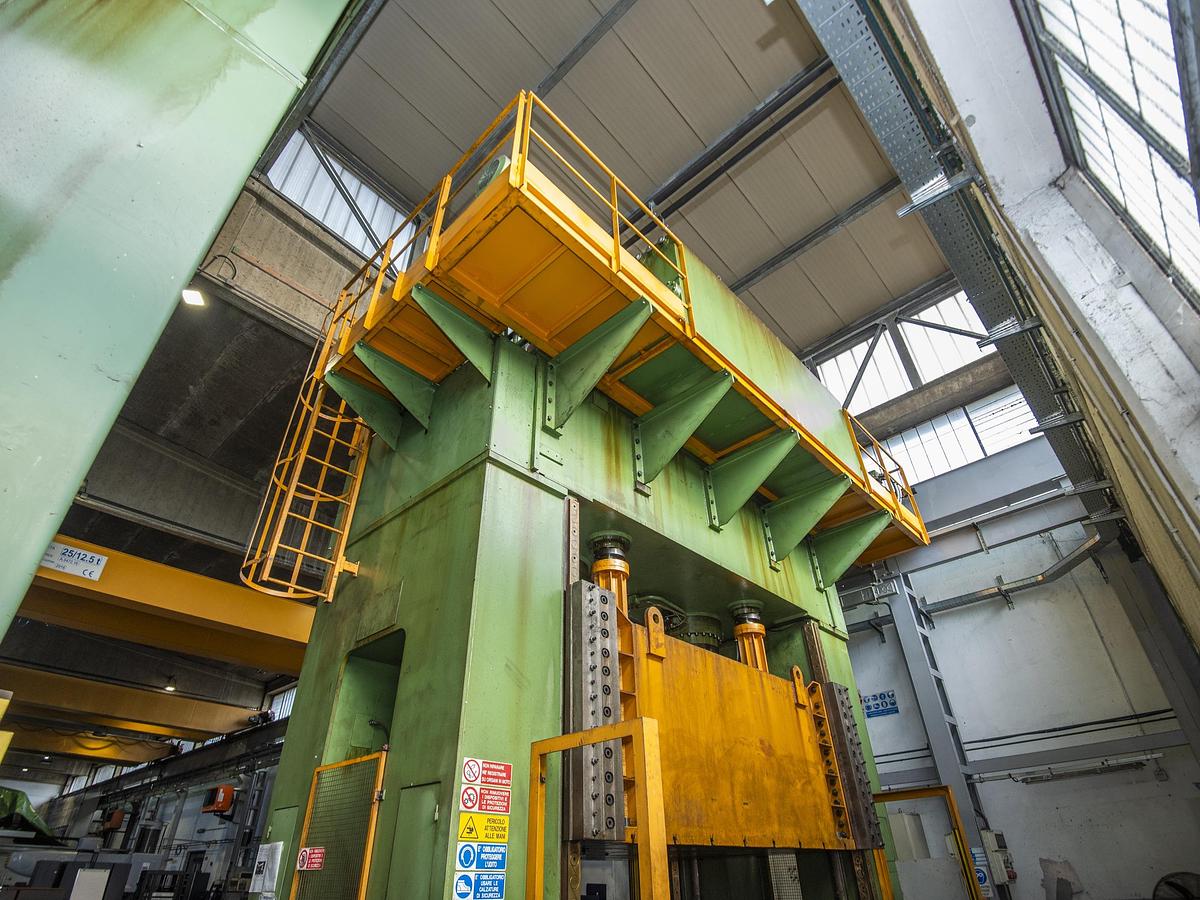

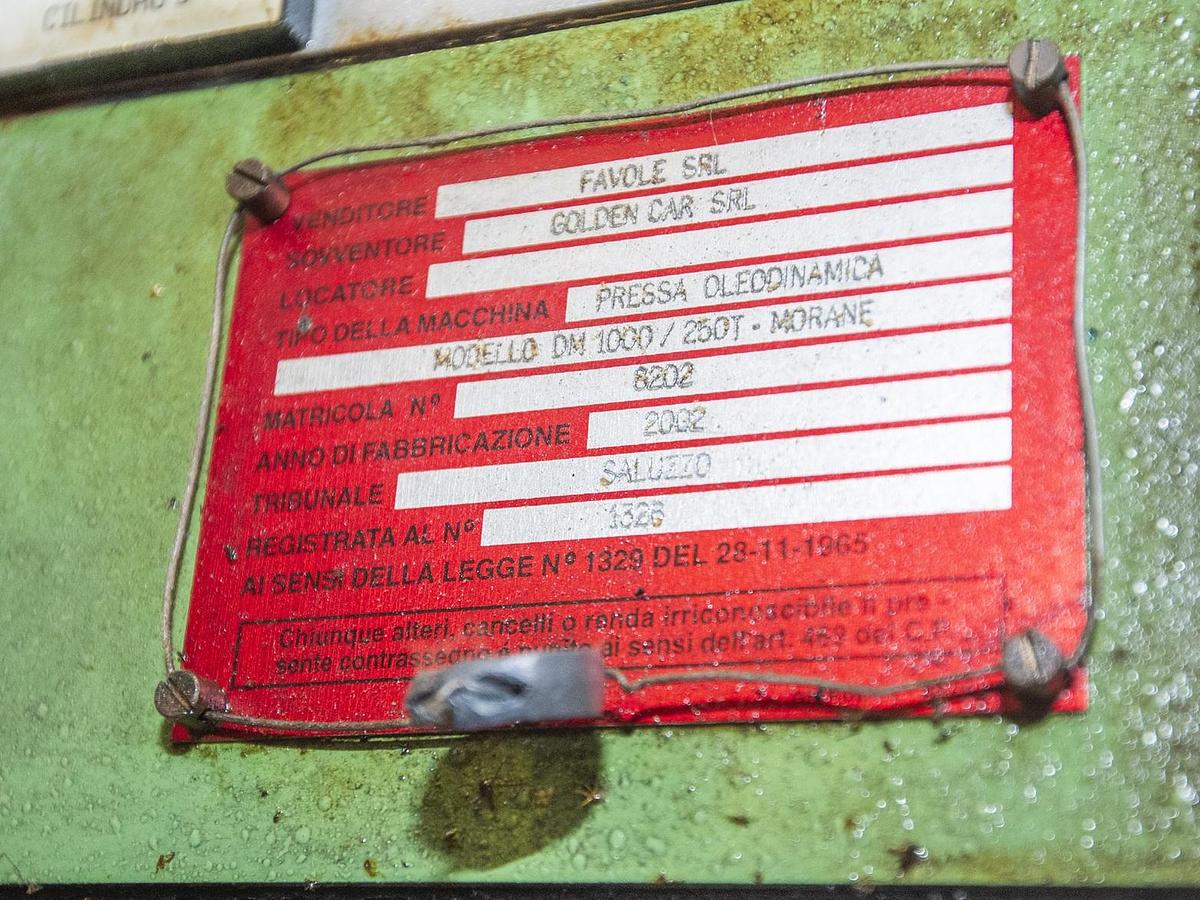

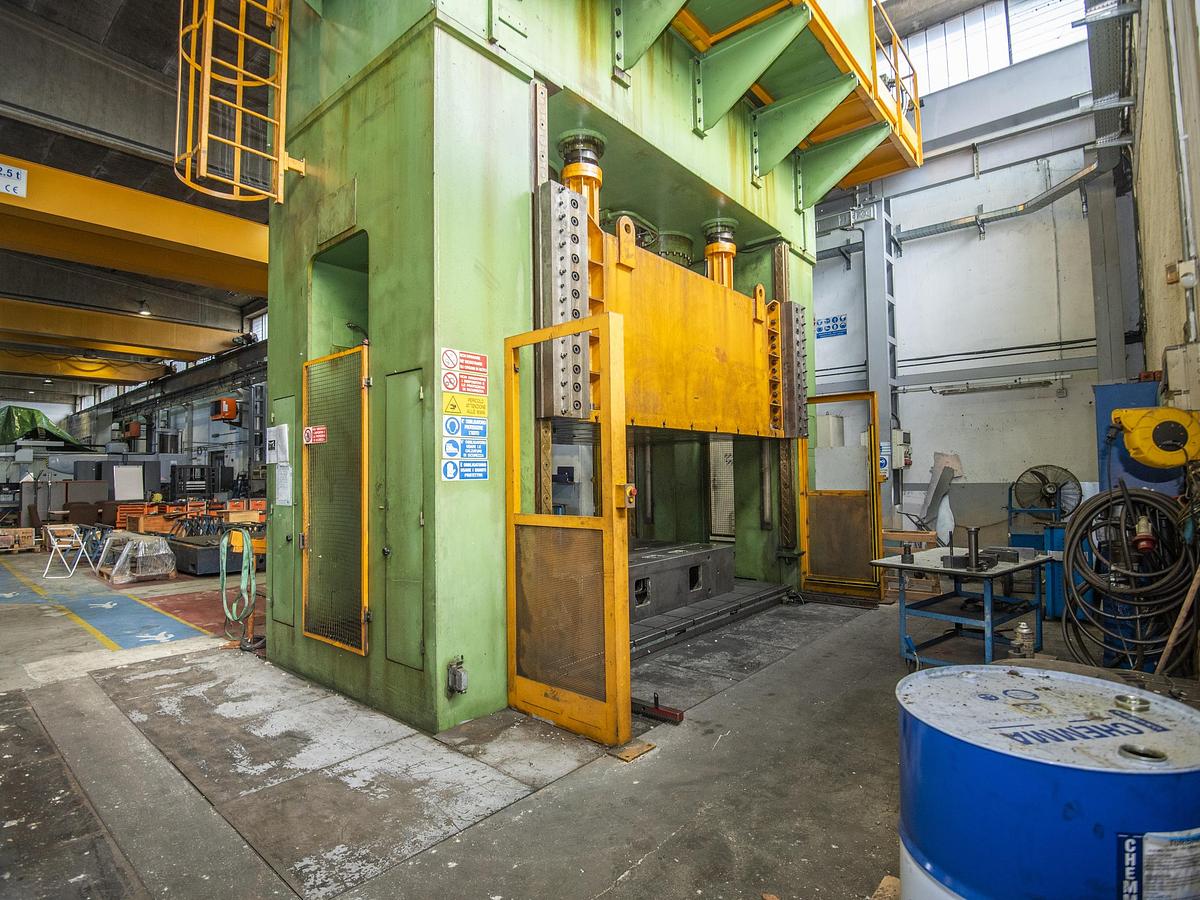

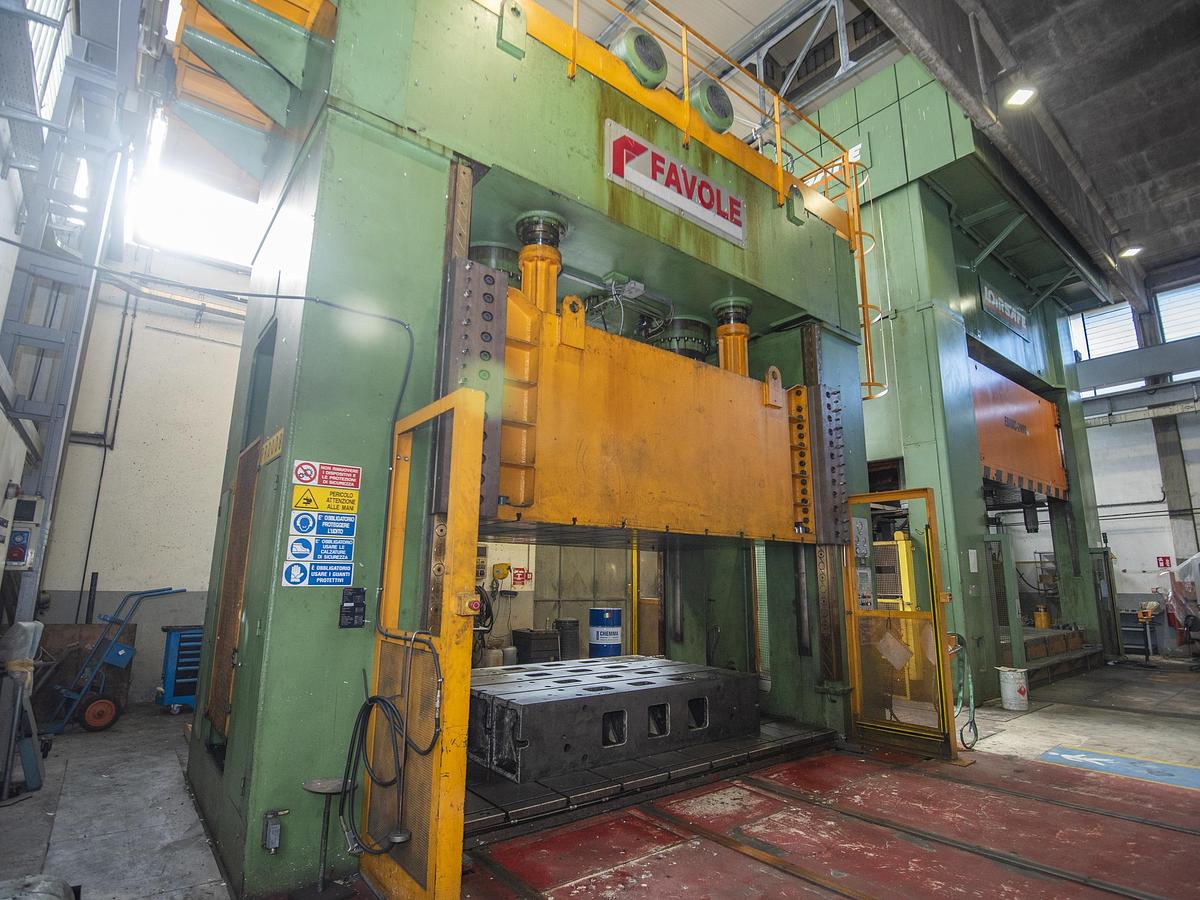

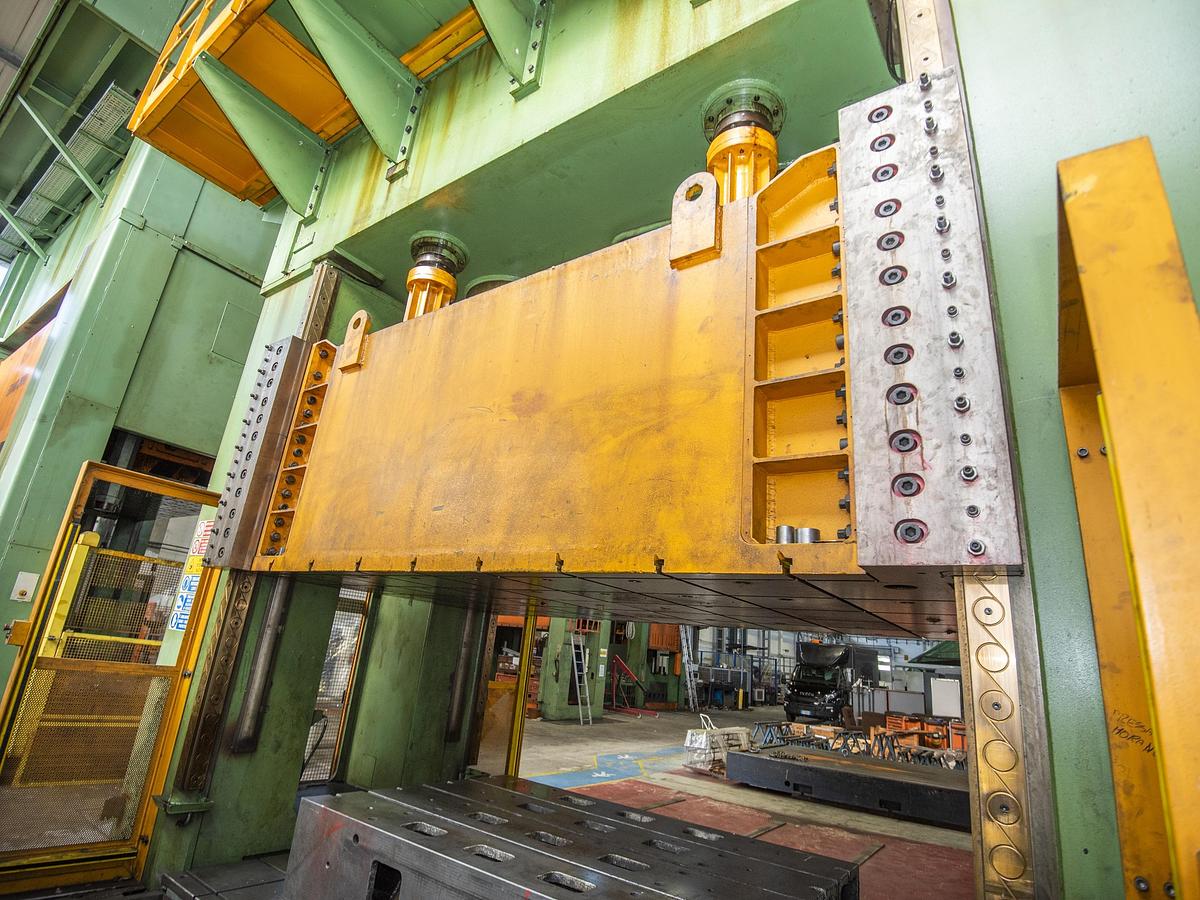

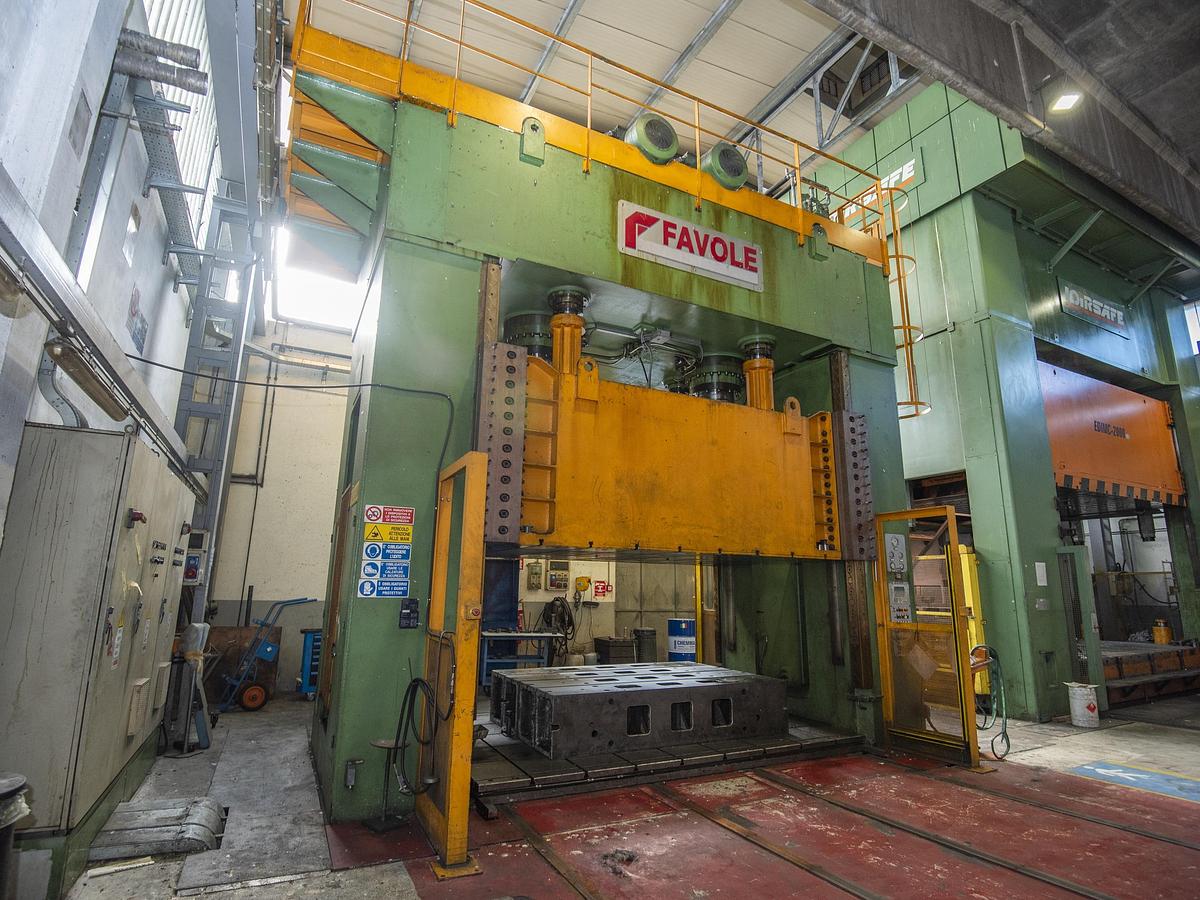

2002 FAVOLE DM 1000/250T HYDRAULIC PRESS
or
Call +31203500890
Specifications
| Manufacturer | FAVOLE |
| Model | DM 1000/250T |
| Year | 2002 |
| Condition | Used |
| Availability | Directly available |
| Owned by | PIPM Group |
| Adjustable nominal force | 1,000 Tons |
| Return nominal force | 180 Tons |
| Max blank-holder reaction force | 250 Tons |
| Upper moving table approach speed | 350 mm/s |
| Working speed (approach/pressing) | 0 ÷ 45 |
| Upper moving table return speed | 220 mm/s |
| Blank-holder return speed | 100 mm/s |
| Vertical daylight between open tables | 2,300 mm |
| Frontal daylight between uprights | 4,040 mm |

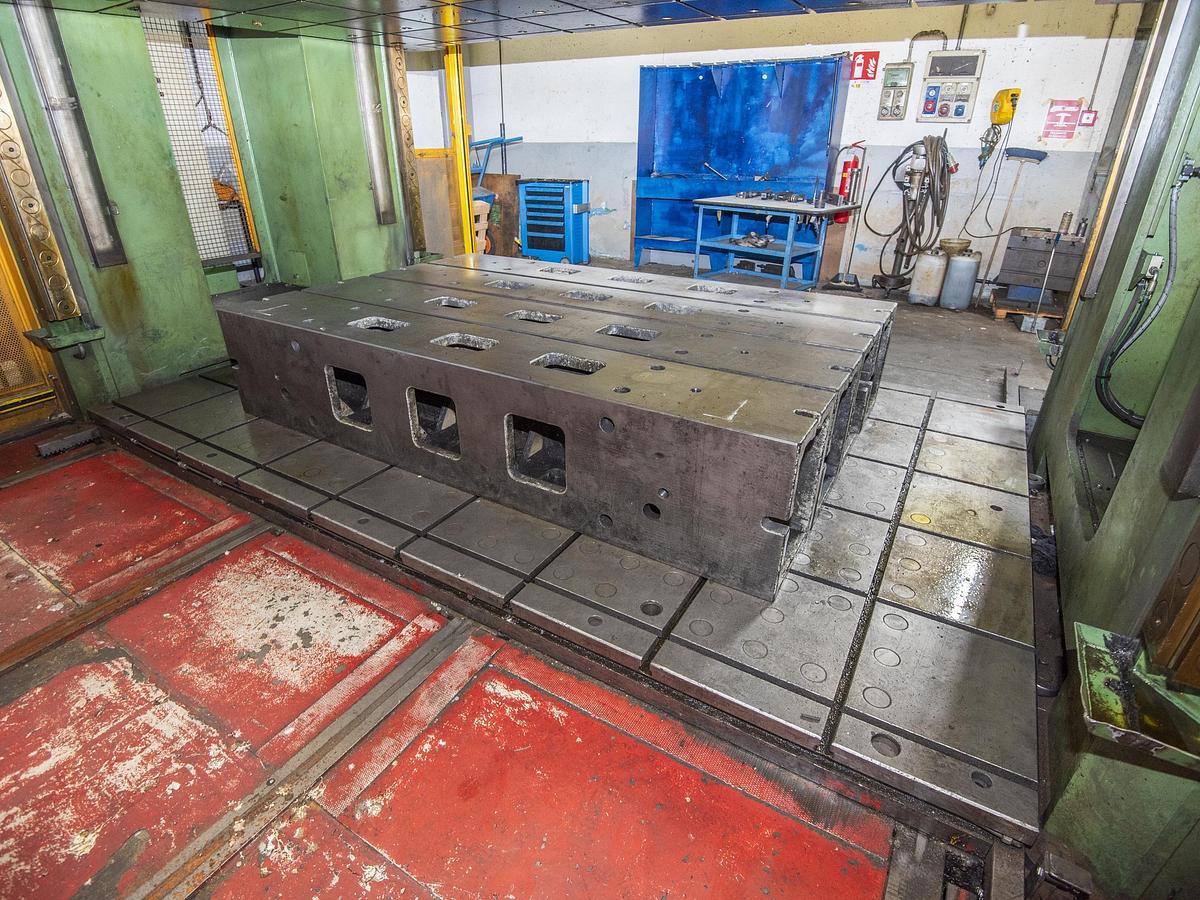

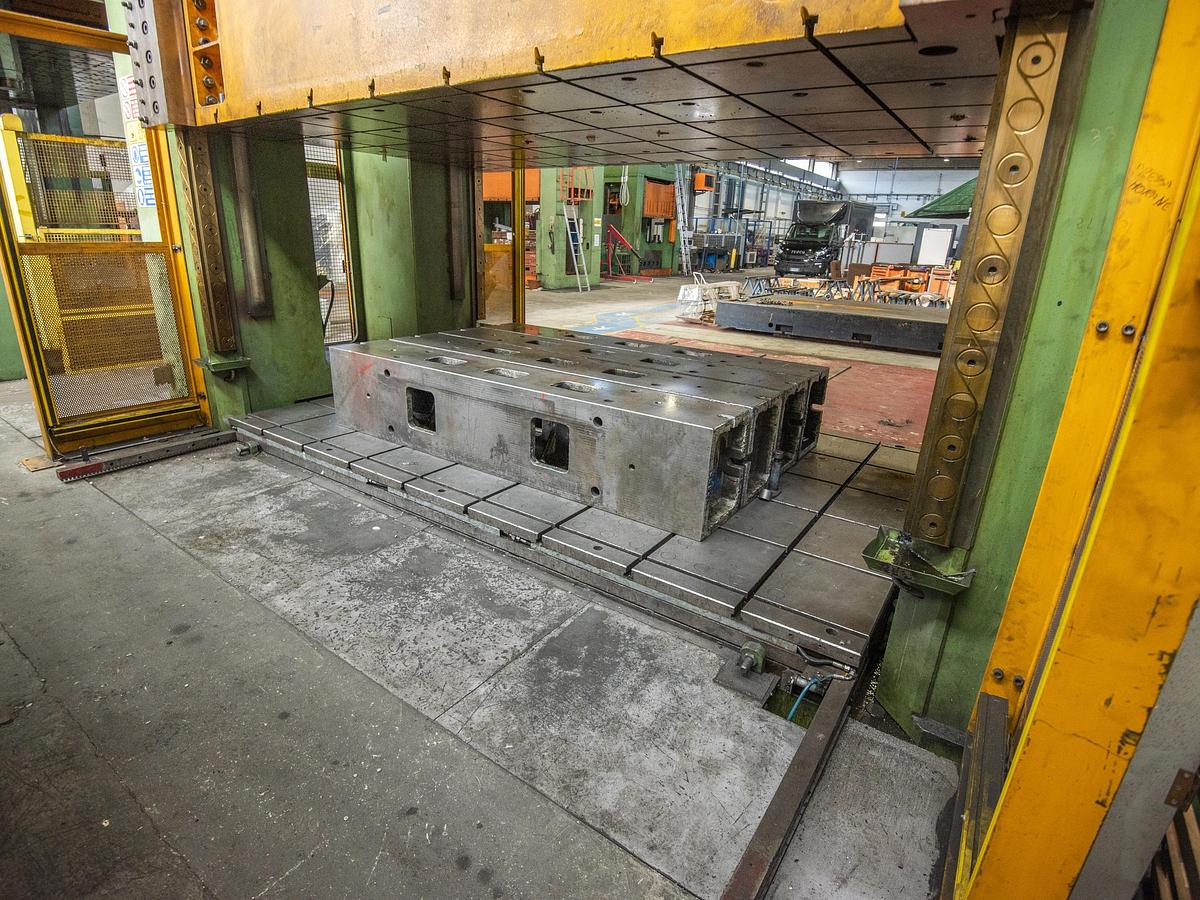

| Working table dimensions | 4,000 x 2,500 mm |
| Max die weight | 30,000 kg |
| Moving table stroke | 1,000 mm |
| Usable blank-holder stroke | 1,000 mm |
| Usable blank-holder table dimensions | 3,700 x 2,400 mm |
| Press width (frontal) | 6,000 mm |
| Press width (lateral) | 2,800 mm |
| Walkway width | 800 mm |
| Total press height | 10,600 mm |
| Max above-ground height | 7,200 mm |
| Pit depth | 3,400 mm |
Description
For sale: 2002 FAVOLE DM 1000/250T HYDRAULIC PRESS
