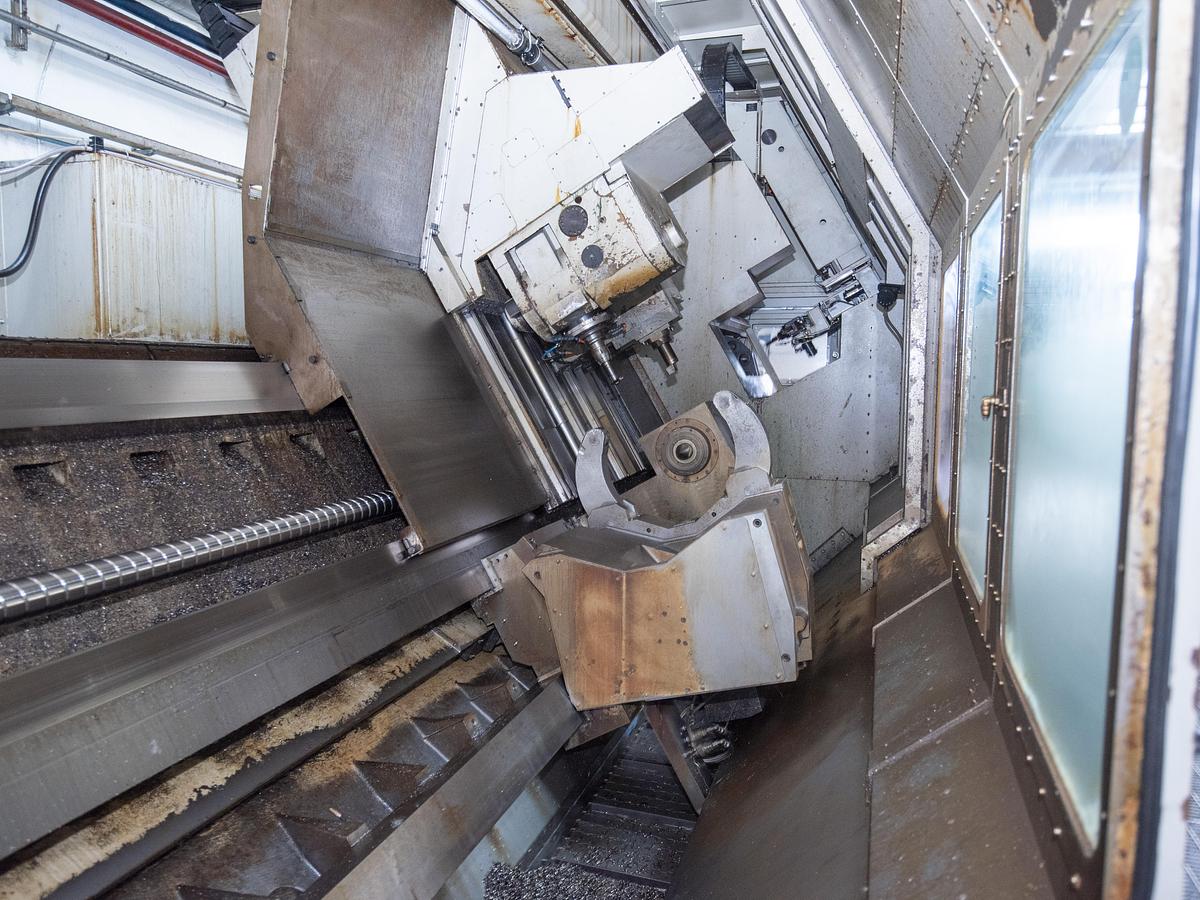

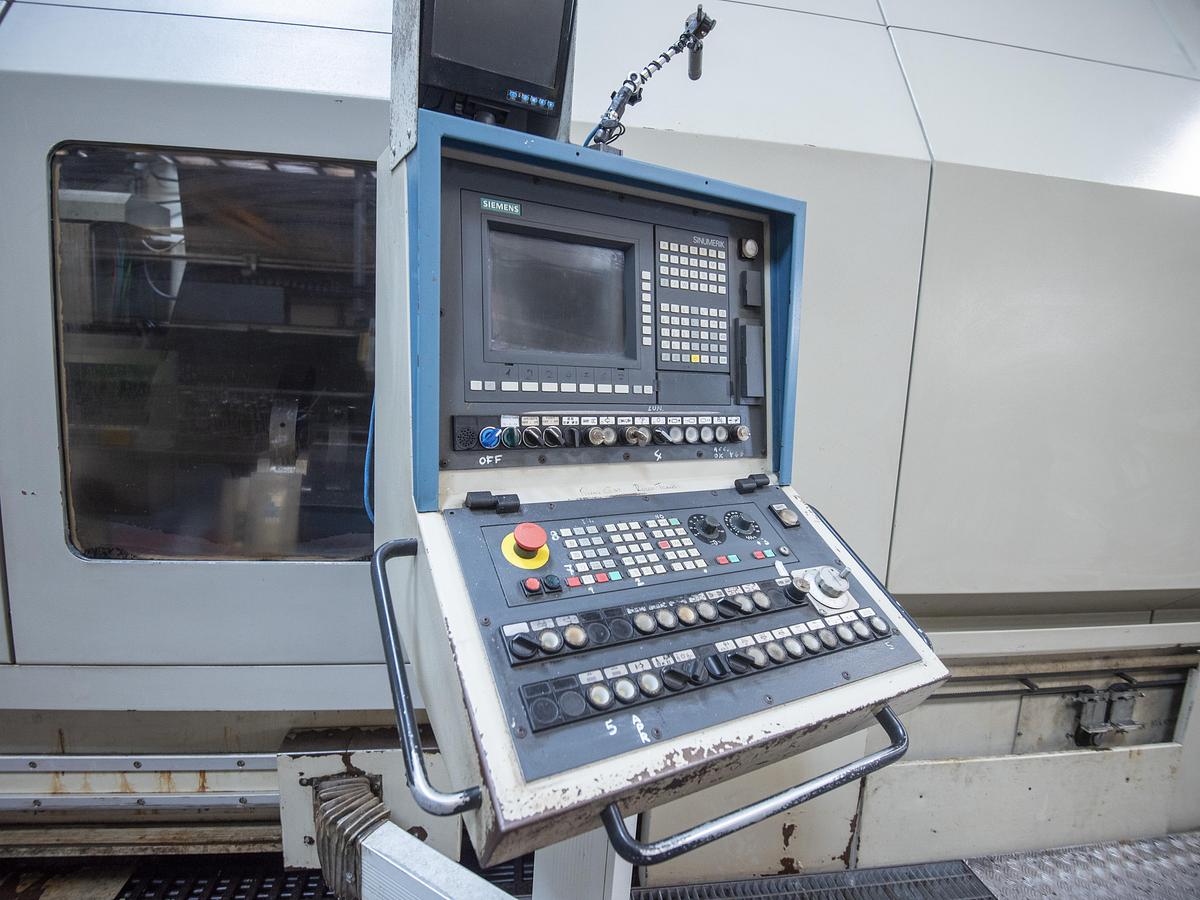

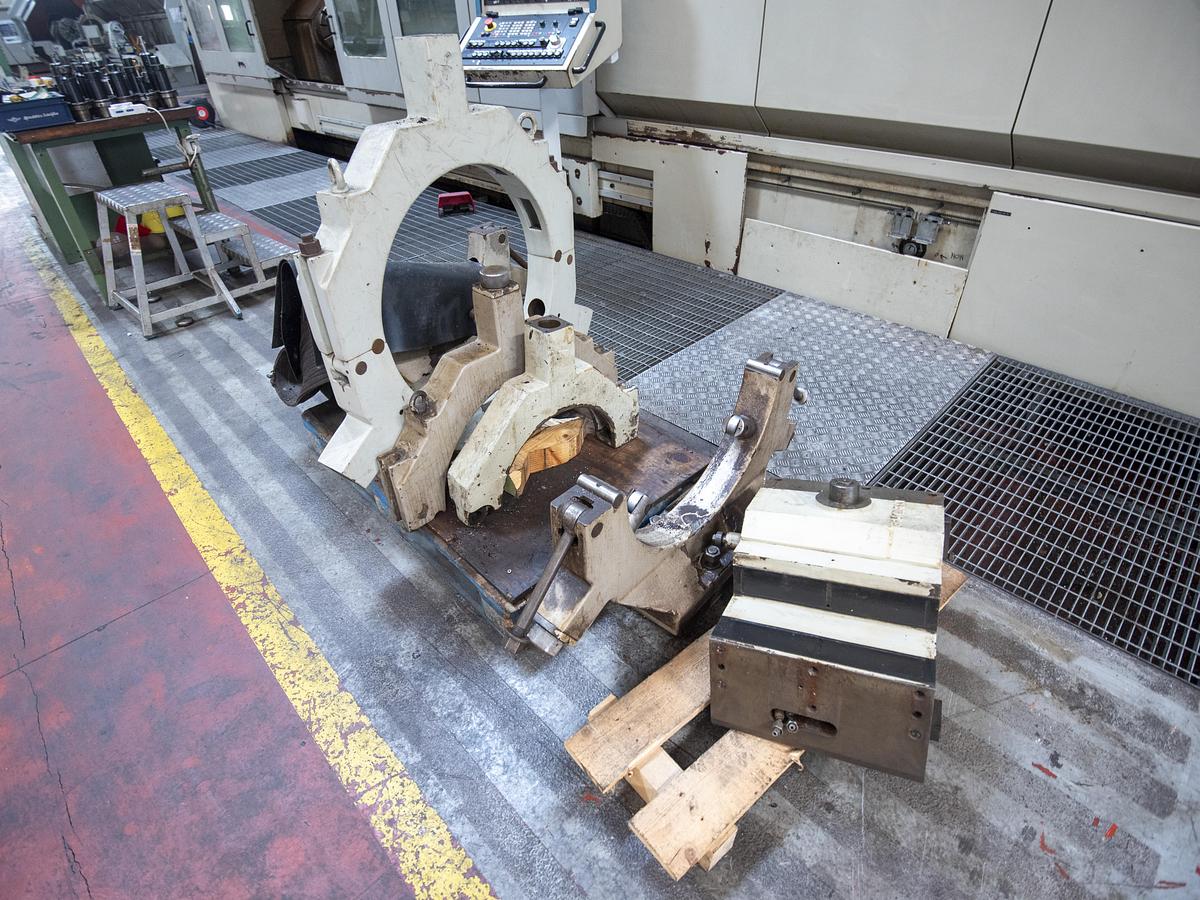

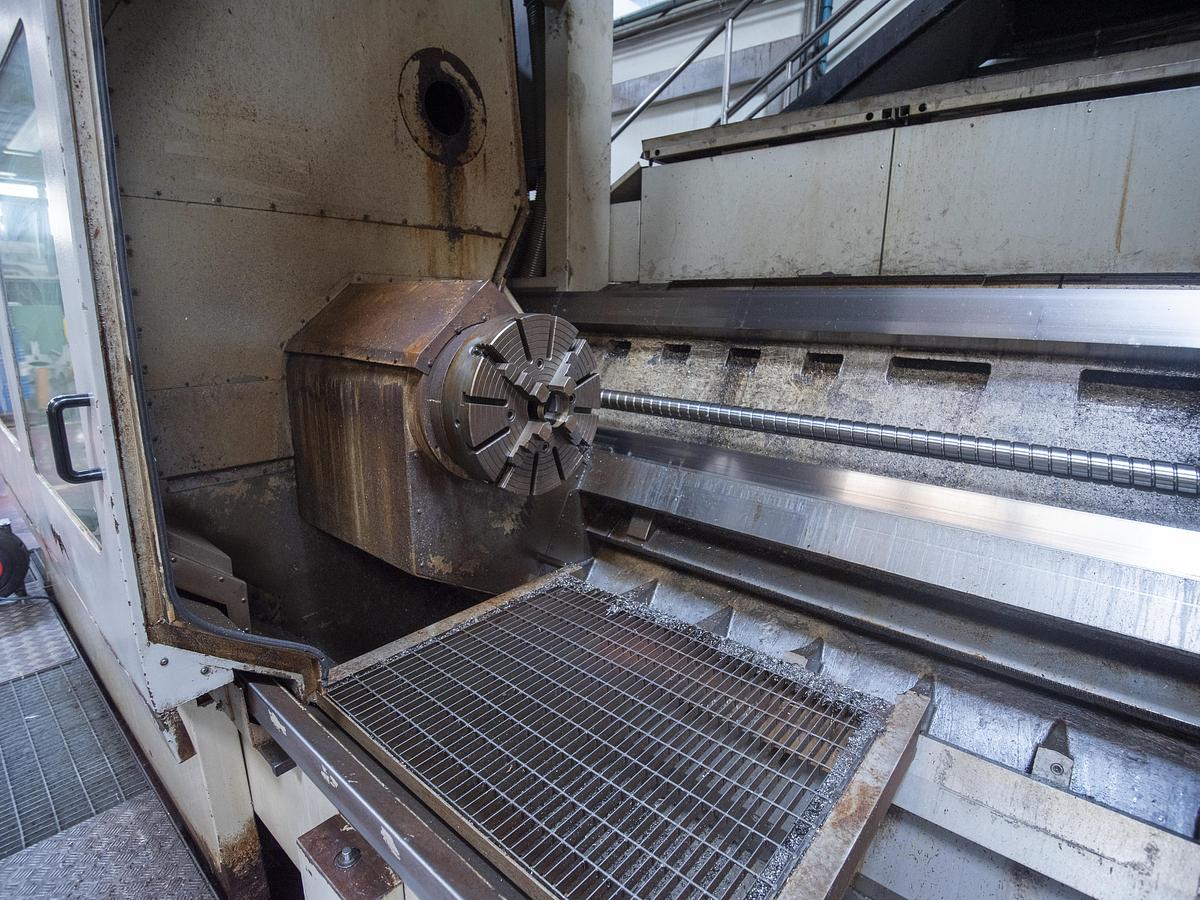

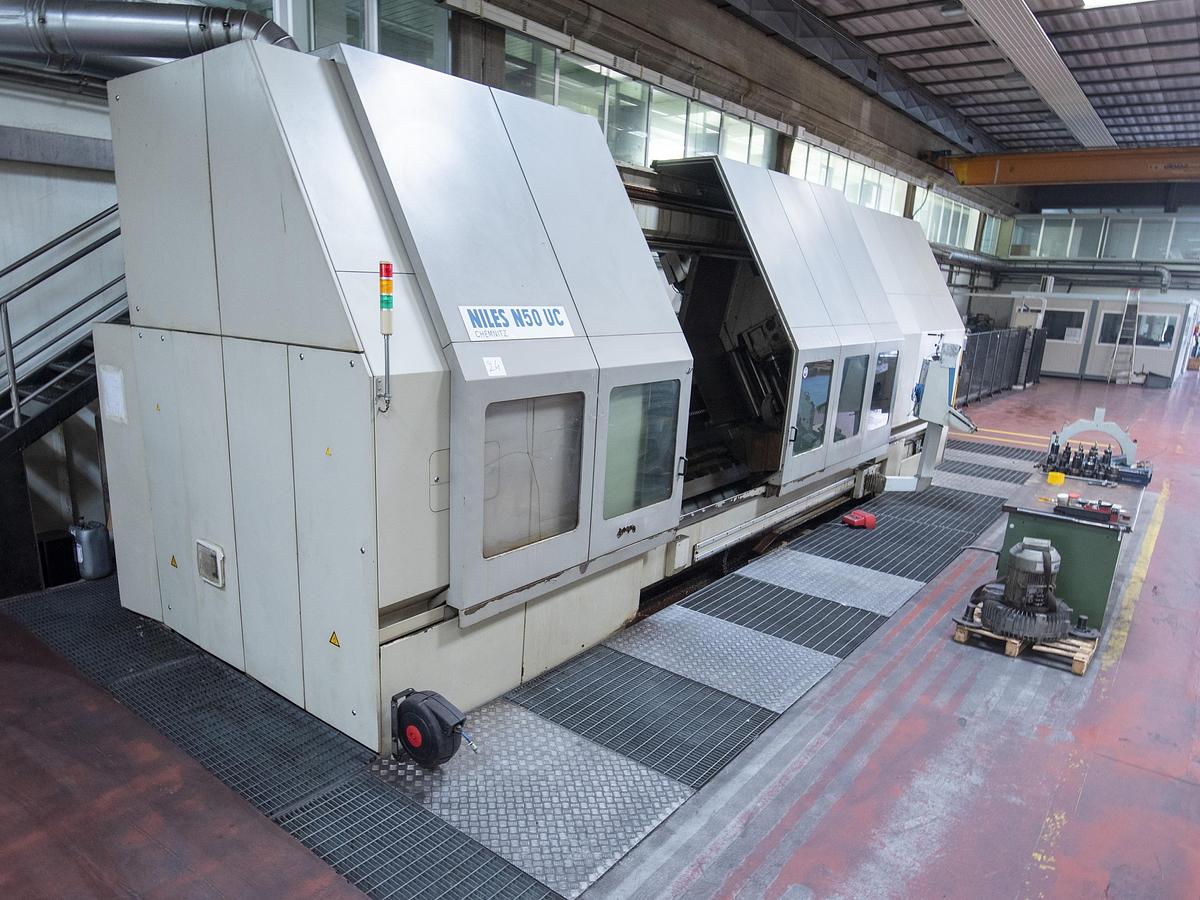

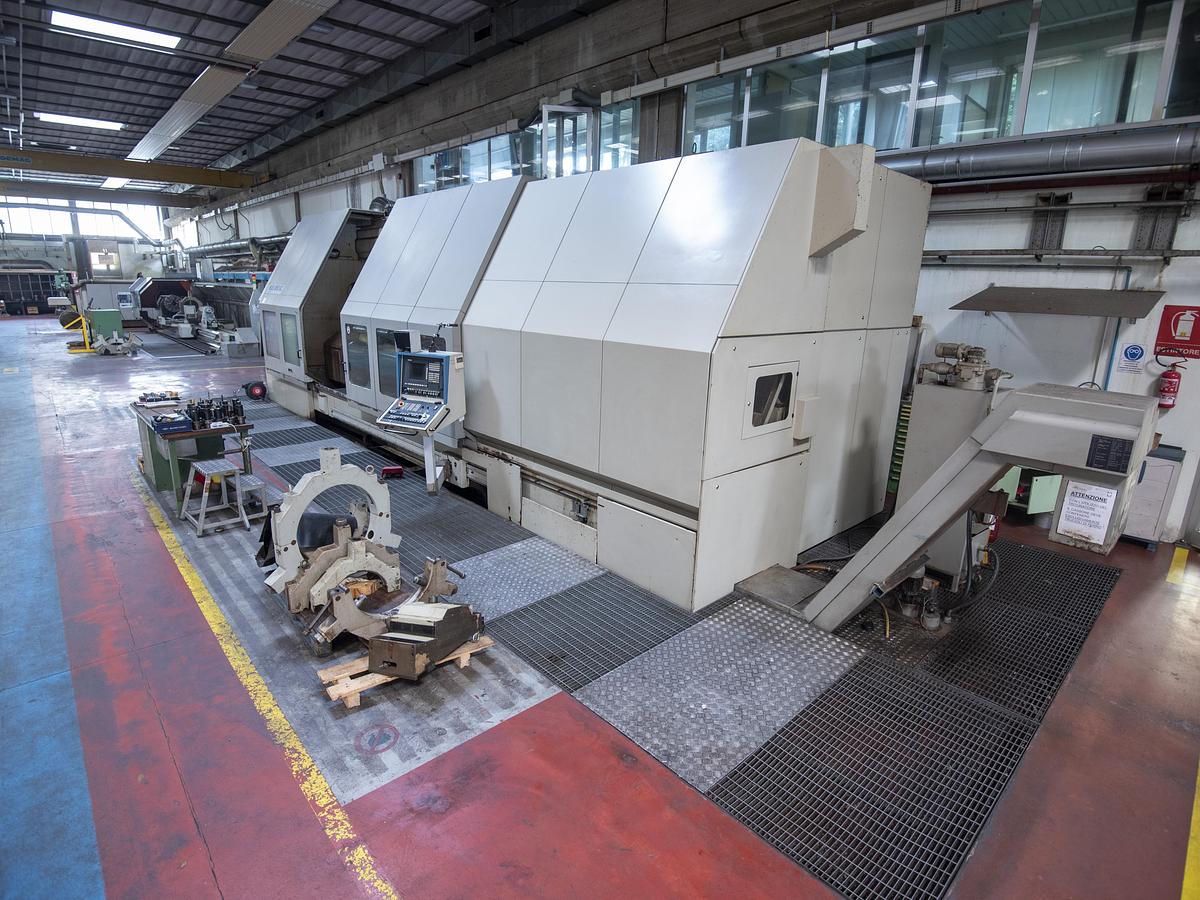

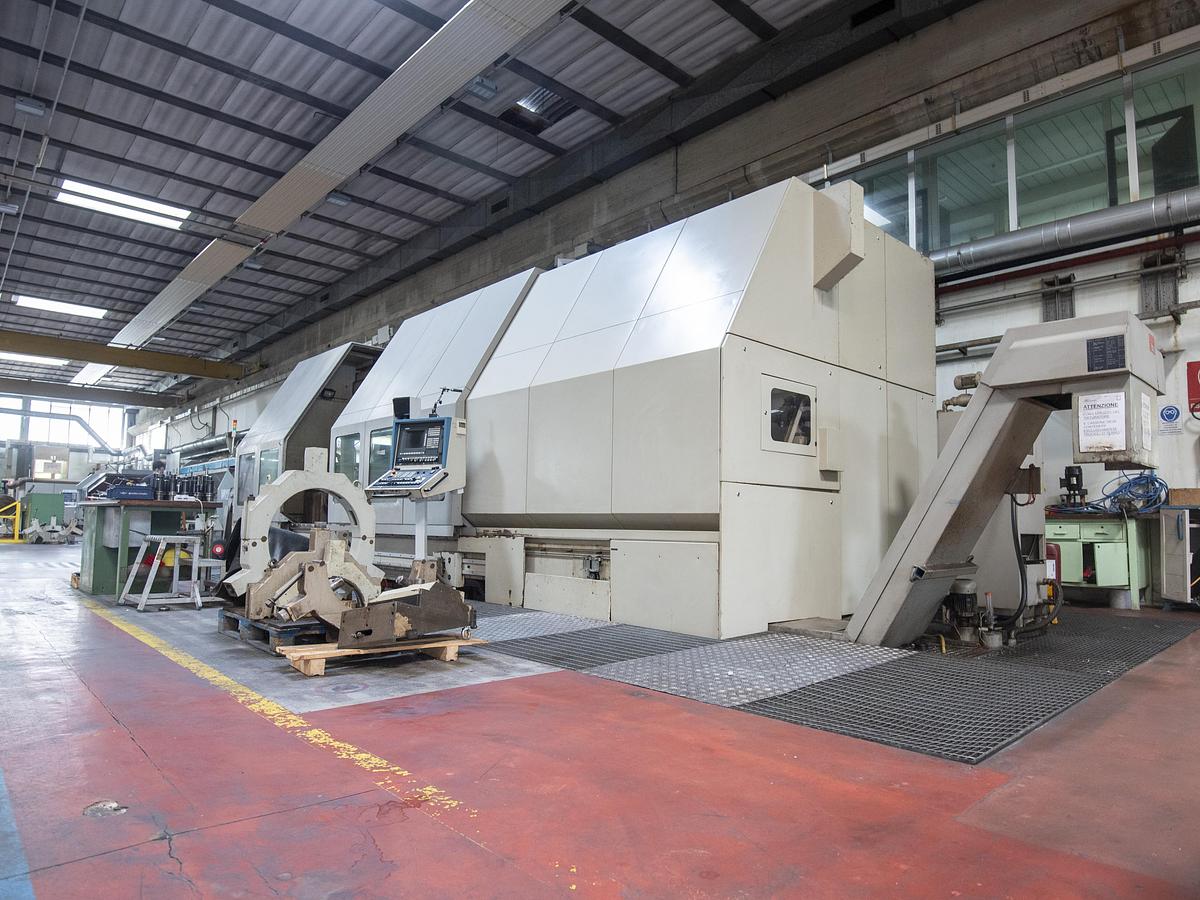

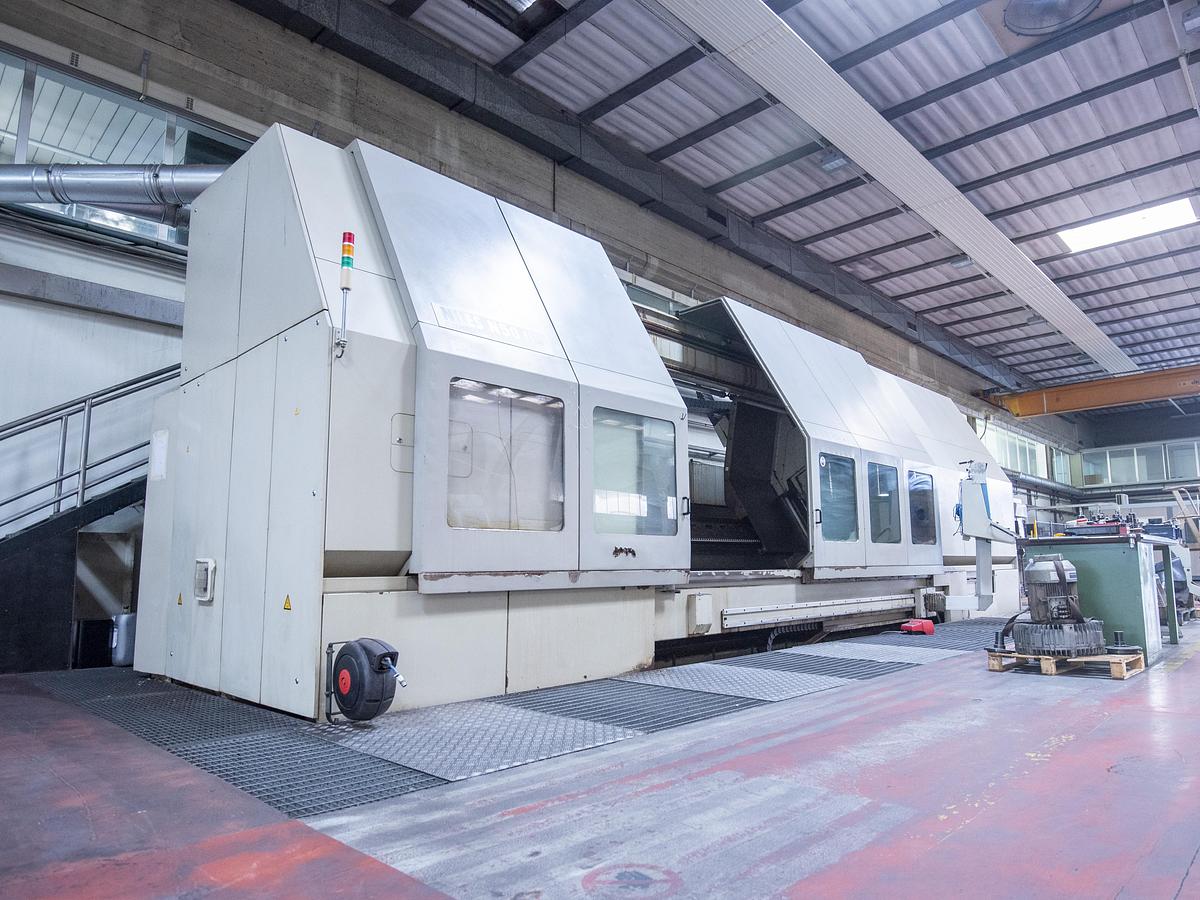

NILES SIMMONS N50UC CNC LATHE
or
Call +31203500890
Specifications
| Manufacturer | NILES SIMMONS |
| Model | N50UC |
| Condition | Used |
| Availability | Directly available |
| Owned by | PIPM Group |
| Diameter on the bench | 940 mm |
| Turning diameter over the entire length | 900 mm |
| Distance between centers | 5200 mm |
| X1 | 520 mm (tool1 +12 +532 // tool2 -25 +495) |
| X2 | 671 mm (+19 +690) |
| Z | 5185 mm (+115 +5300) |
| Y | 350 mm (-155 +195) |
| W | 5075 mm (+110 +5175) |
| Tilting milling head | + - 90° |
| Torque | 3000 Nm |
| Axial force | 60 Kn |
| Chain tool change | 48-place HSK 100° |
| Spindle taper | ASA 15 |
| Bar passaging | 204 mm |
| Tailstock | CM6 |
| Tailstock diameter | 195 mm |
| Tailstock stroke | 285 mm |
| Automatic rest | Autoblock 50-450 |
| Dimensions | 10820 x 3381 x 3600 mm |
| Weight | 39.000 kg |
Description
For sale: NILES SIMMONS N50UC CNC LATHE
Also available:
- 2005 FPT RONIN M60 MOVING COLUMN MILLING MACHINE
- 2008 JOBS LINX COMPACT 30 5-AXIS GANTRY MILLING MACHINE
- 2002 FAVOLE DM 1000/250T HYDRAULIC PRESS
- 2004 LOIRE SAFE EDIMC 2000 HYDRAULIC PRESS
- MOSSINI PO/2M 400 HYDRAULIC PRESS
- 1995 MOSSINI PO/2M/P 250 OLEODINAMIC PRESS
- 2019 MECOF CS 10140 FLOOR TYPE MILLING MACHINE
- 2018 FPT VERUS CNC Boring Milling Machine
- 2006 SACHMAN MP212 Horizontal Floor Type Boring Milling Machine
- FPT SPAZIO 20 Bed Type Milling Machine
- MECOF CR15 Bed Type Milling Machine
For more detailed machine information, output and specifications, to schedule an on-site inspection and/or direct sale price quotations please contact us via sales@assetsforsale.com. The machine's availability is subject to ongoing private treaty.
* Please note that this description has been translated automatically. The information in this listing is only indicative and is subject to change at any time without notice. Contact us for further information.
