2014 FONG'S ECO-8-D1T single l-shape full stainless steel tubular HT fabric dyeing installation
Specifications
| Manufacturer | FONG'S |
| Model | ECO-8-D1T |
| Year | 2014 |
| Condition | Used |

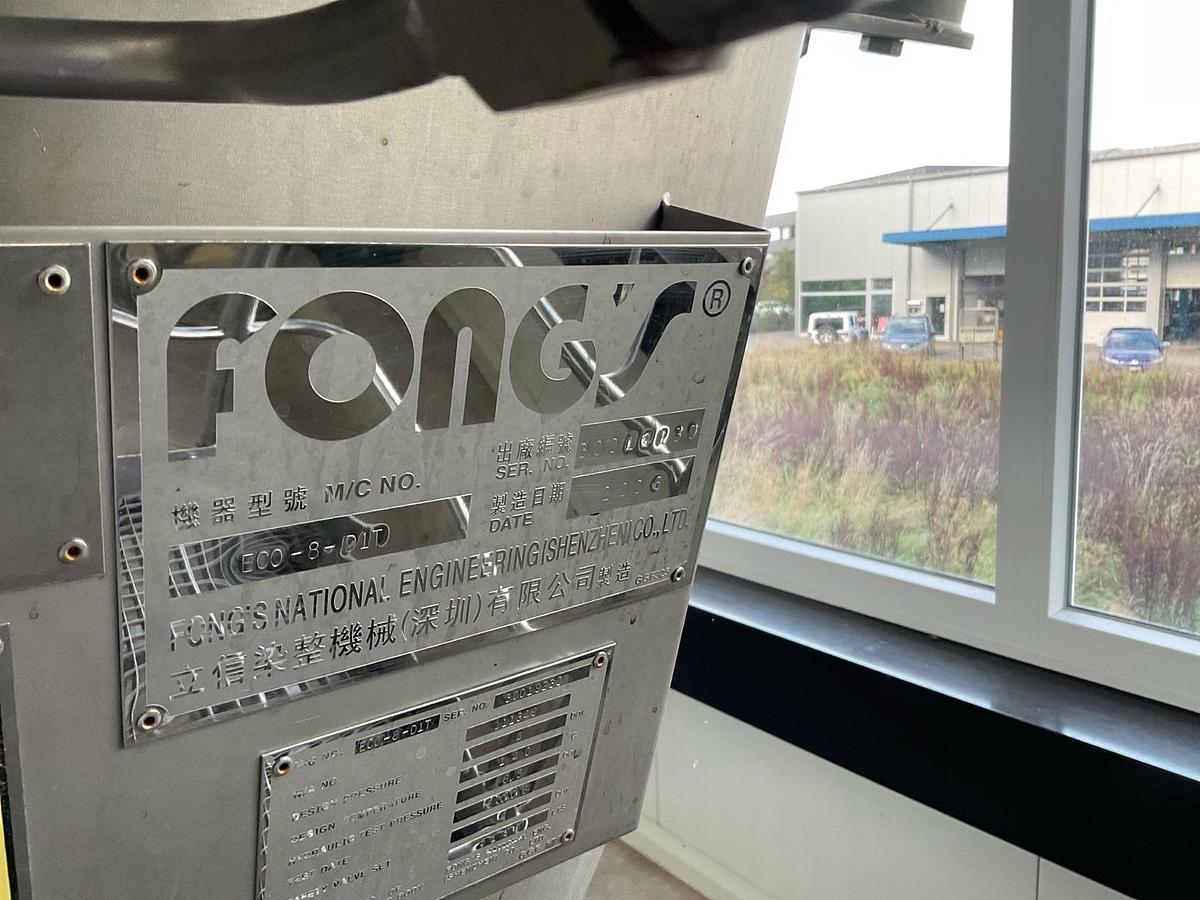

| Serial Number | 39032499-FF01 and 30019230-FF02 |
| Availability | Directly available |
| Owned by | PIPM Group |
Description
For sale: 2014 FONG'S ECO-8-D1T single l-shape full stainless steel tubular HT fabric dyeing installation > modern and well-maintained textile finishing, dyeing and laminating machines and related equipment (e.g. BENNINGER, KUSTERS, MONFORTS, NOSEDA, FONG etc.) due to the complete plant closure of Schoeller Textiles AG in Sevelen (near the border of Liechtenstein) in Switzerland.

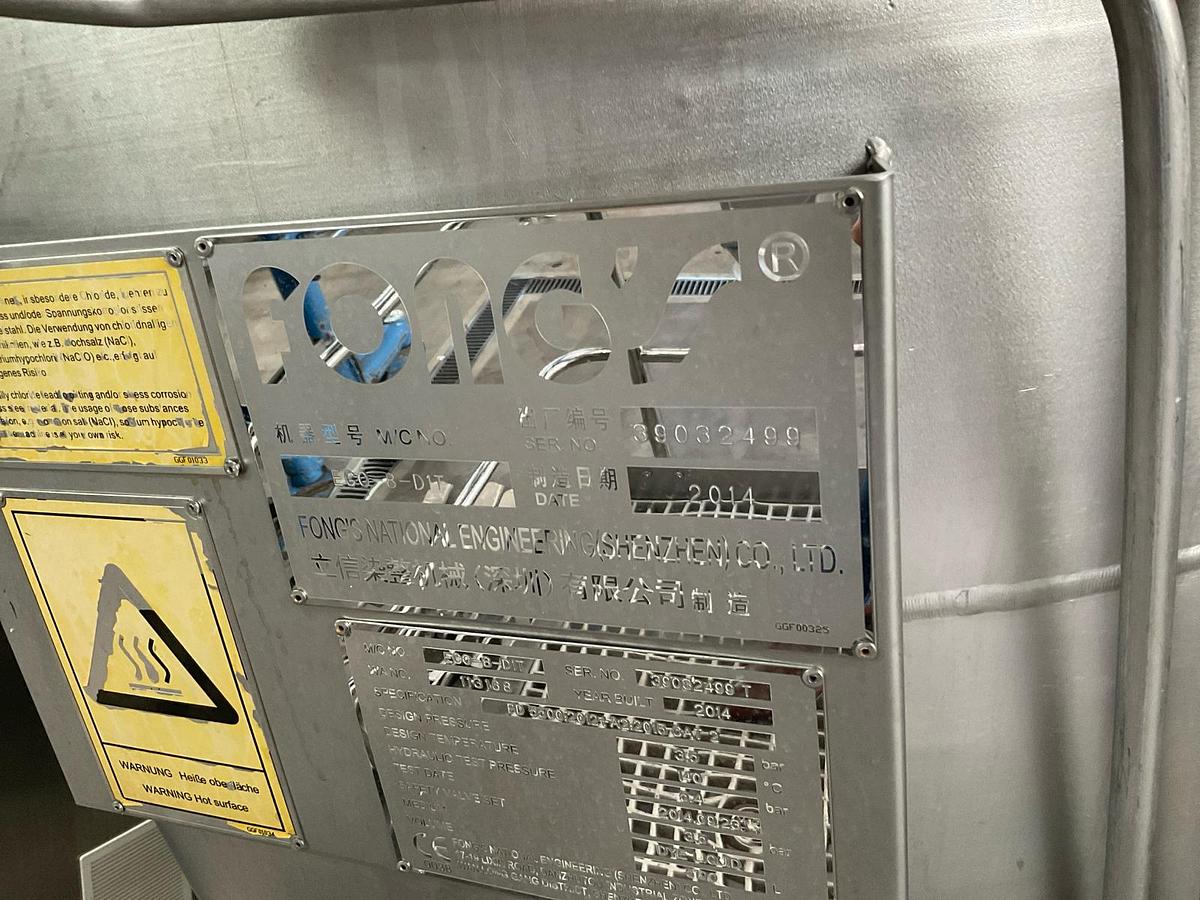

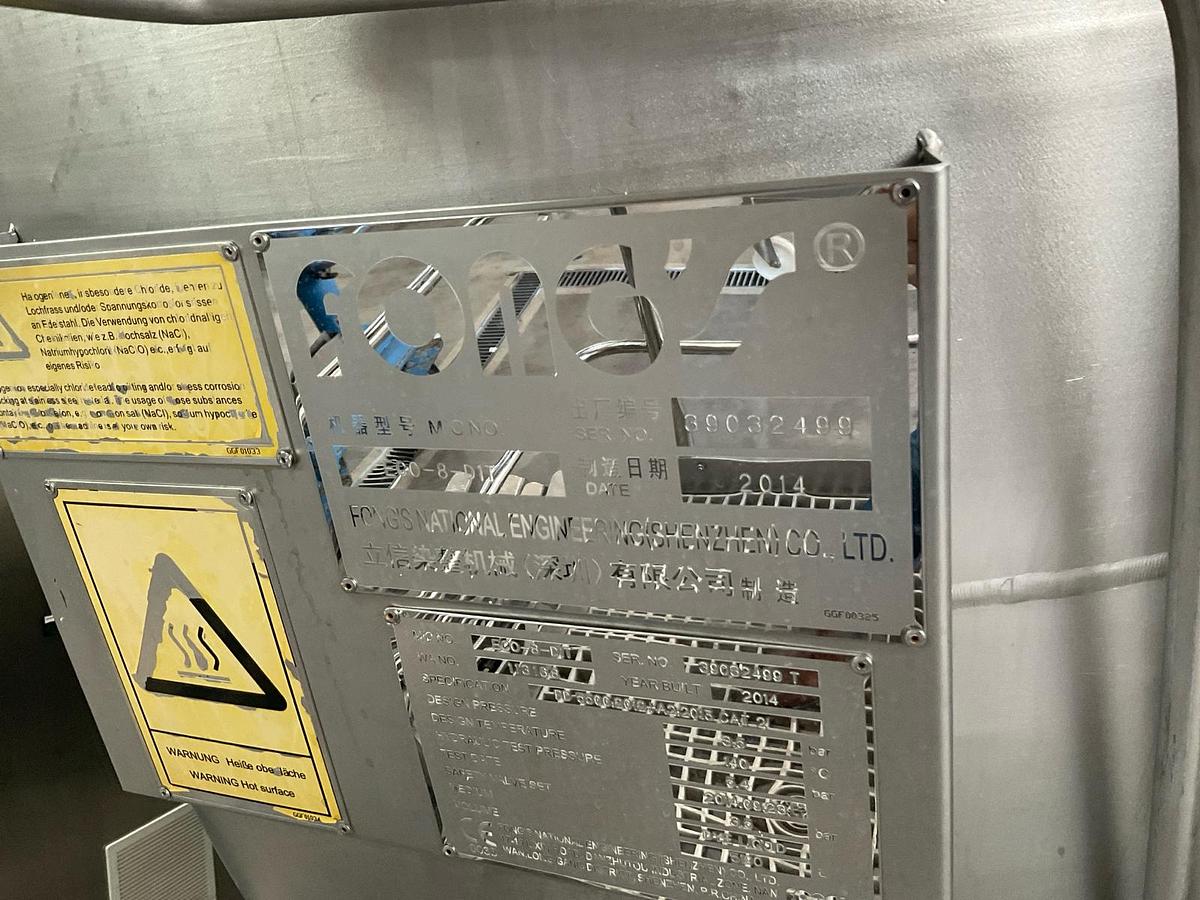

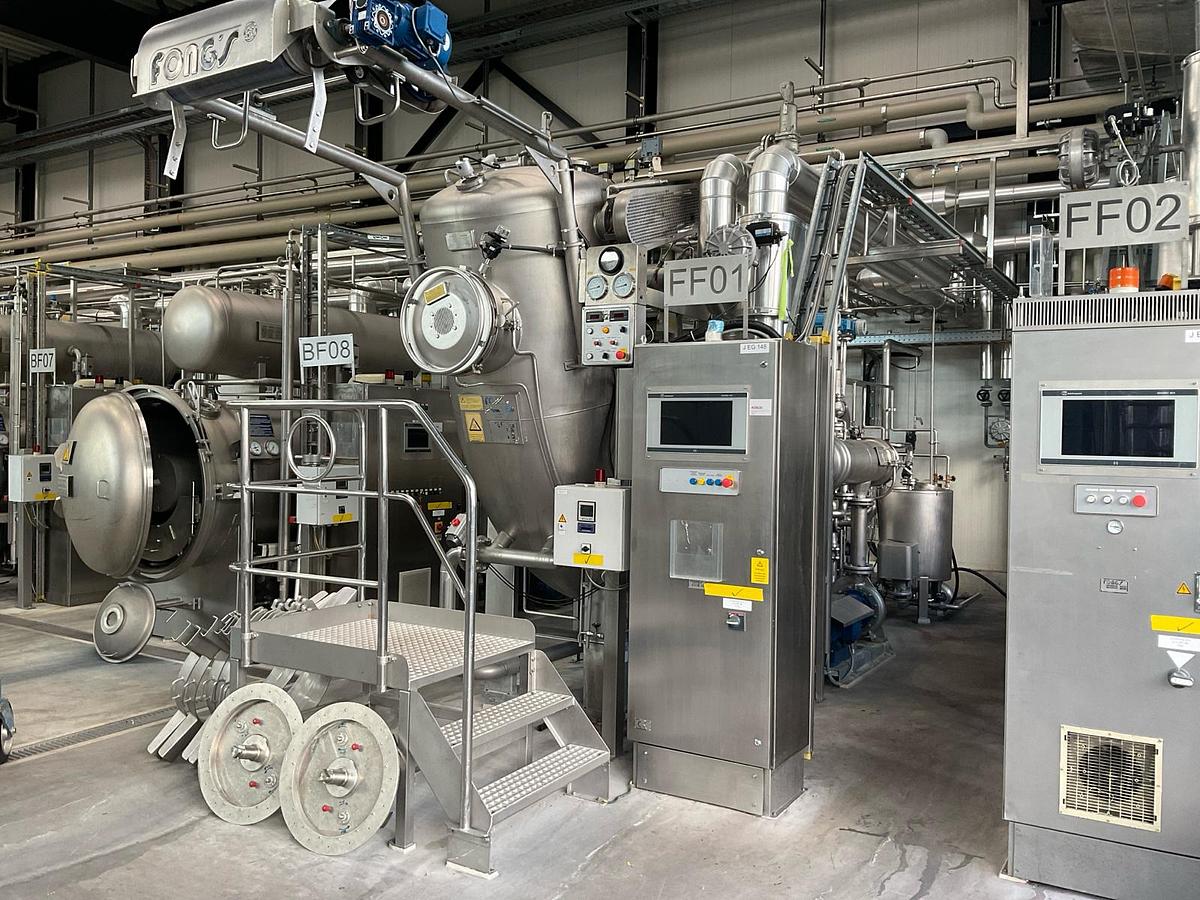

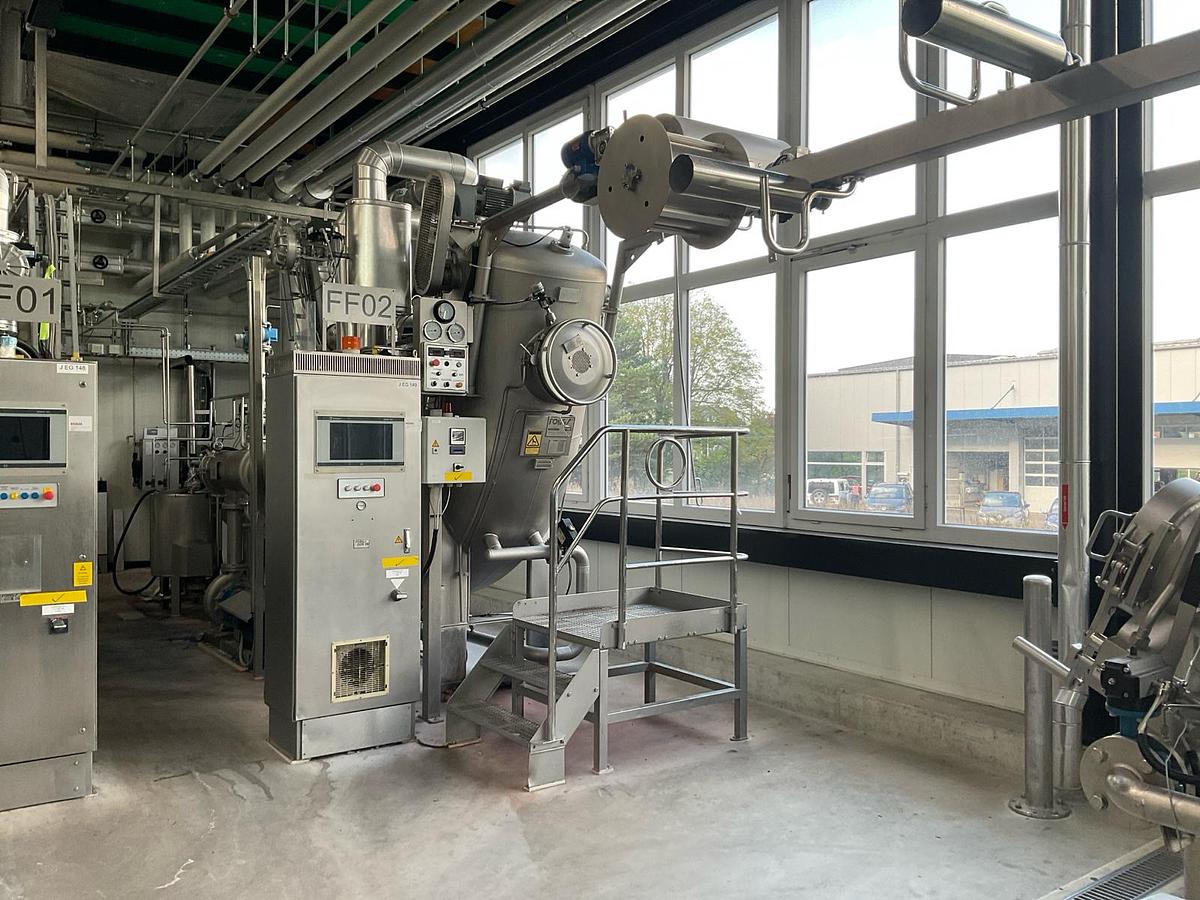

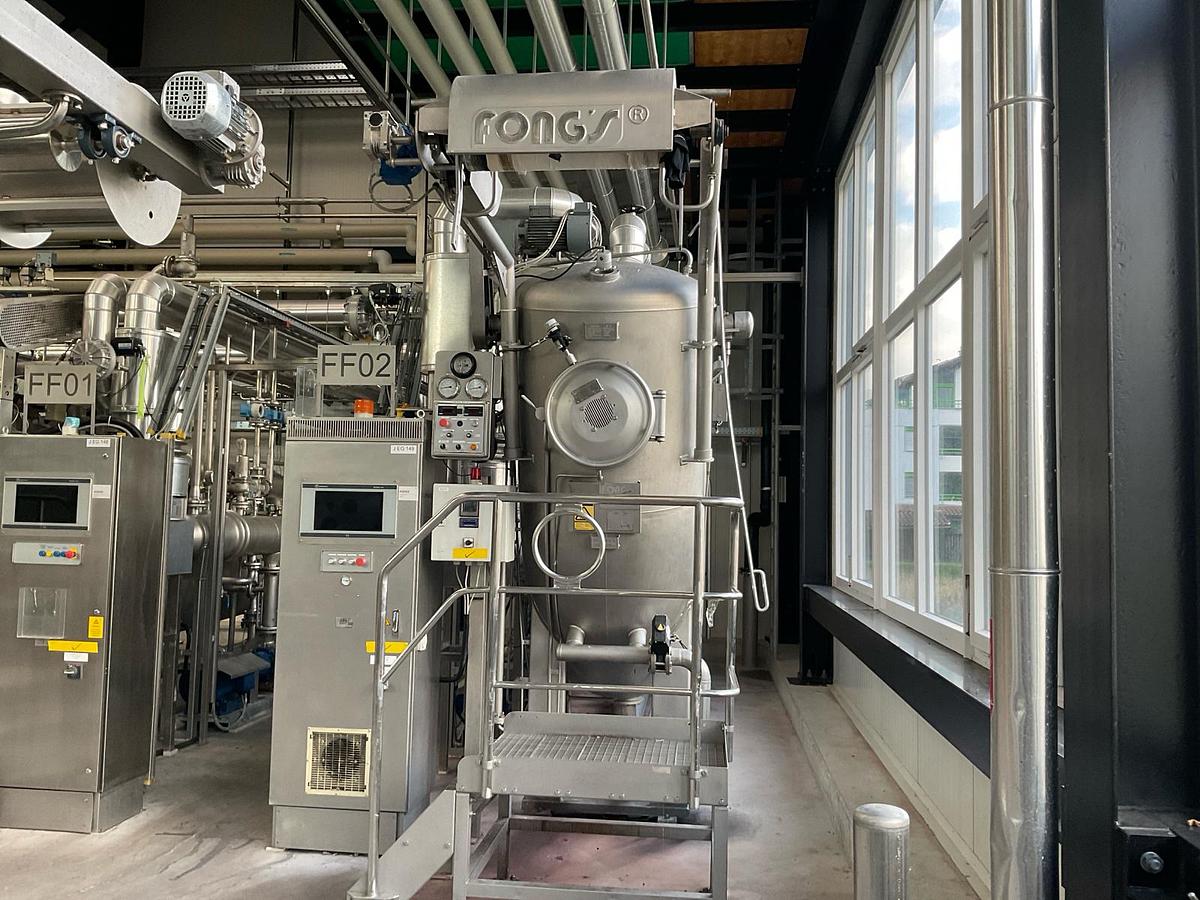

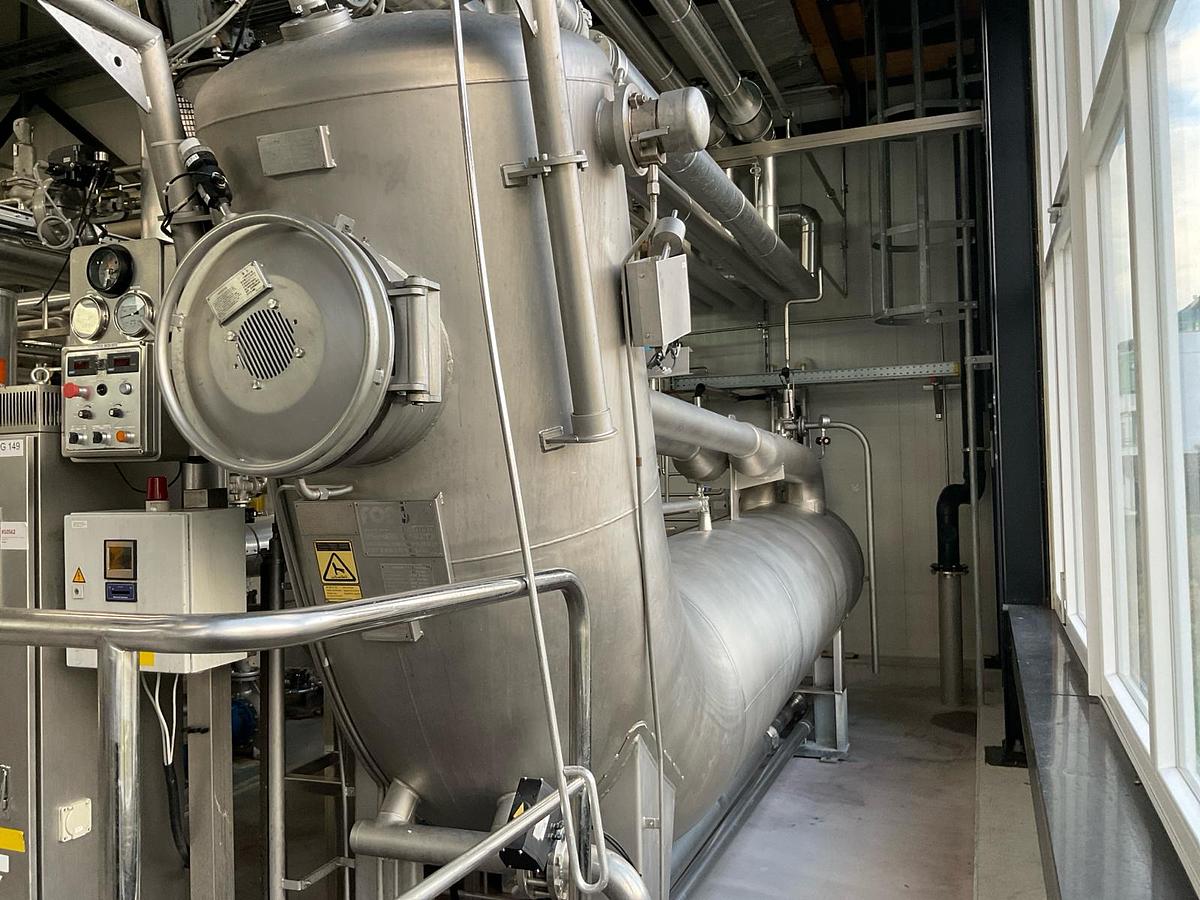

2014 Fong’s ECO-8-D1T single l-shape full stainless steel tubular HT fabric dyeing installation (serial number 39032499-FF01):

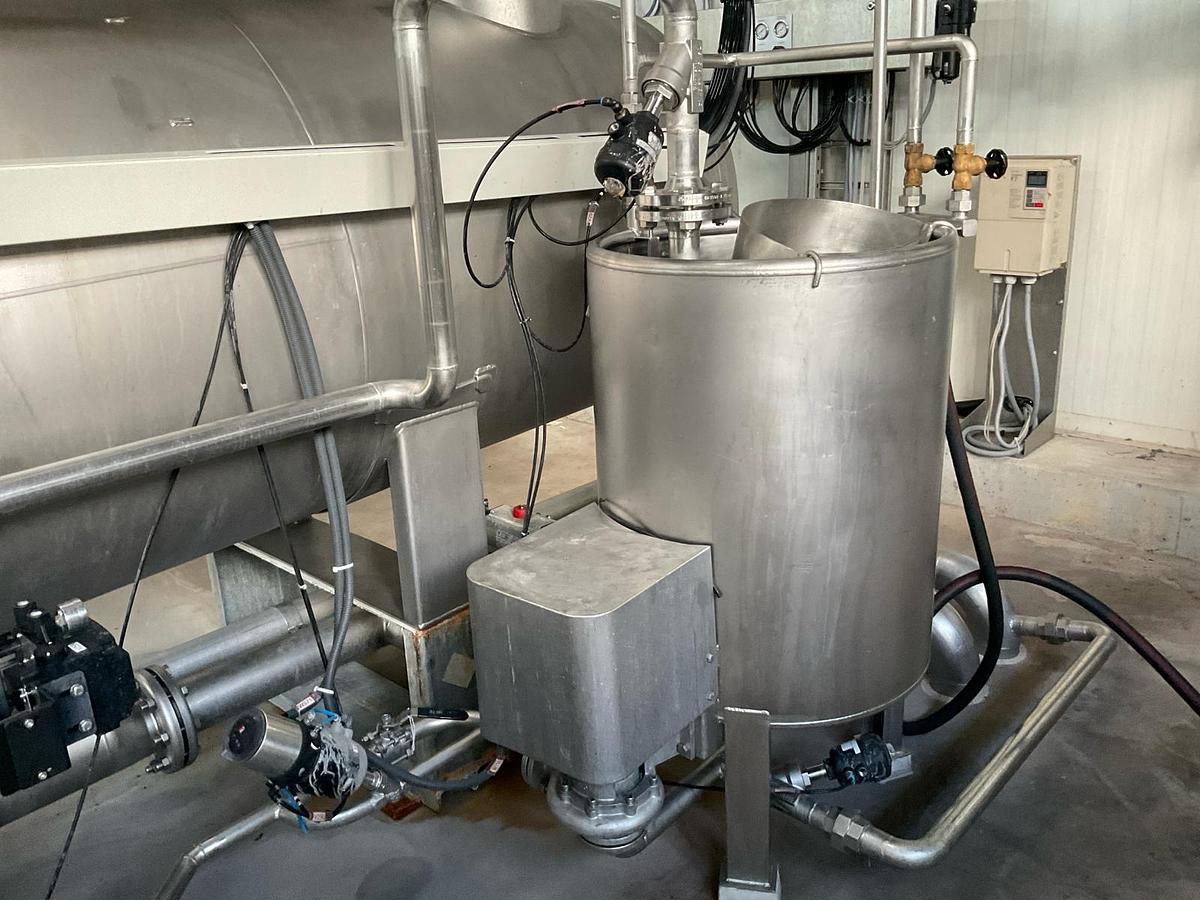

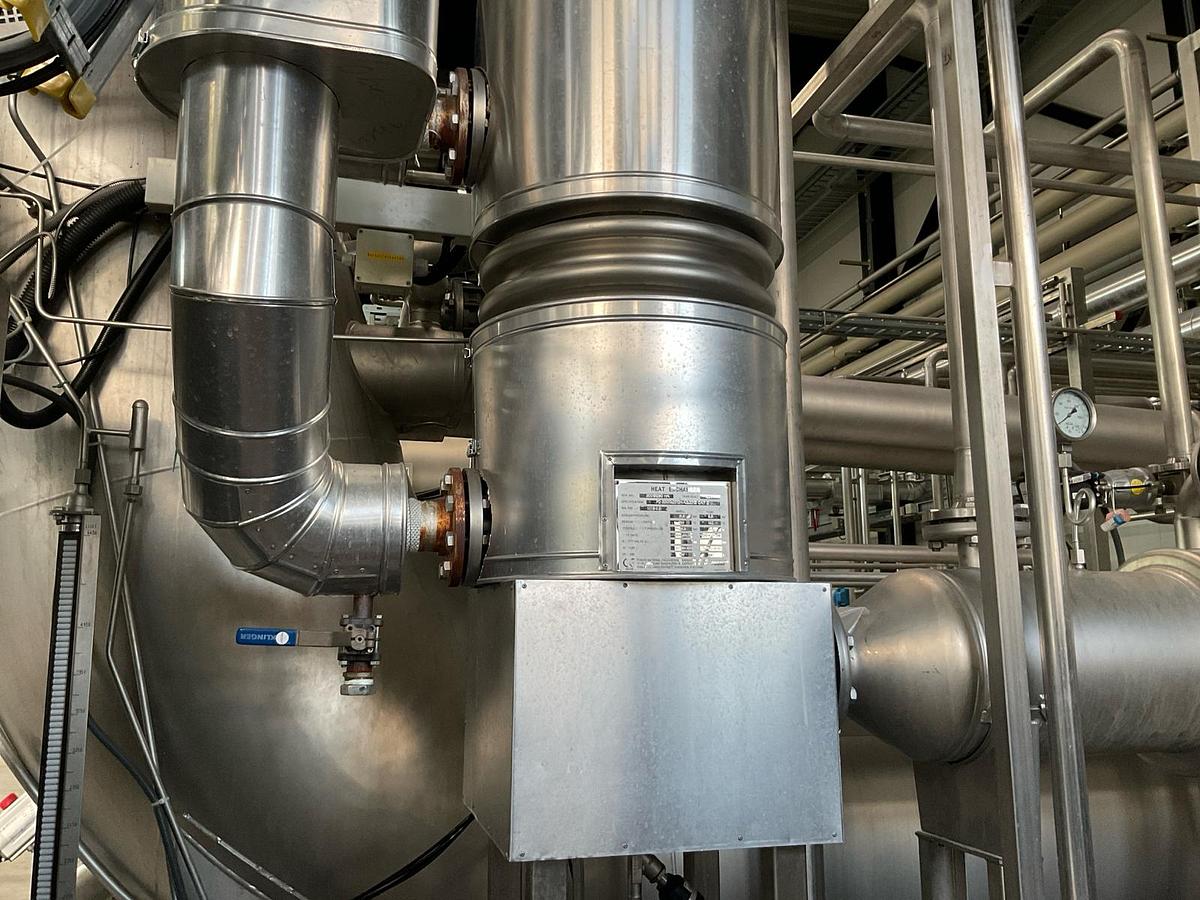

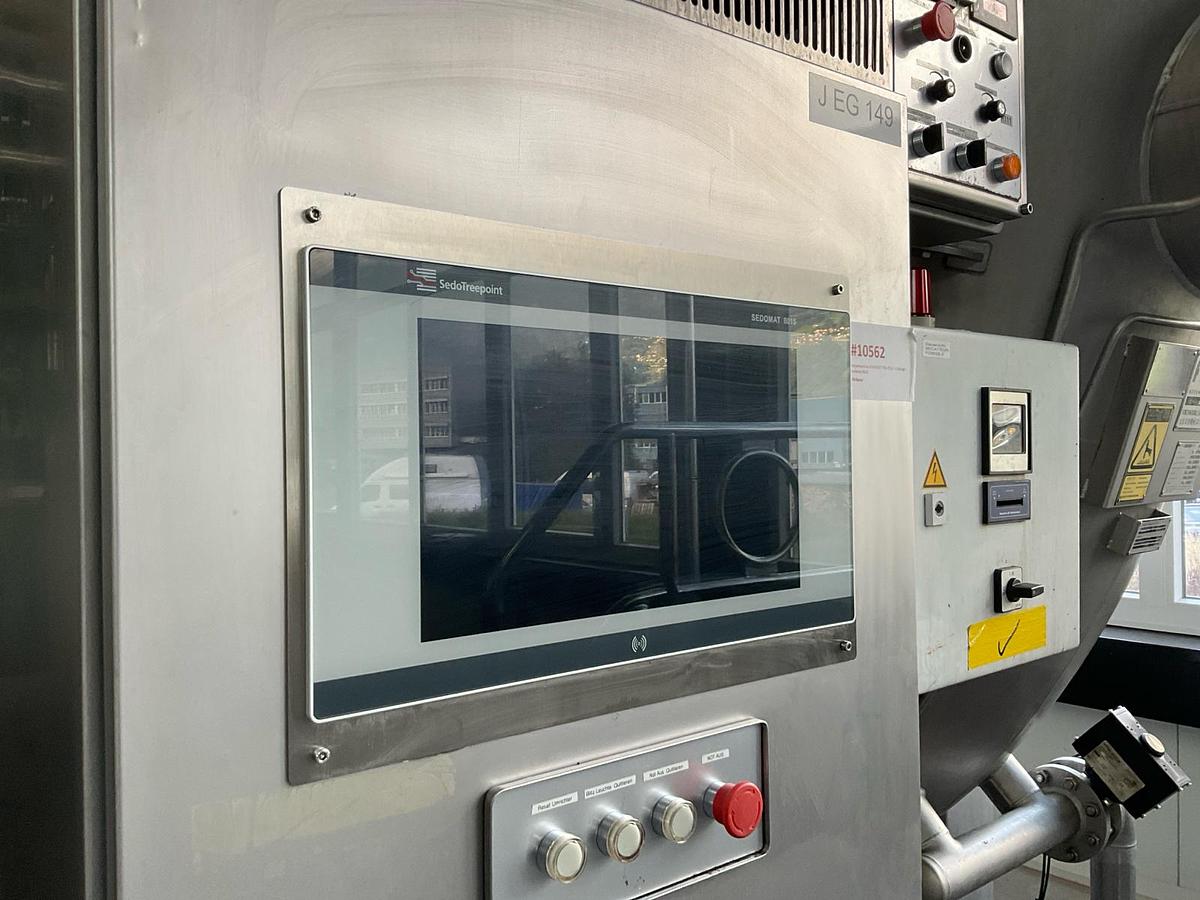

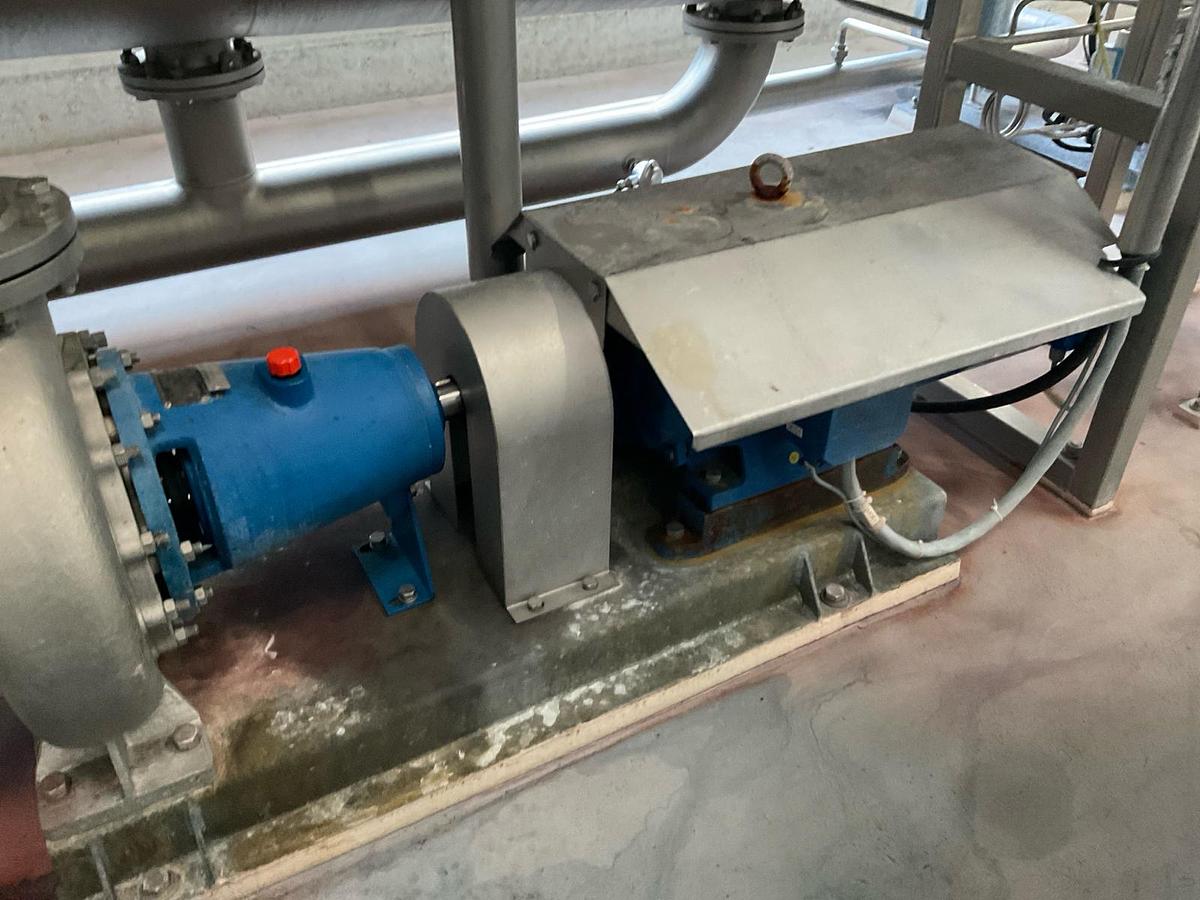

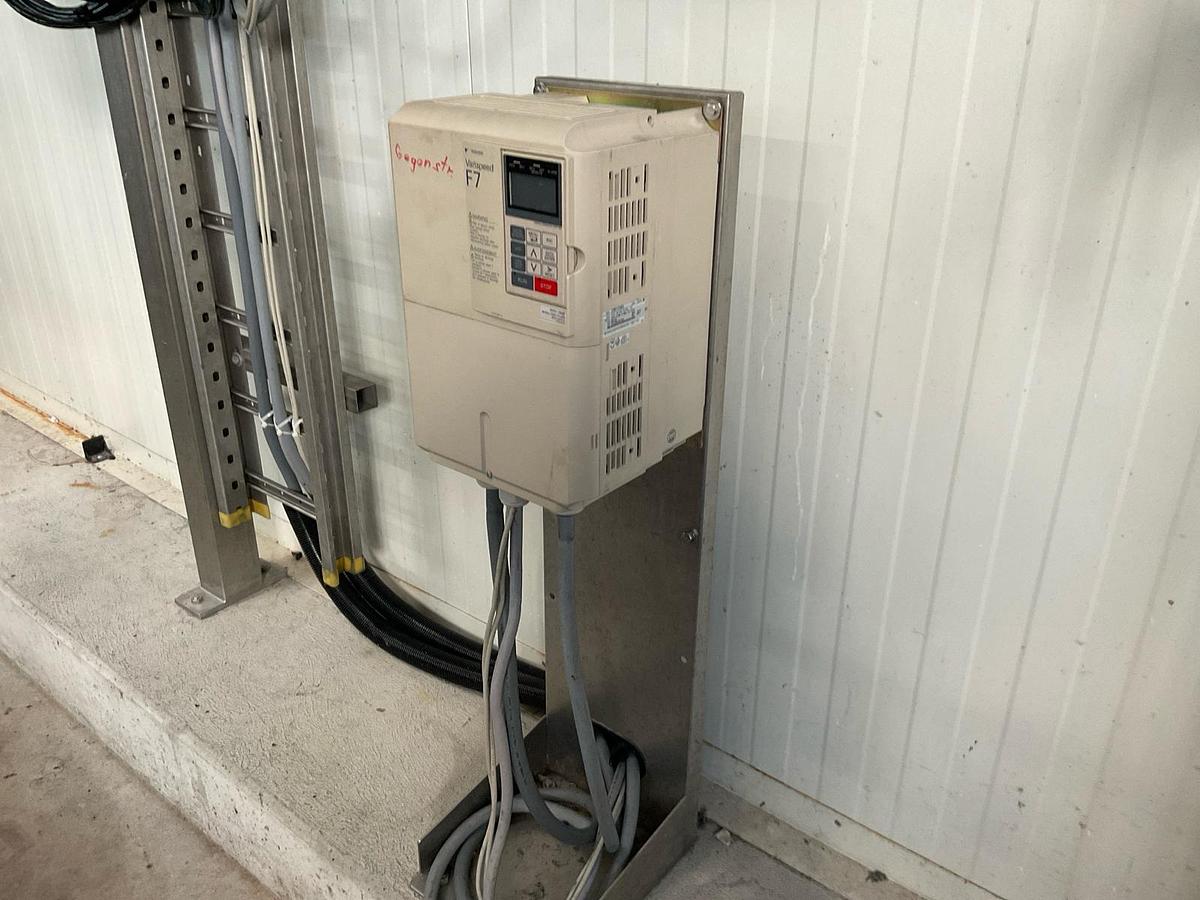

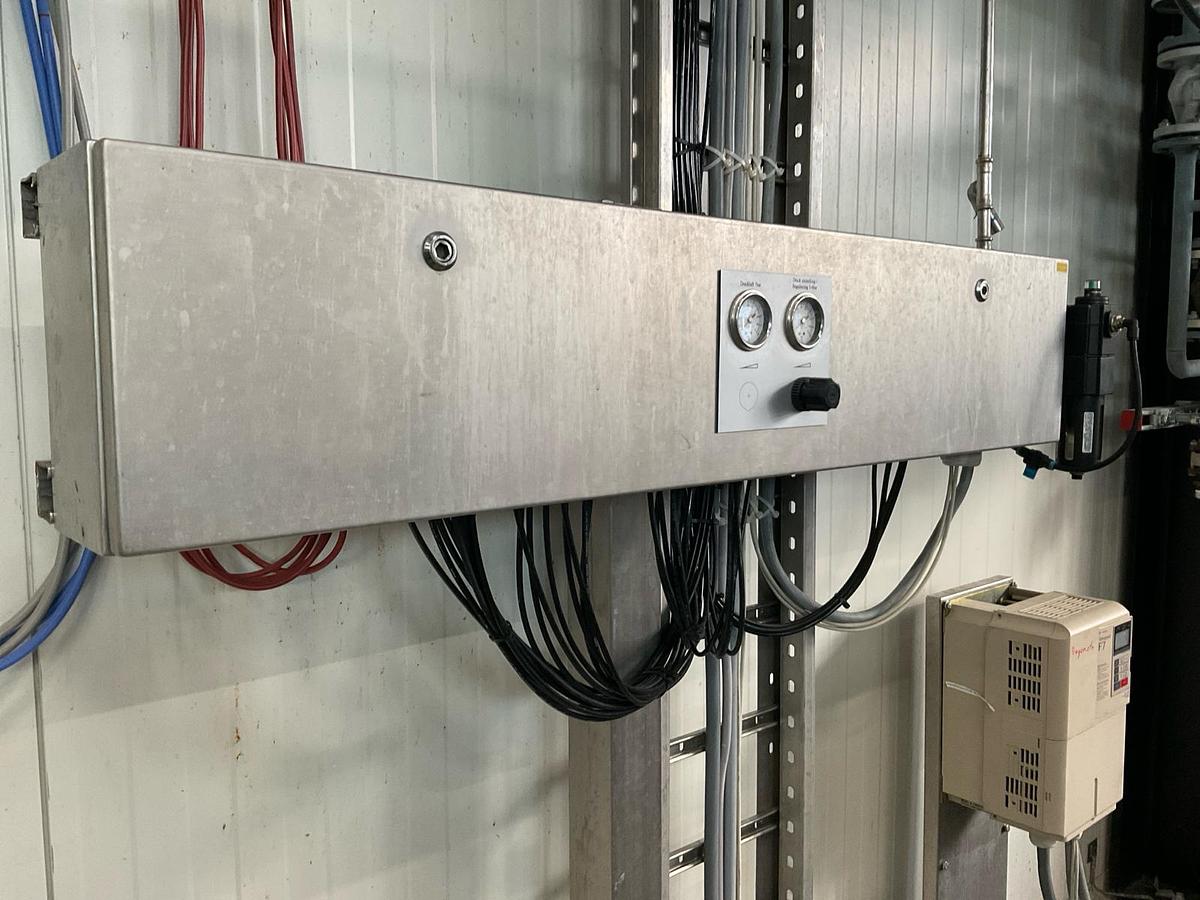

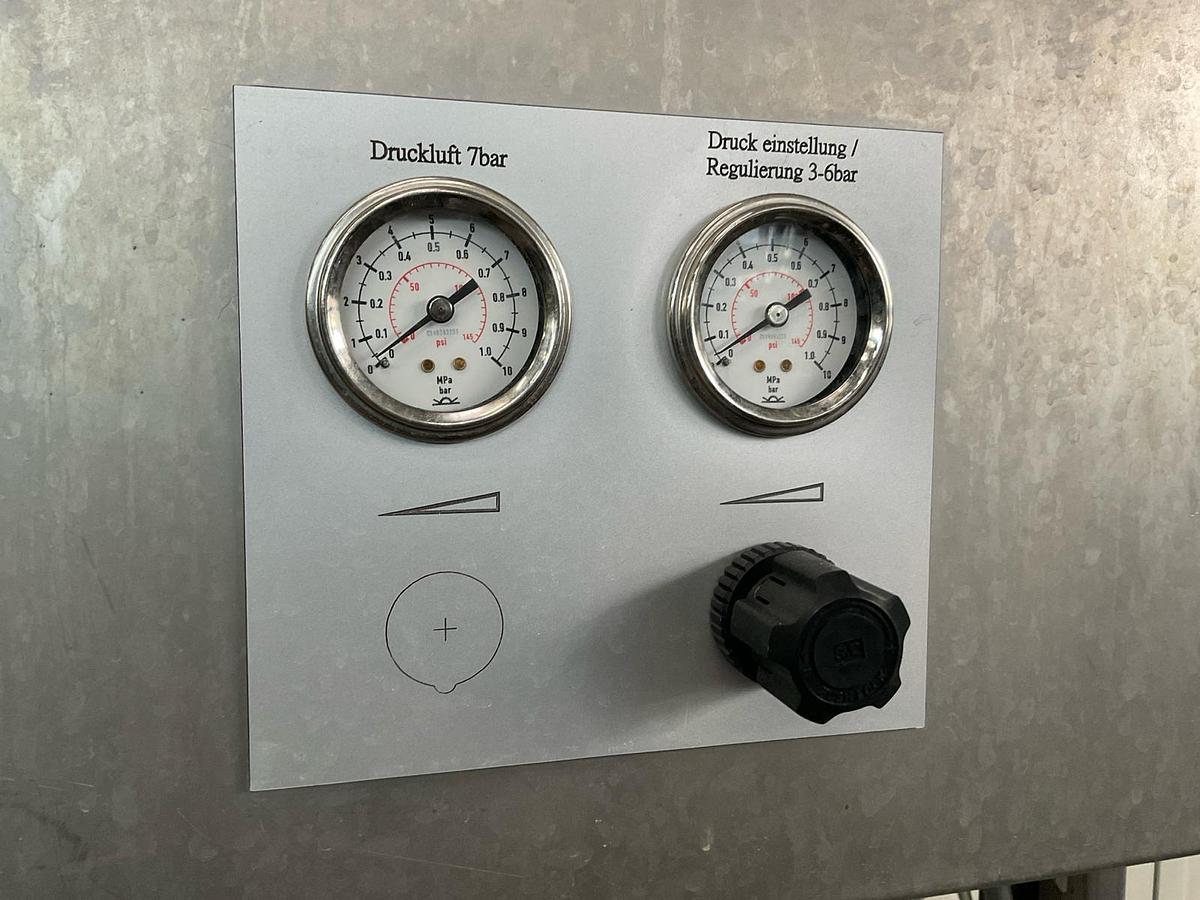

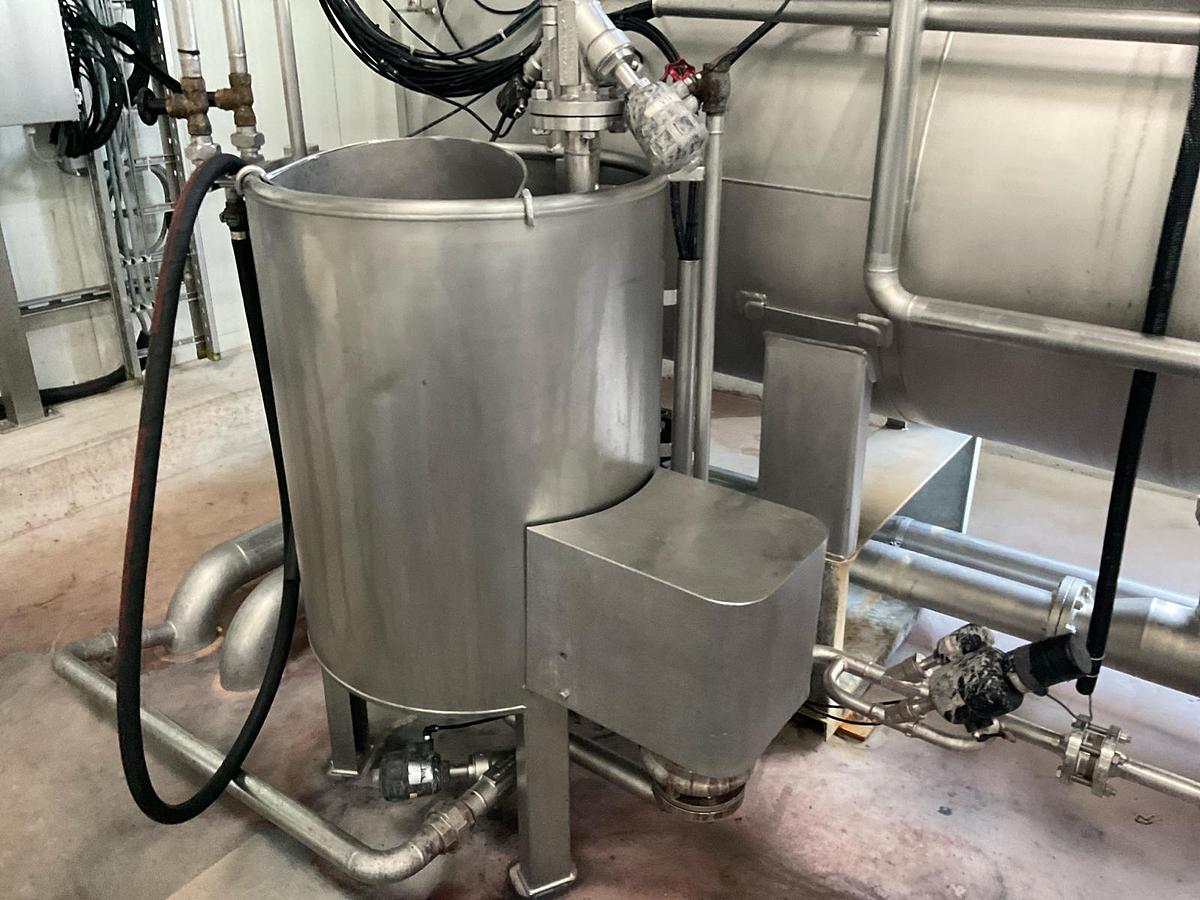

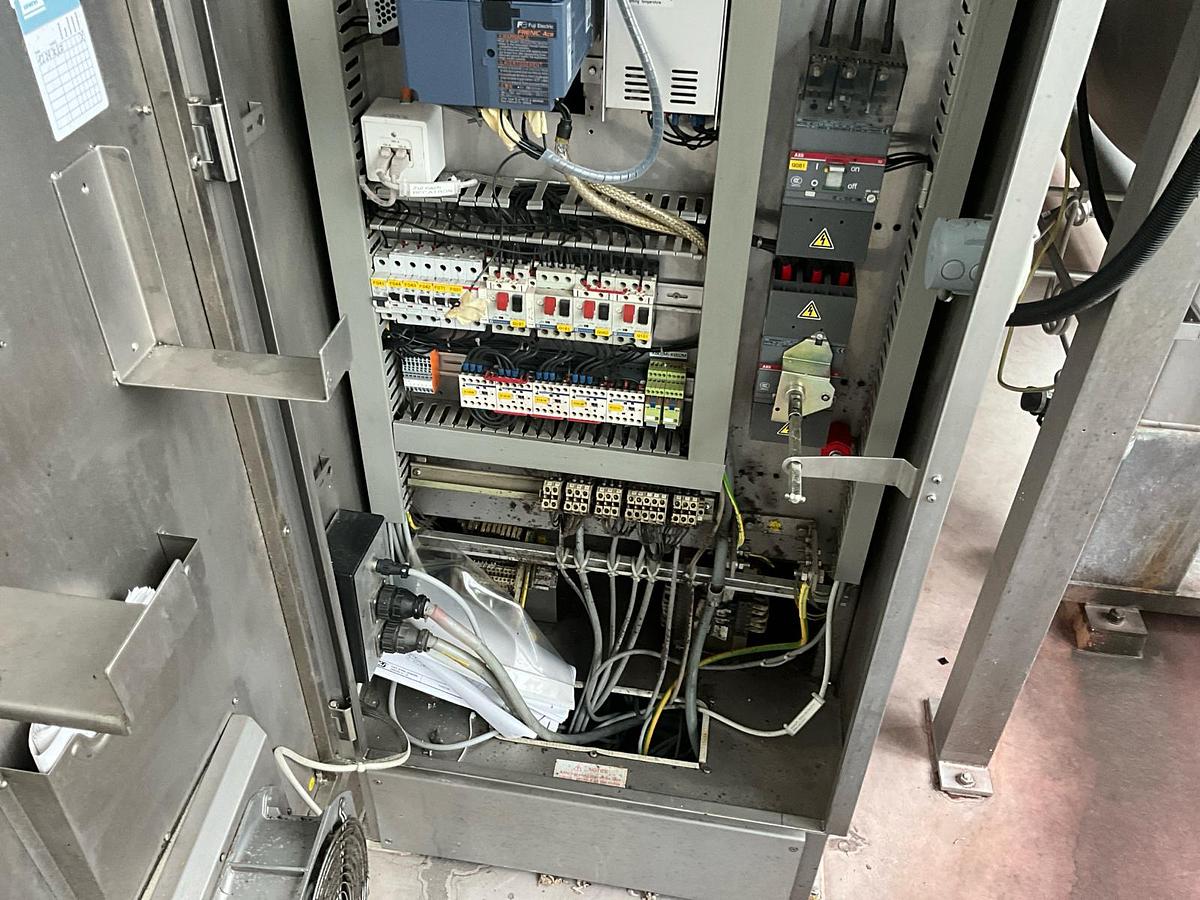

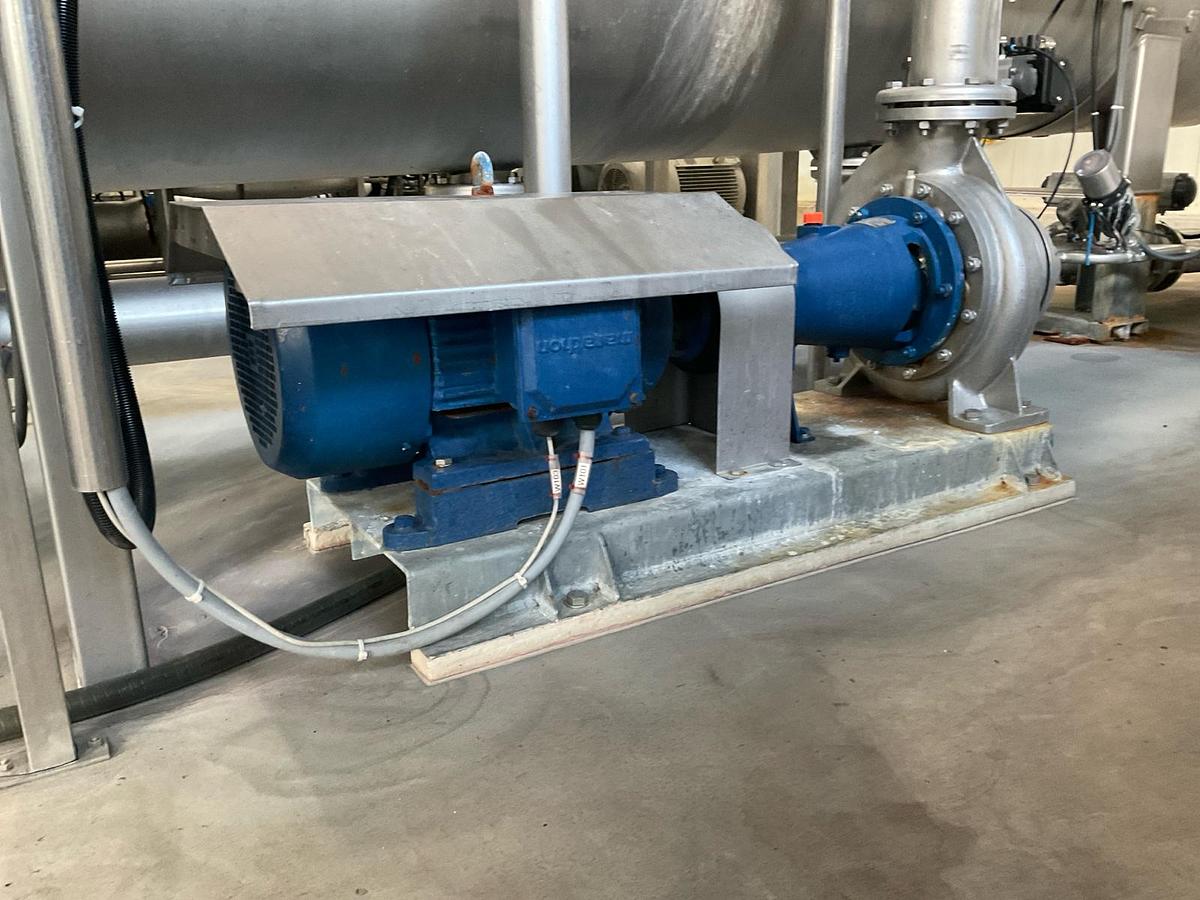

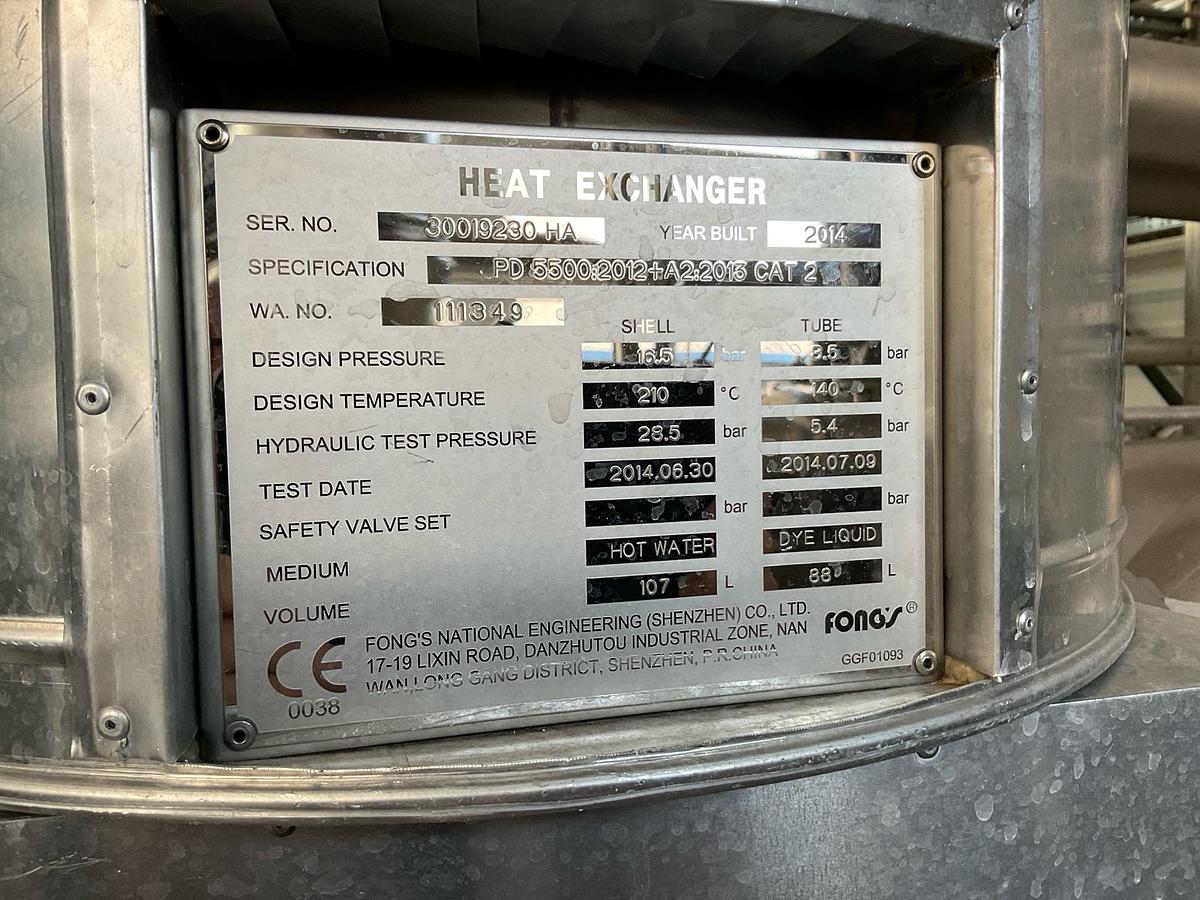

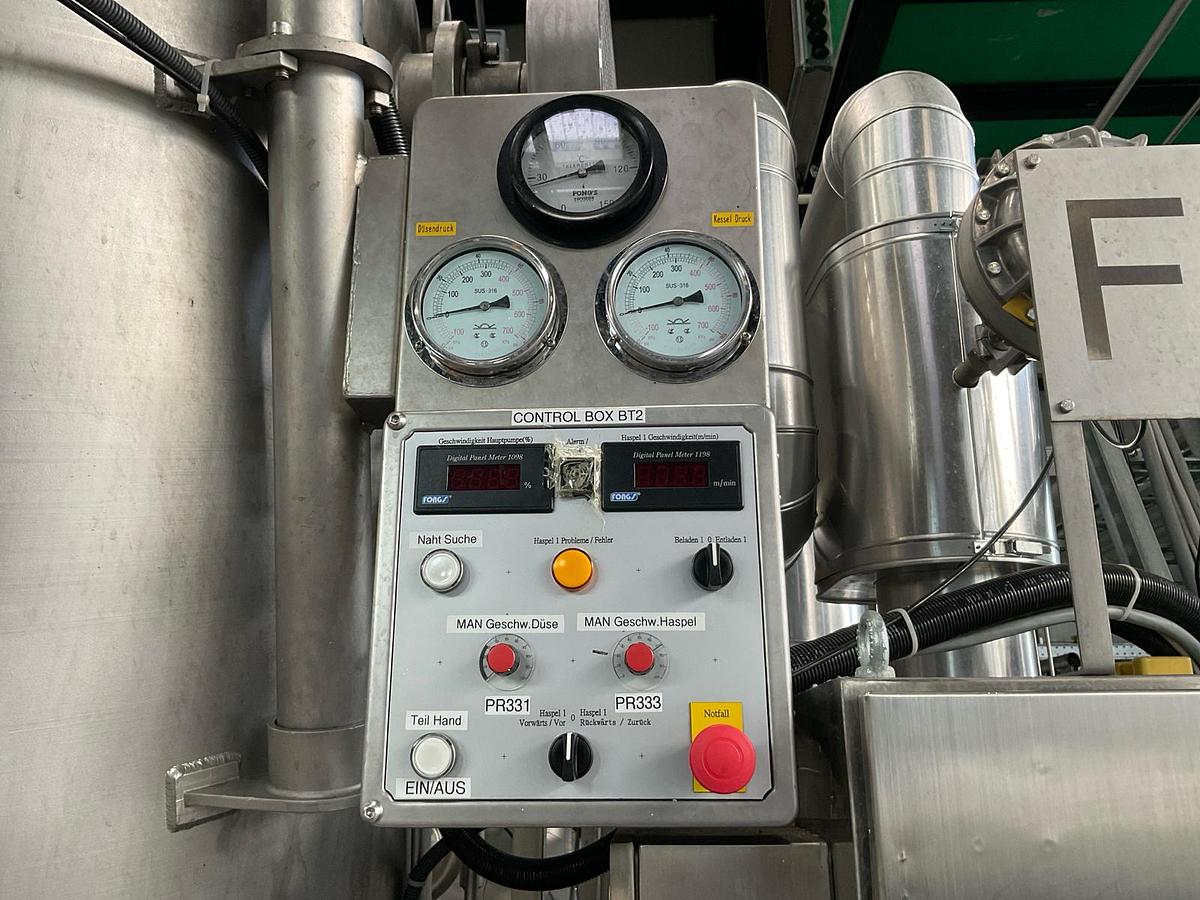

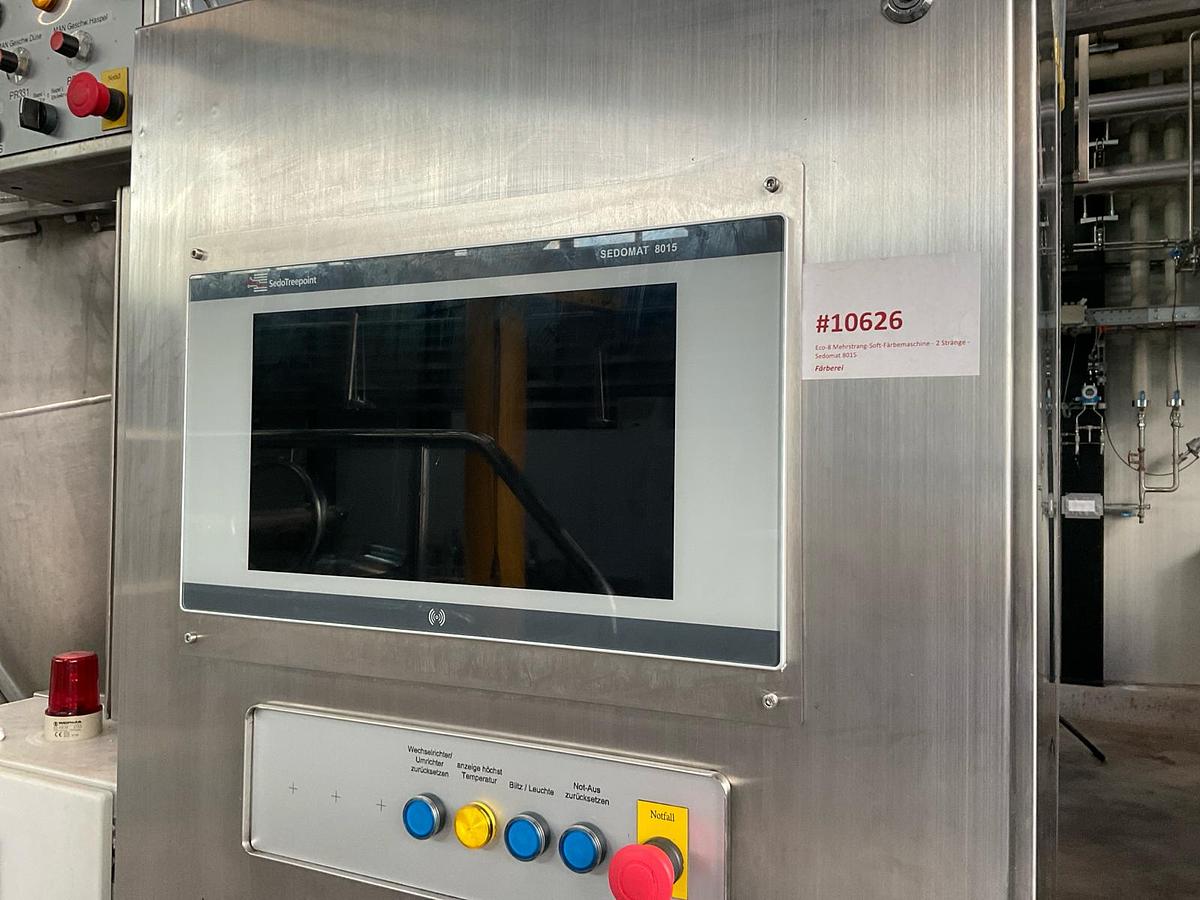

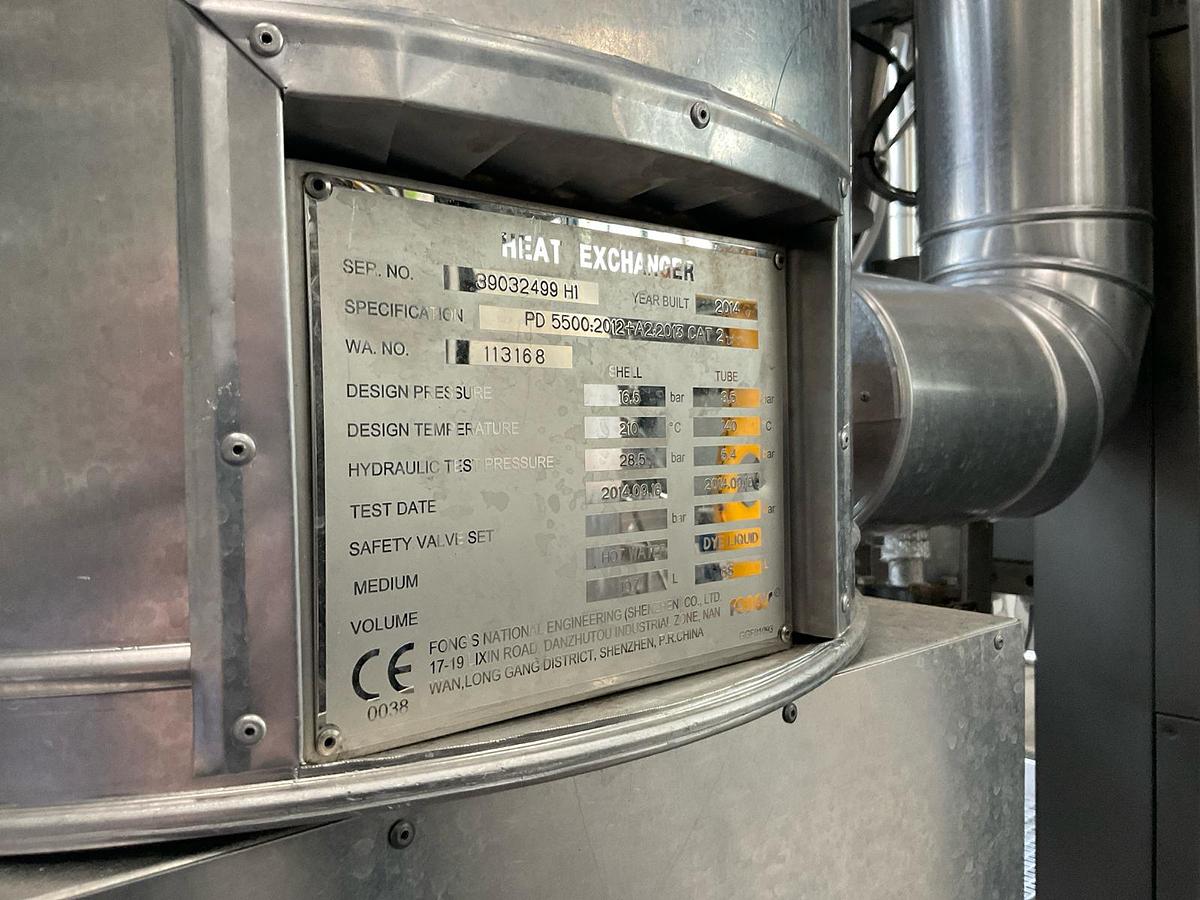

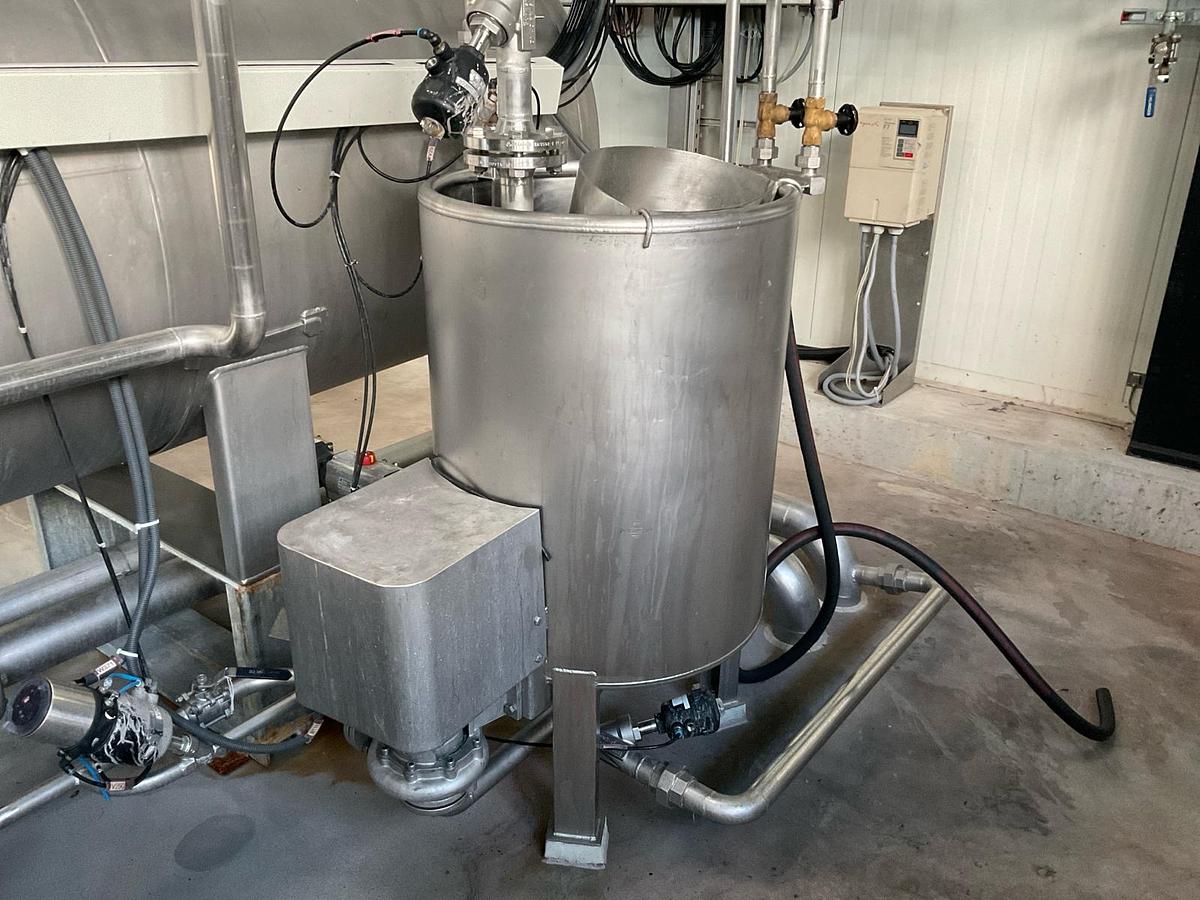

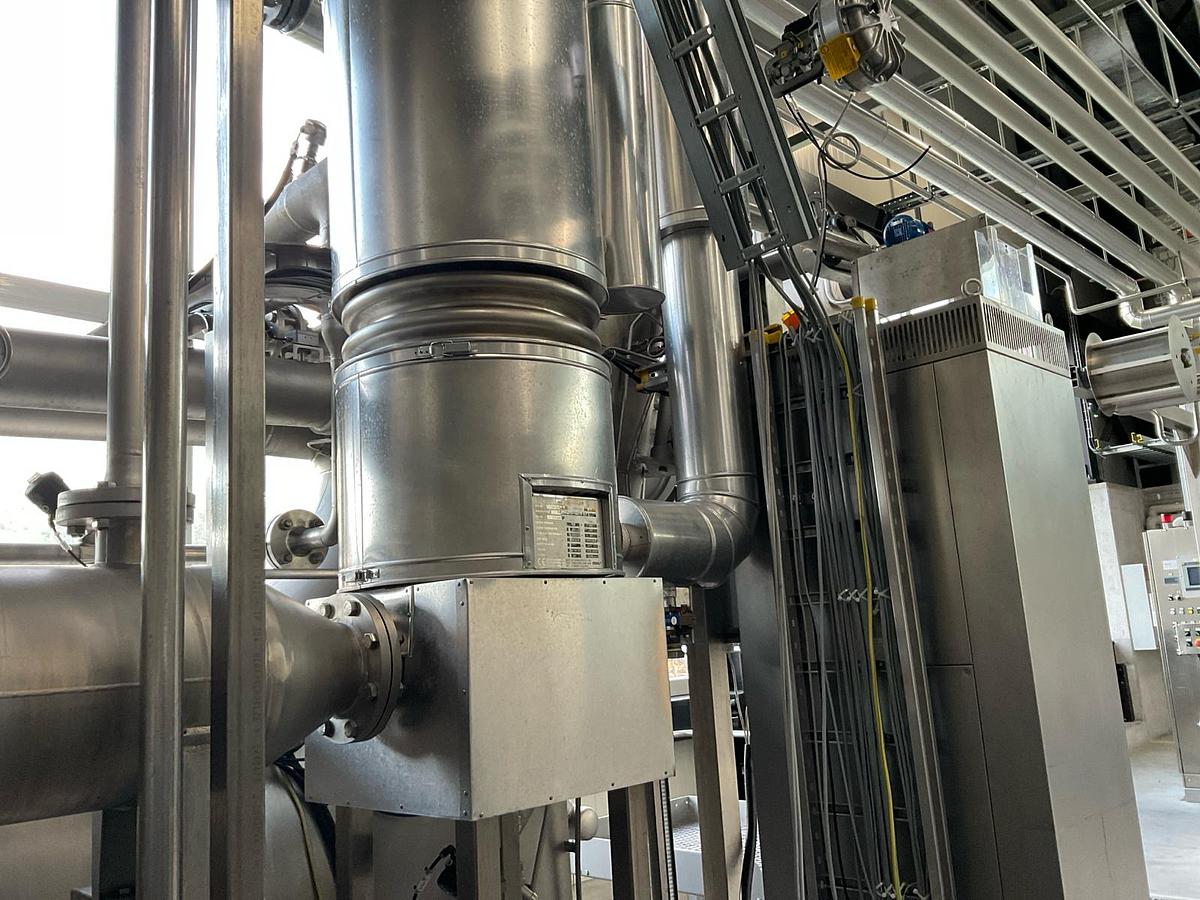

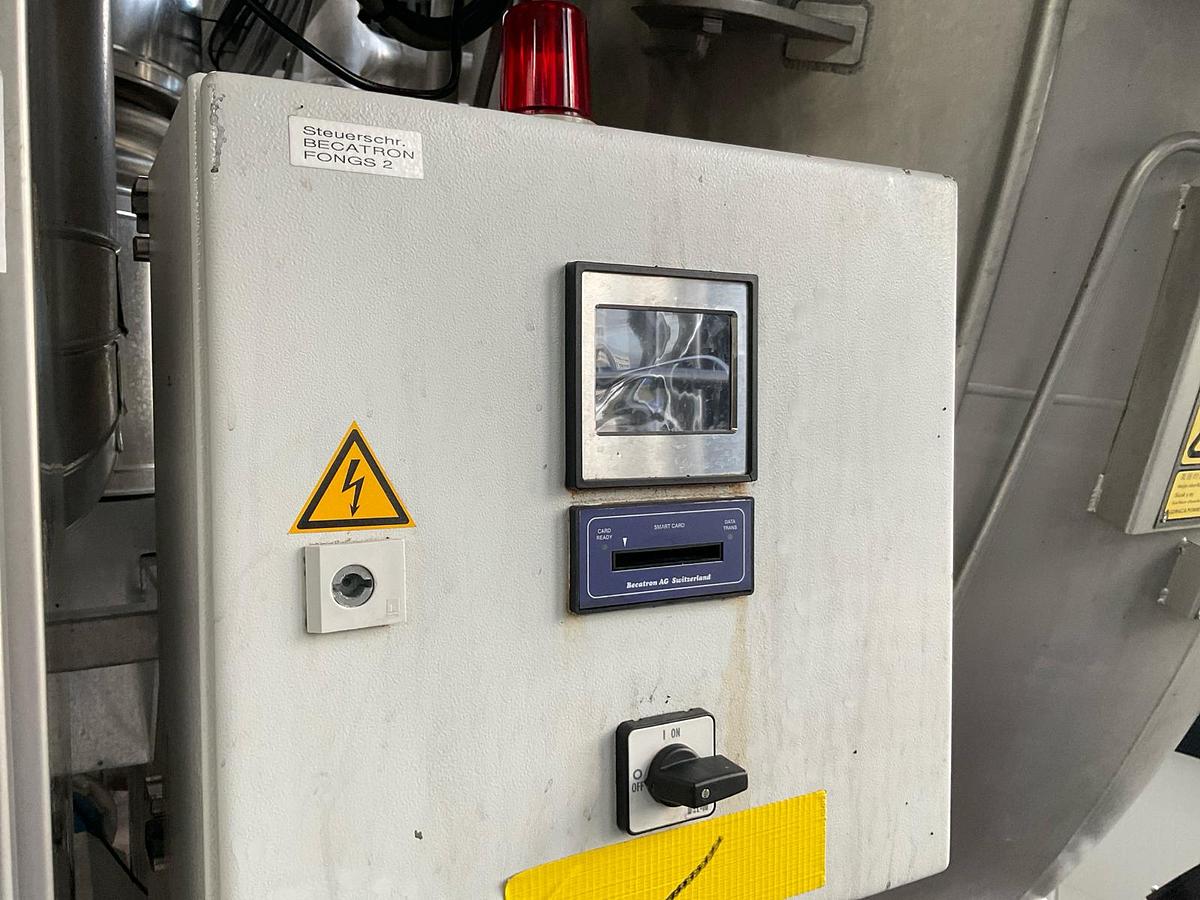

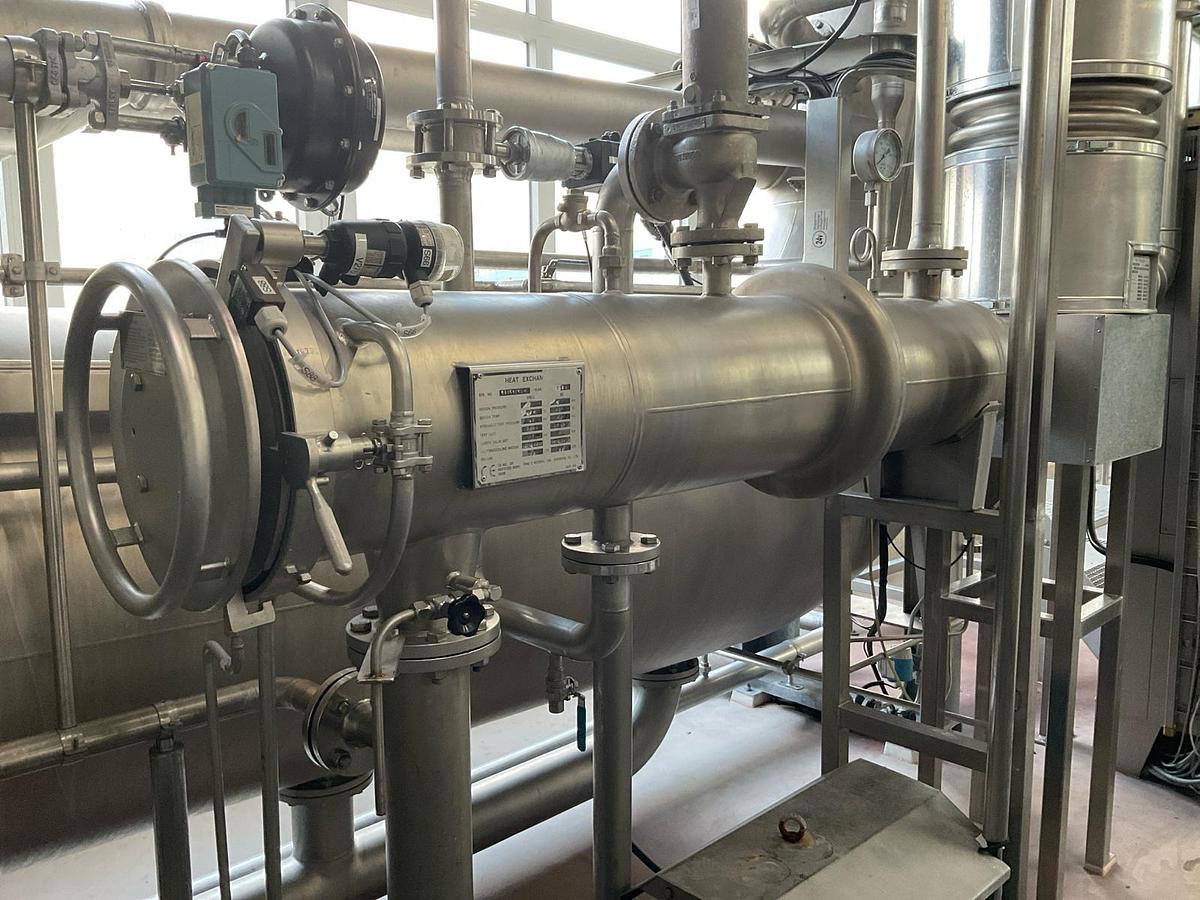

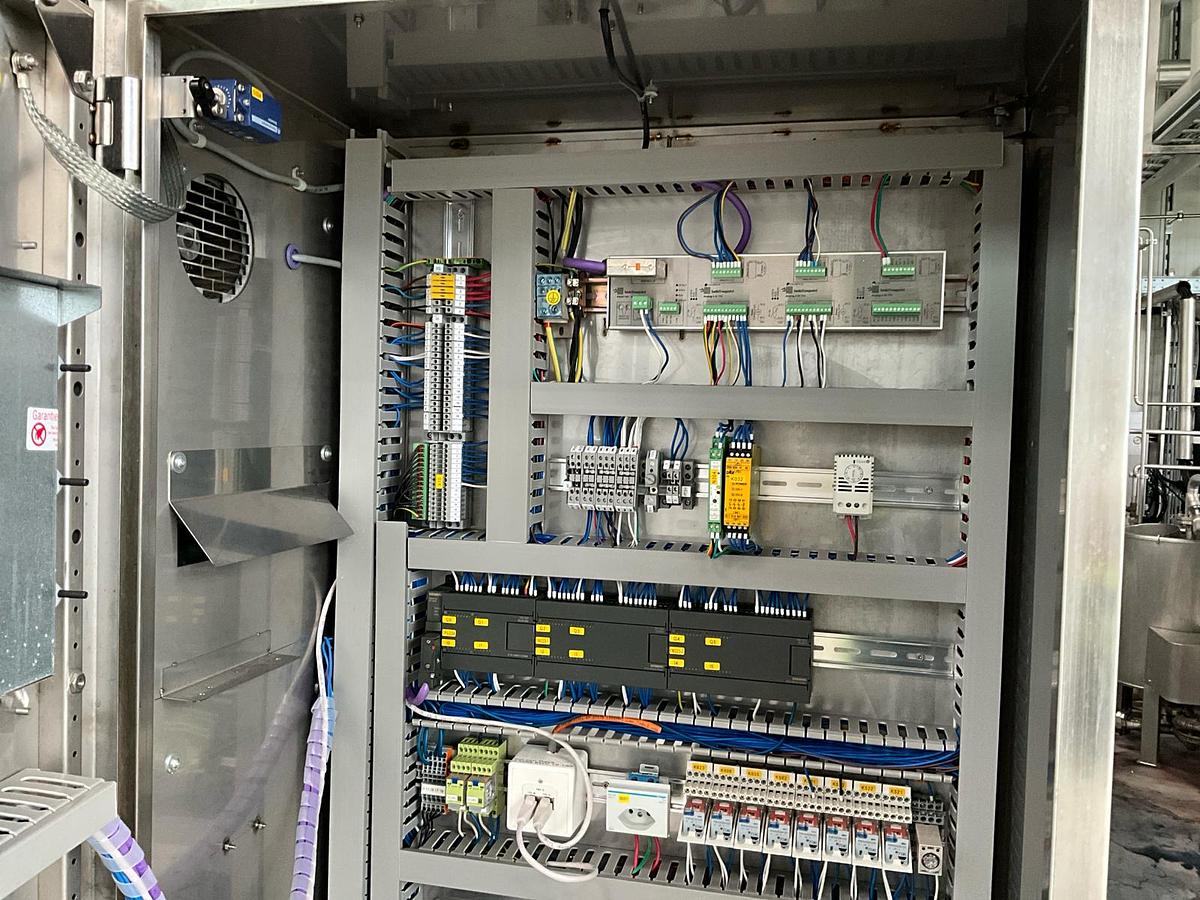

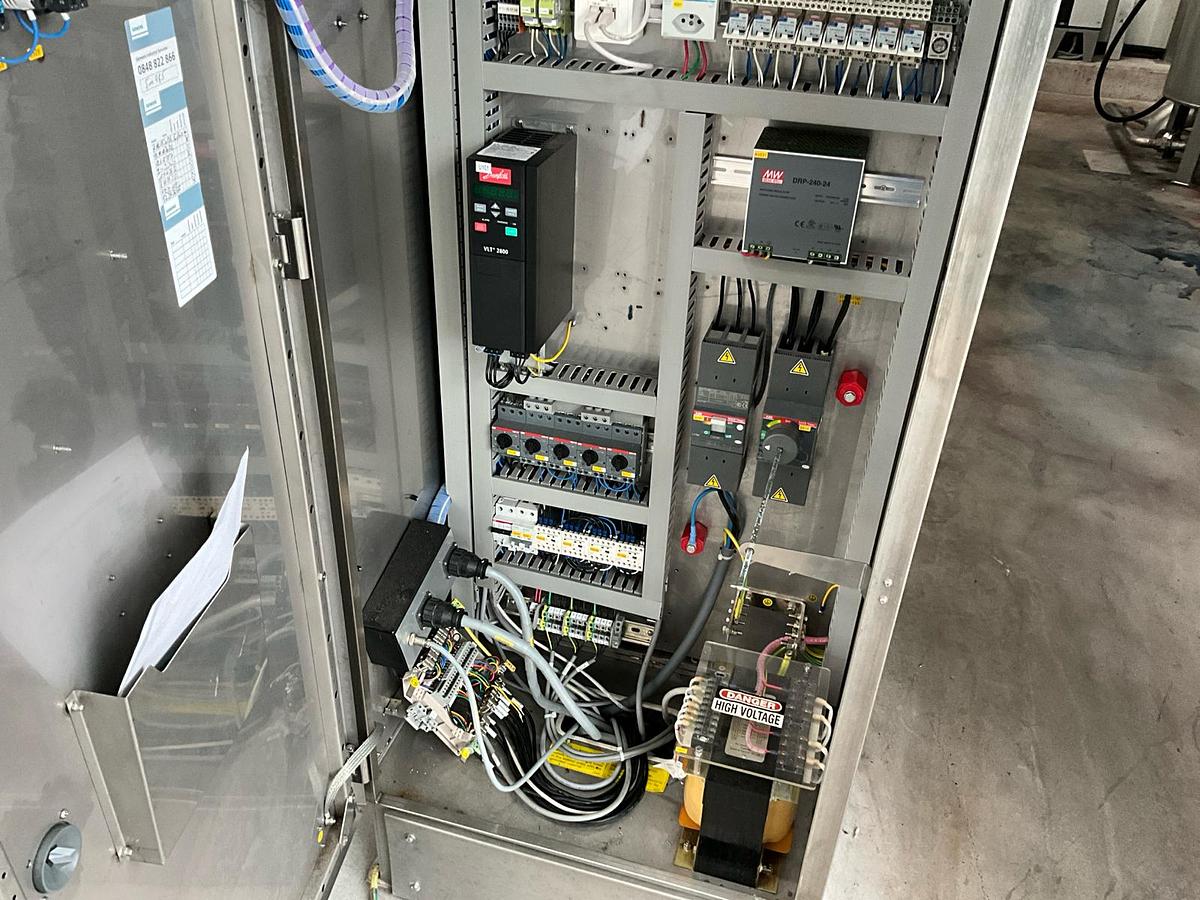

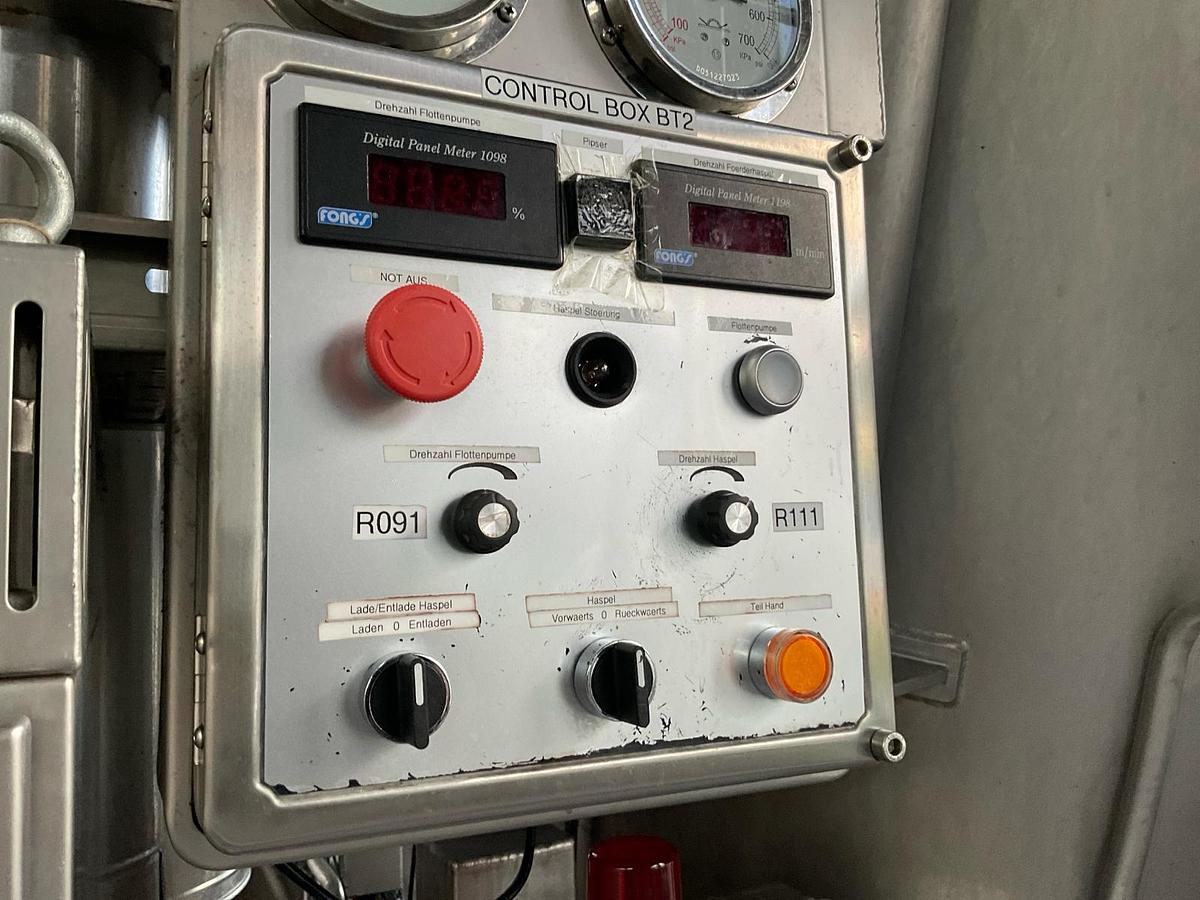

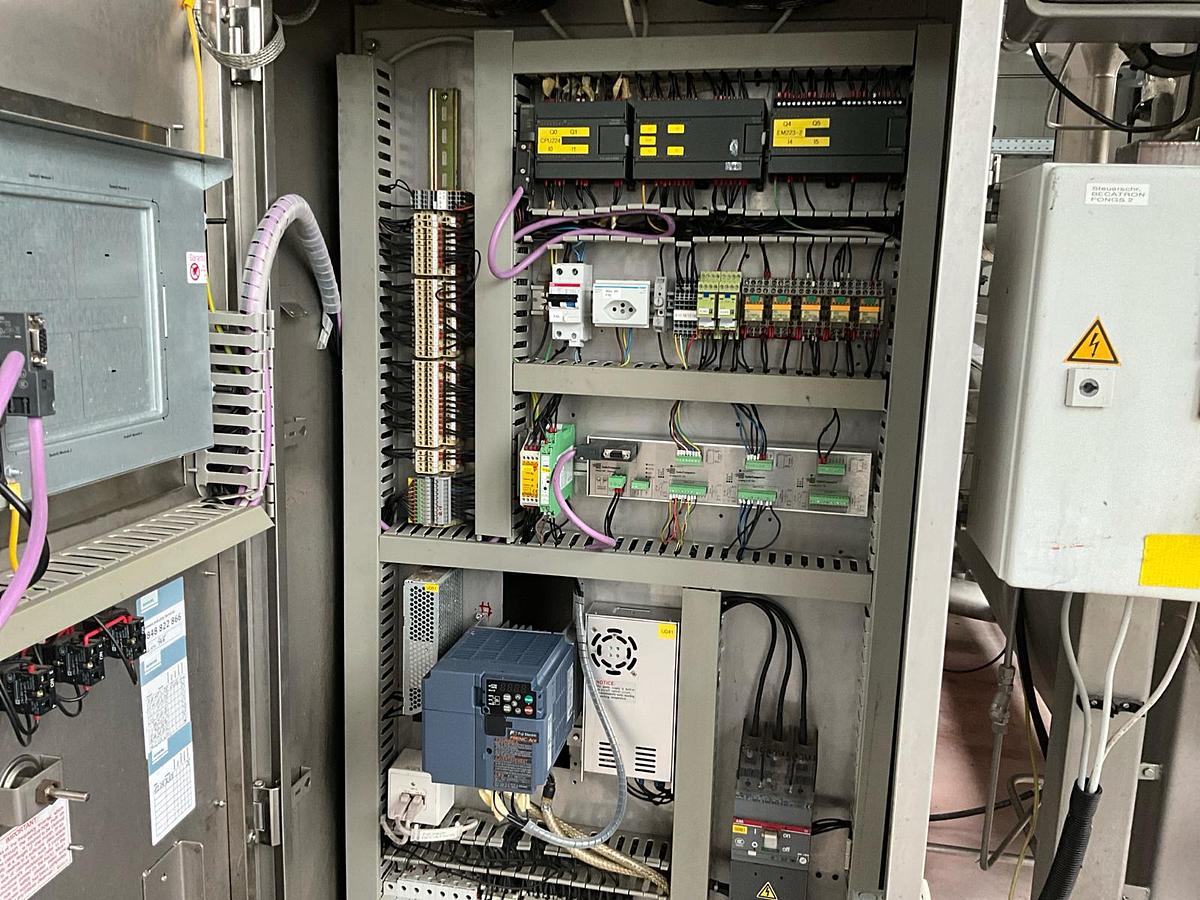

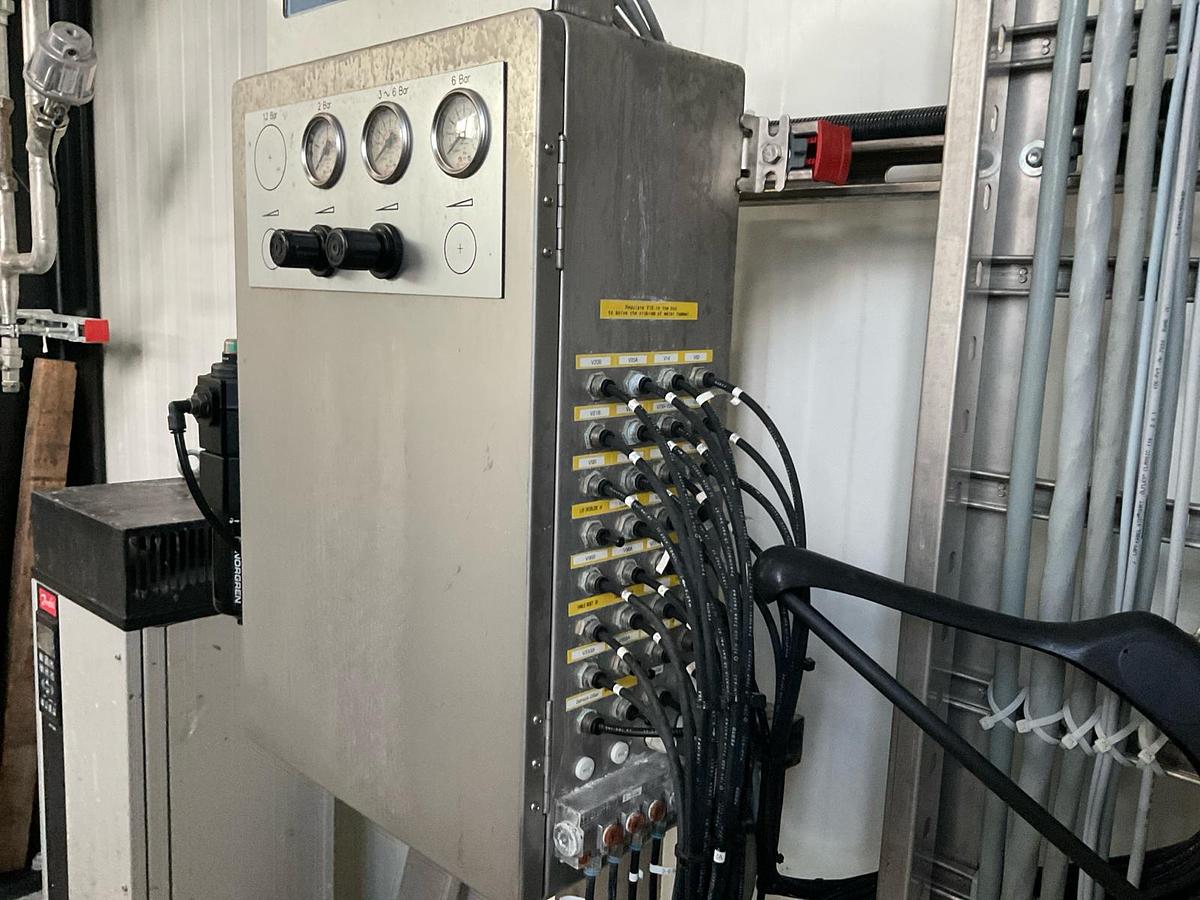

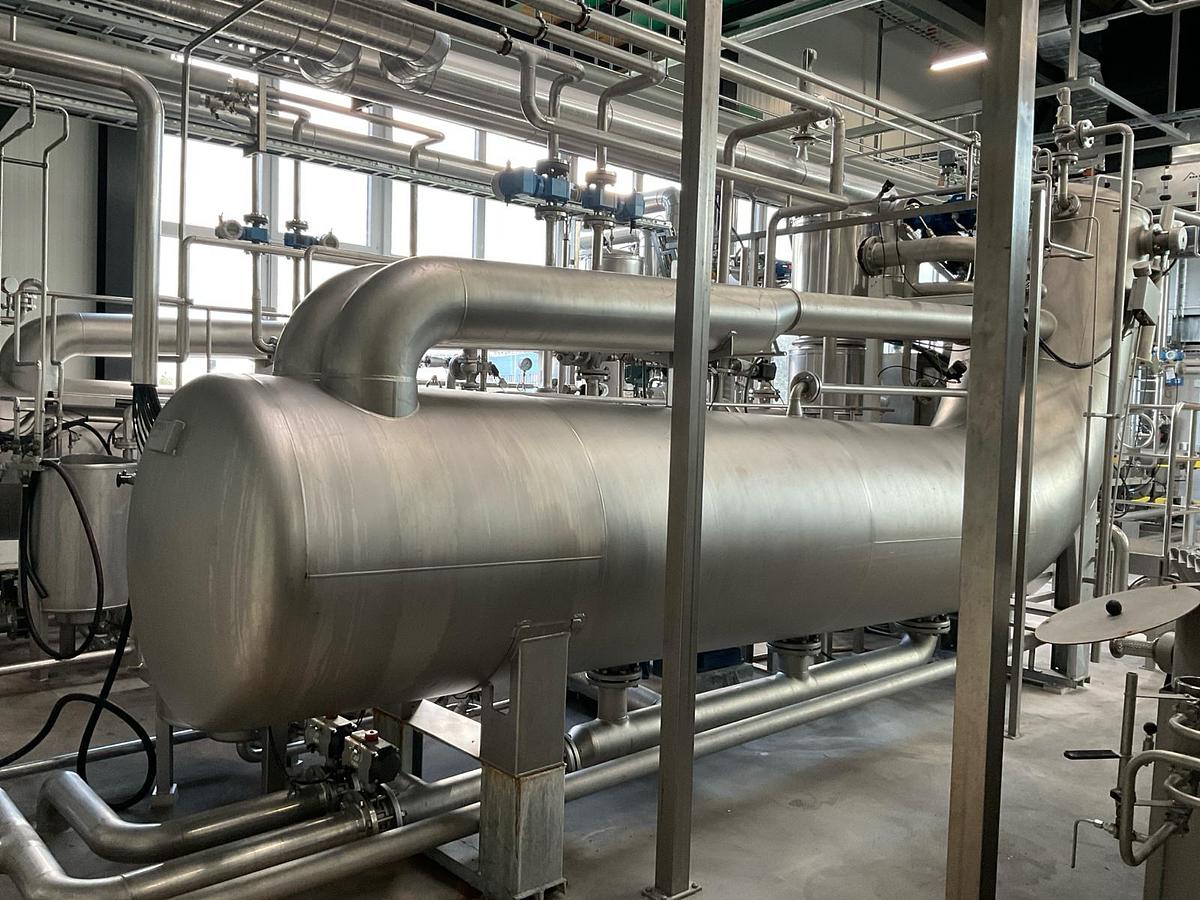

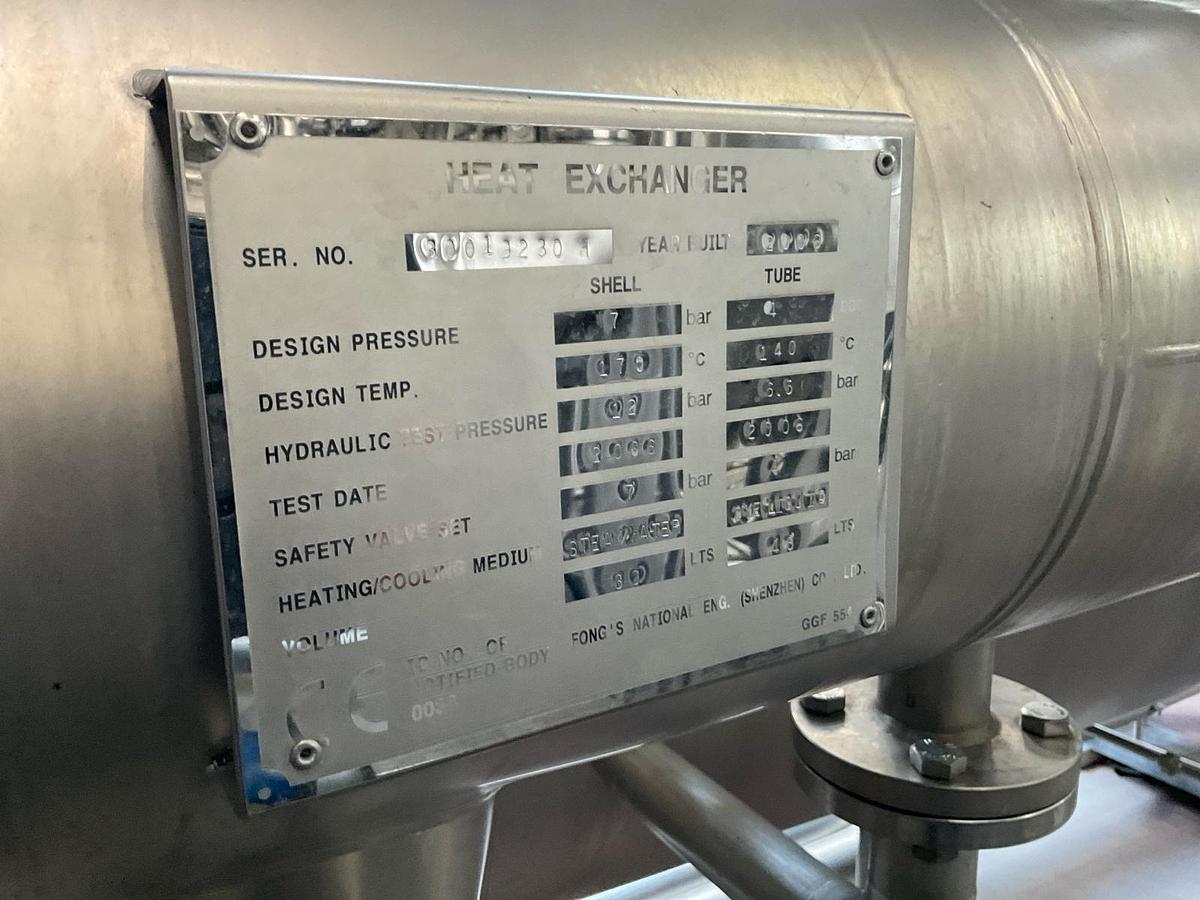

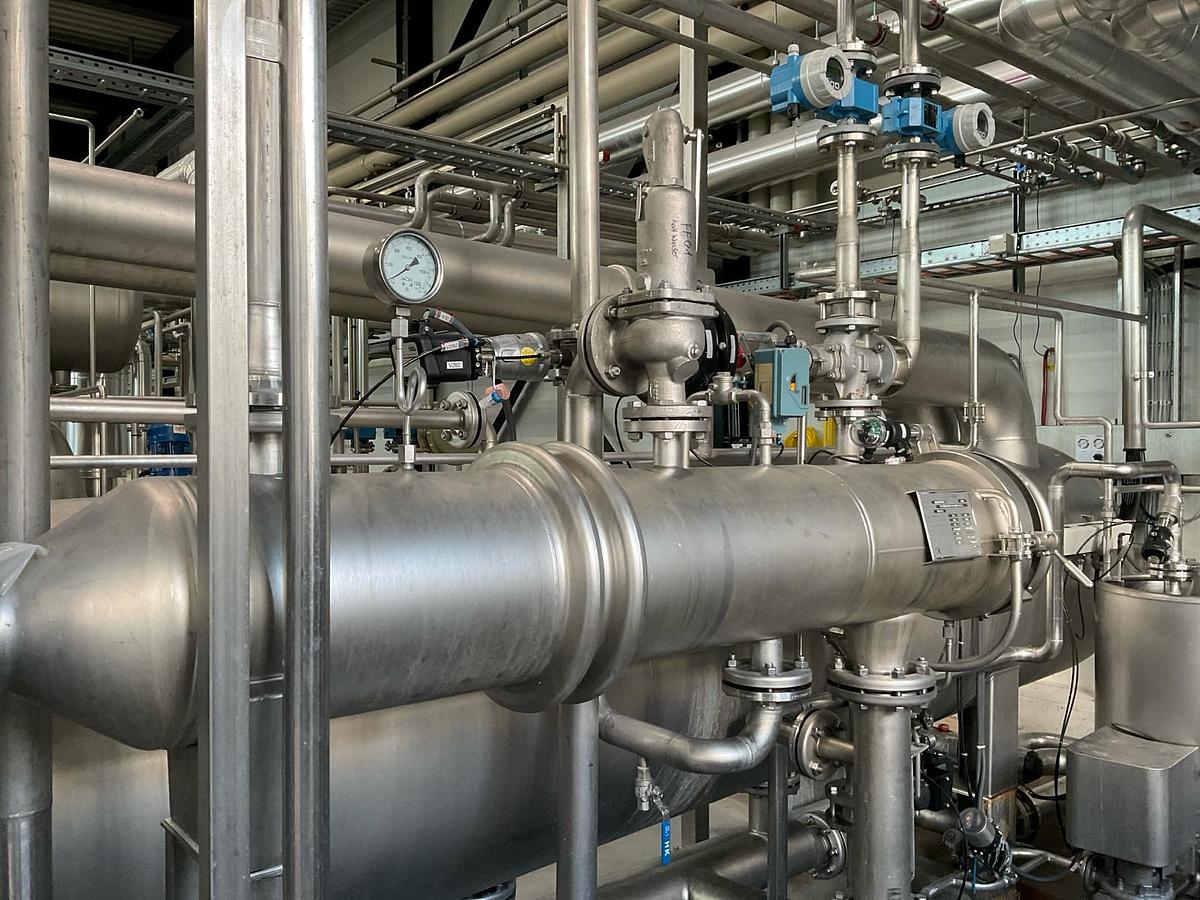

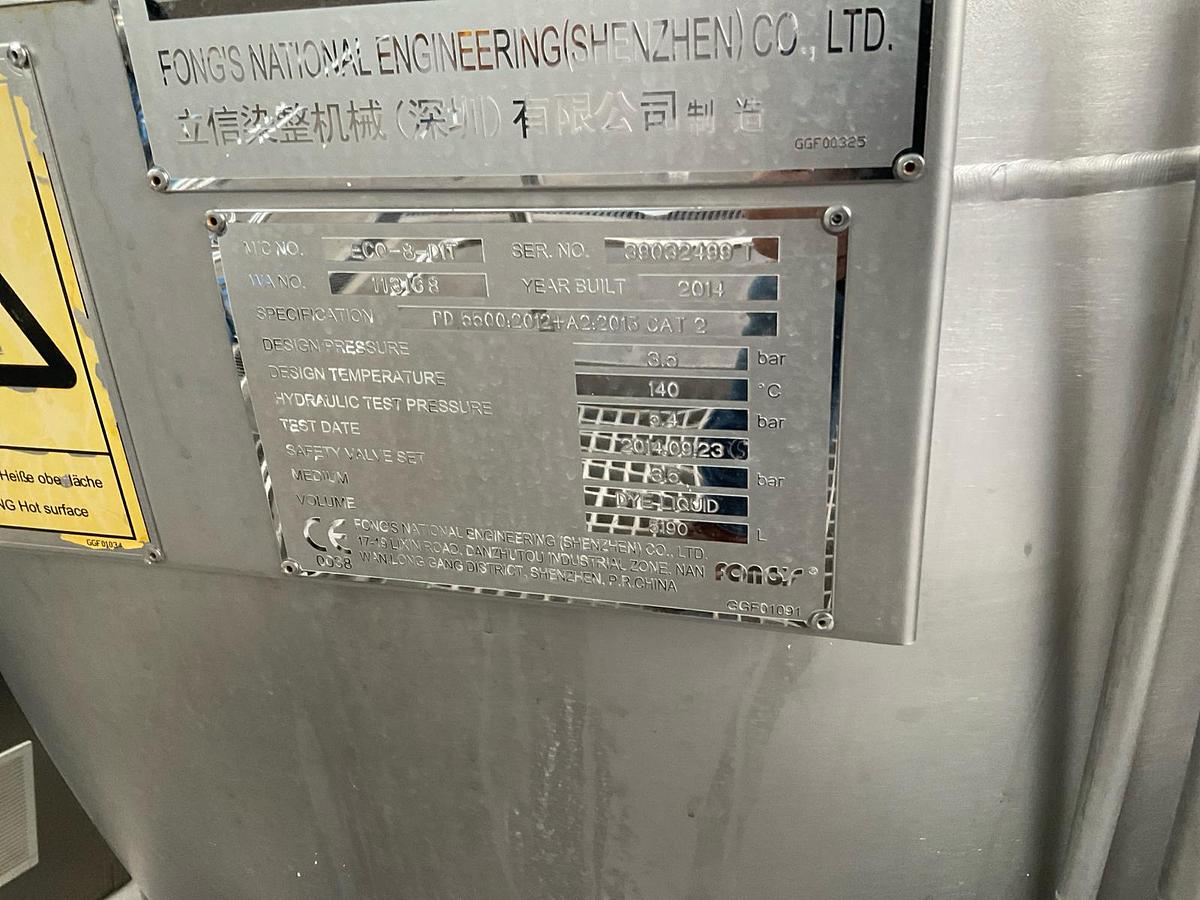

Specification PD 5500:2012+A2:2013-CAT 2, volume 5190 liter, medium dye liquid, test 5,4 bar, design temp 140 degrees, design pressure 3,5 bar, with central main control touch screen SedoThreepoint, Sedomat 8015, speed control box, pressure control meters, heat exchangers 7,5/3,5 bar, design temp. 173/140 degrees, volume 58/72 liter, second heat exchanger 16,5/3,5 bar, volume 107/88 liter, heavy pumps, open vessel diam. 600 x 800 mm, Yaskawa frequenzer, pressure adjuster, 2-step stainless platform with rail, top fabric reel-infeed, combined piping, etc dimensions approx. 6250x 2250x 3100 mm.

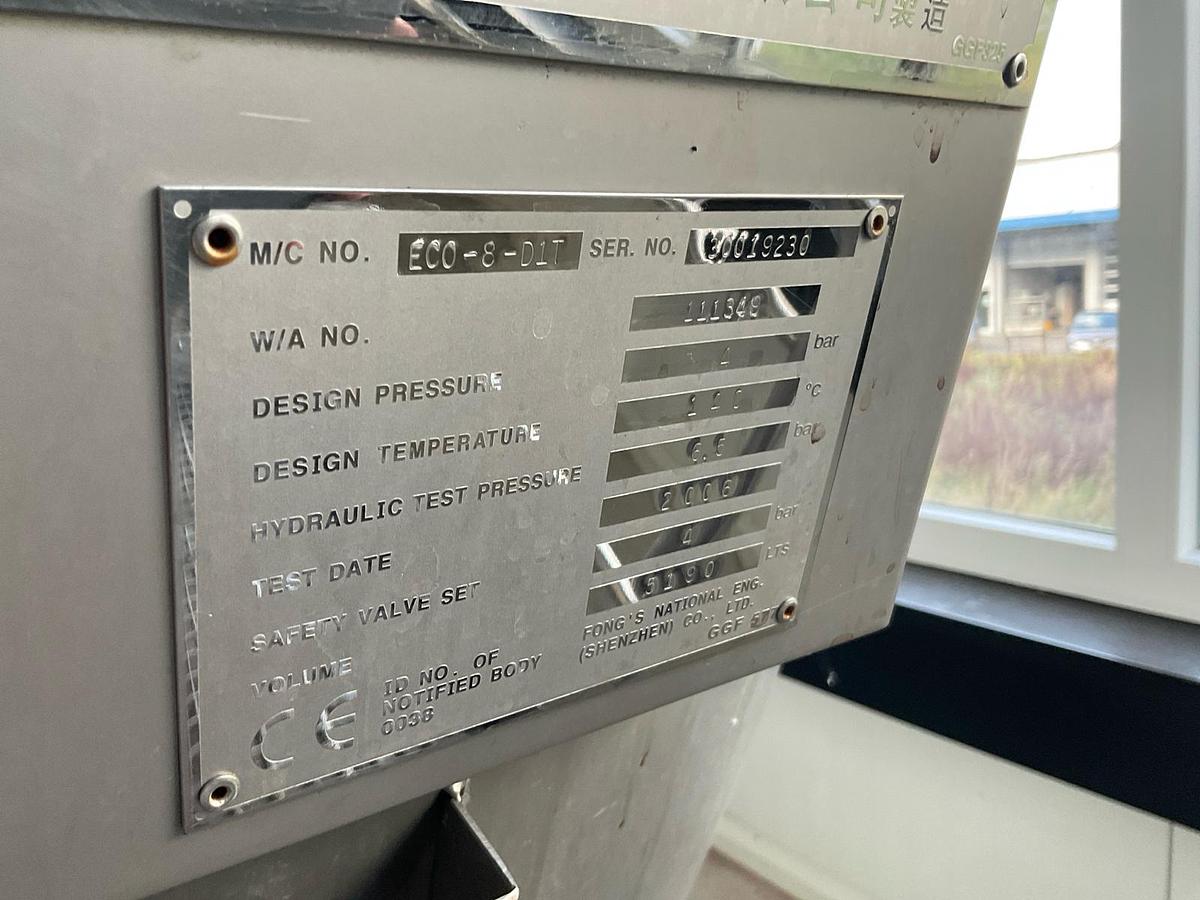

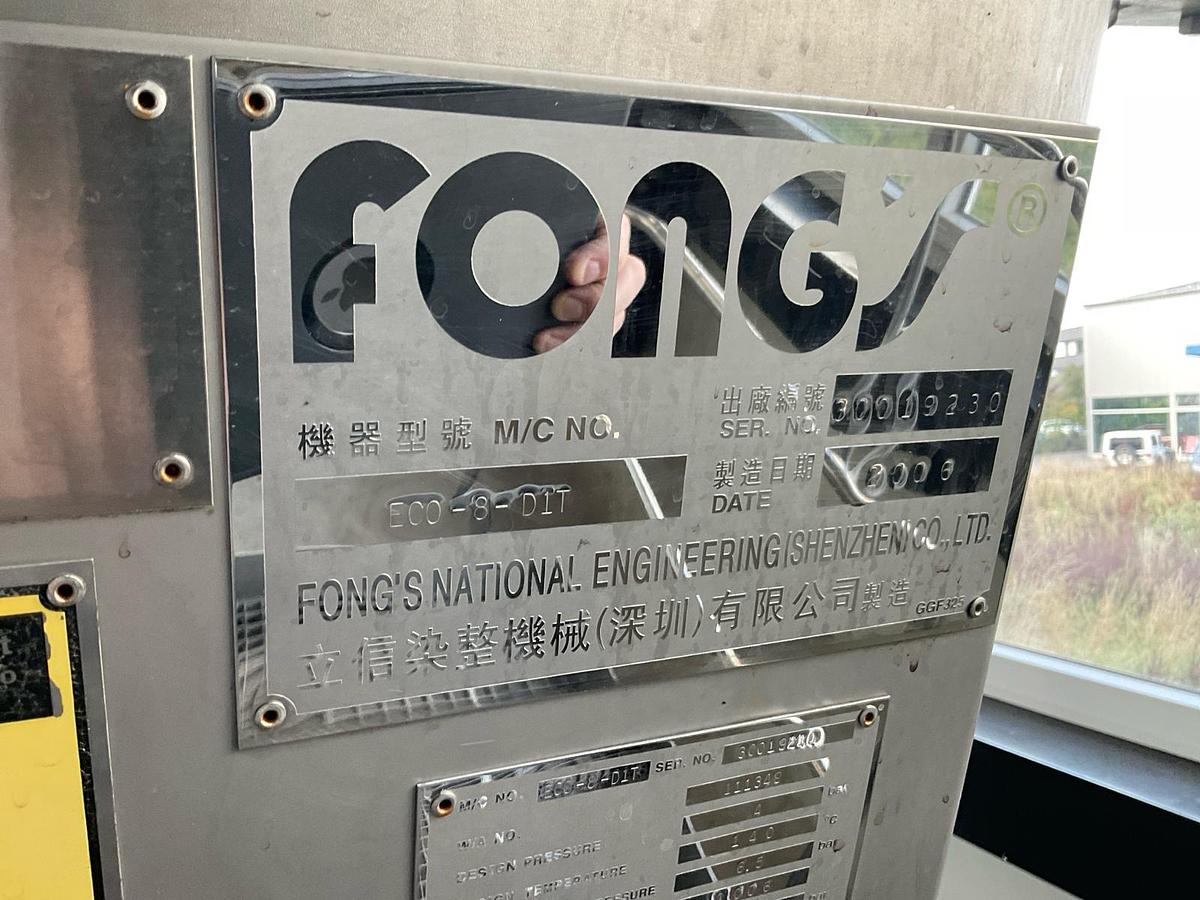

2008 Fong’s ECO-8-D1T single l-shape full stainless steel tubular HT fabric dyeing installation (serial number 30019230-FF02):
Specification PD 5500:2012+A2:2013-CAT 2, volume 5190 liter, medium dye liquid, test 6,5 bar, design temp 140 degrees, design pressure 4 bar, with central main control touch screen SedoThreepoint, Sedomat 8015, speed control box, pressure control meters, heat exchangers 7,0/4 bar, design temp. 170/140 degrees, volume 39/48 liter, second heat exchanger 16,5/3,5 bar, volume 107/88 liter, heavy pumps, open vessel diam. 600 x 800 mm, Danfoss frequenzer, pressure adjuster, 2-step stainless platform with rail, top fabric reel-infeed, combined piping, etc dimensions approx. 6250x 2250x 3100 mm.
Also available:
- 2012 Benninger / Kusters LT-TB-AR high speed continuous (wide fabric) pre washing installation
- 2019 Noseda AUTOCLAVE TS 500 horizontal fabric dyeing installation
- 2004 (2x), 2000 and 1999 (3x) Then AFT900 full stainless 4-fold horizontal rope dyeing installation
- 2004 Monforts MONTEX 6000-10F TWIN-AIR stenter line
- 2017 Monforts MONTEX 12 G/K stenter line
- 2007 Mahlo CIS-12 /WIS-12 color inspection system
- 2013 Bianca J-Box fabric rope/string opener/cutting machine
For more detailed machine information, output and specifications, to schedule an on-site inspection and/or direct sale price quotations please contact us via sales@assetsforsale.com. The machine's availability is subject to ongoing private treaty.
* Please note that this description has been translated automatically. The information in this listing is only indicative and is subject to change at any time without notice. Contact us for further information.
