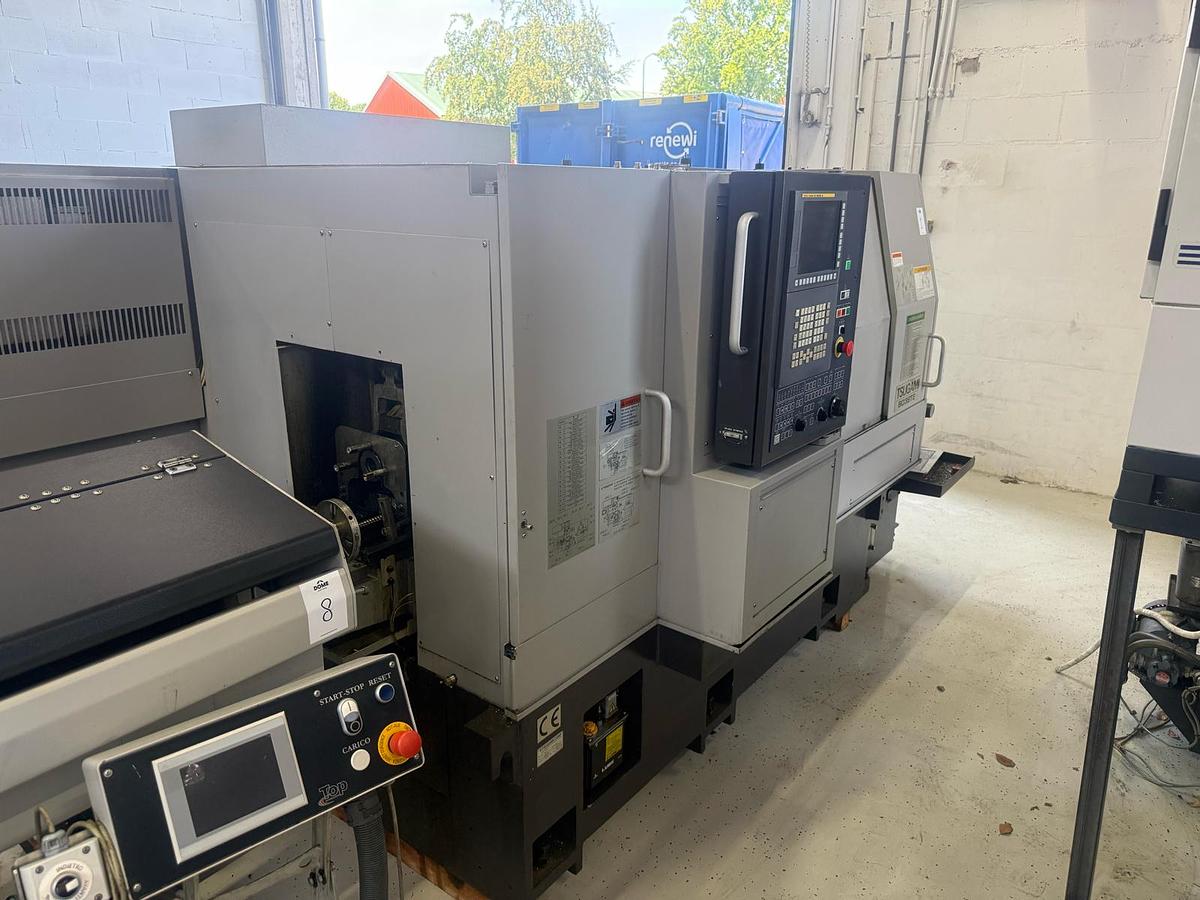

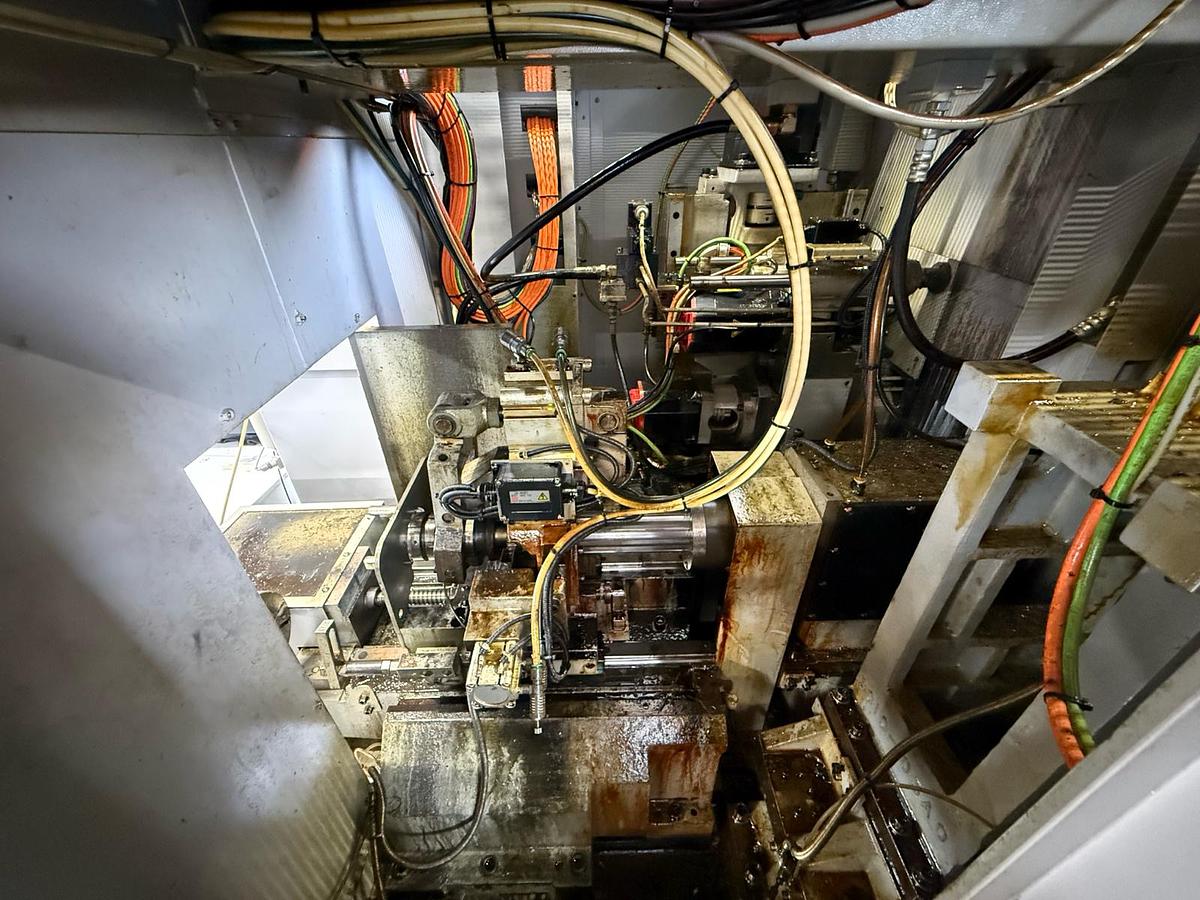

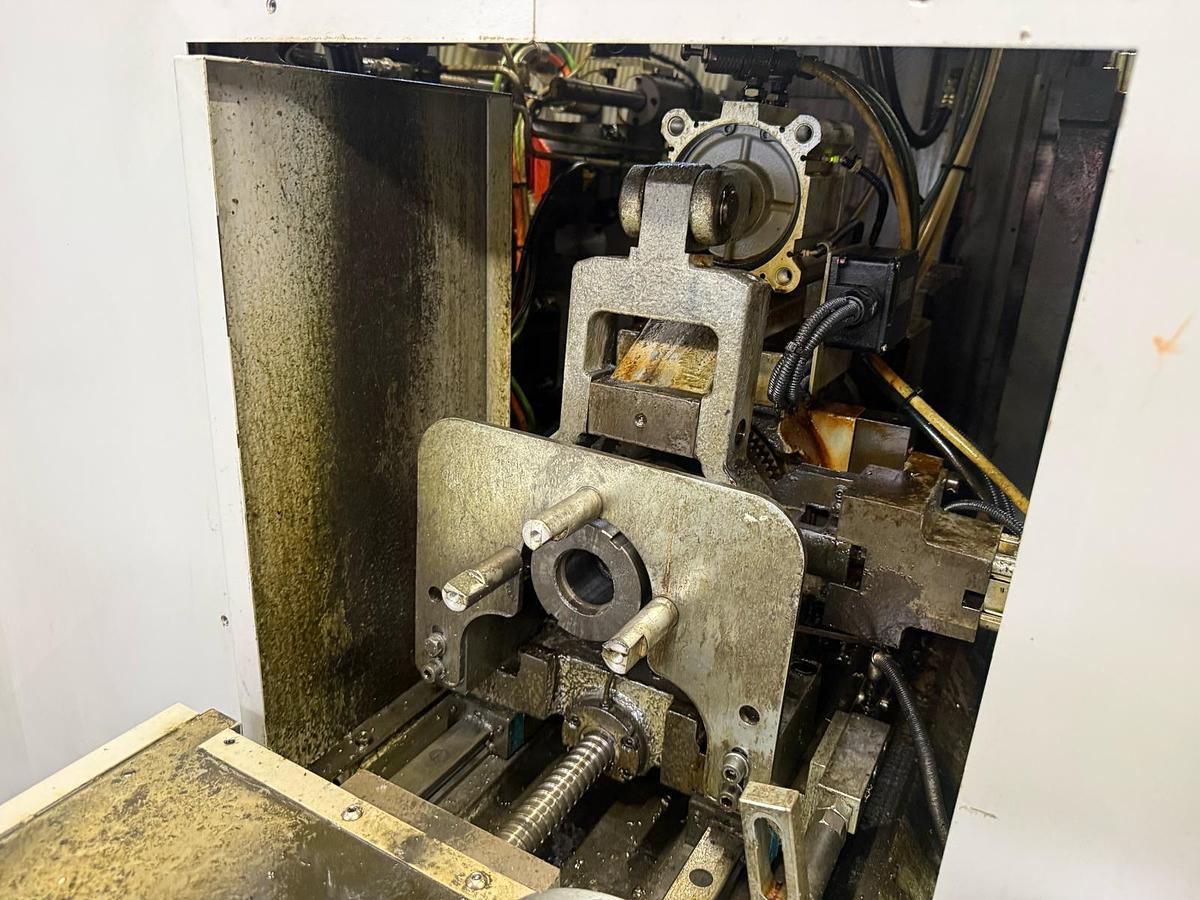

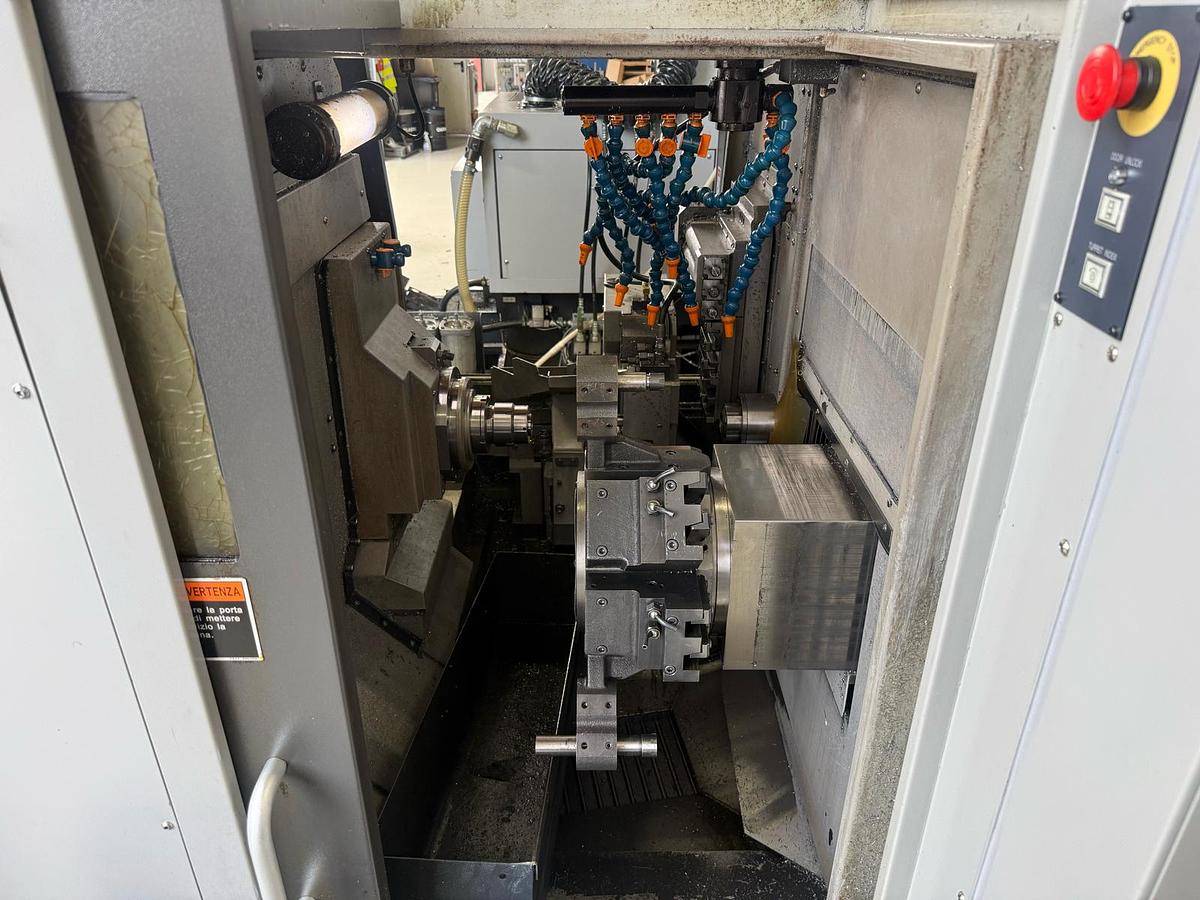

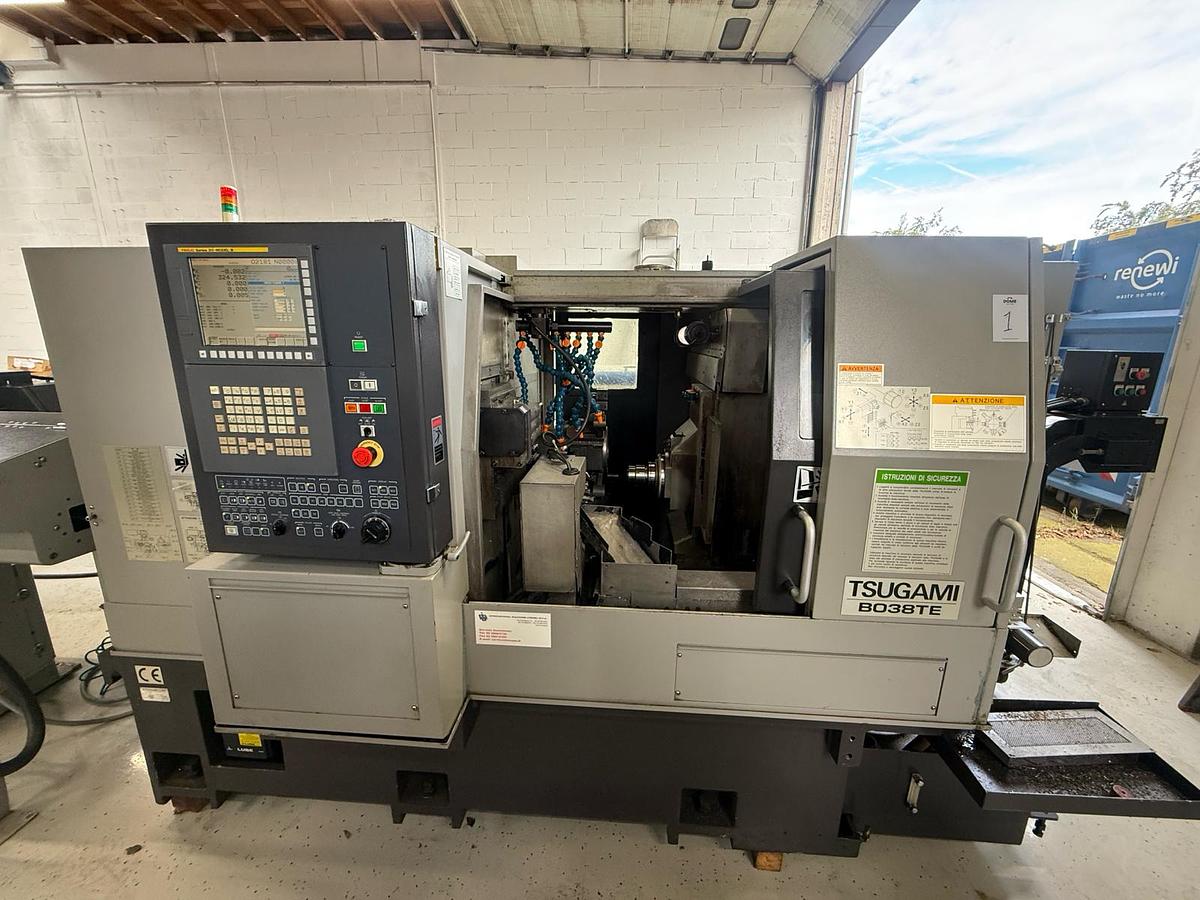

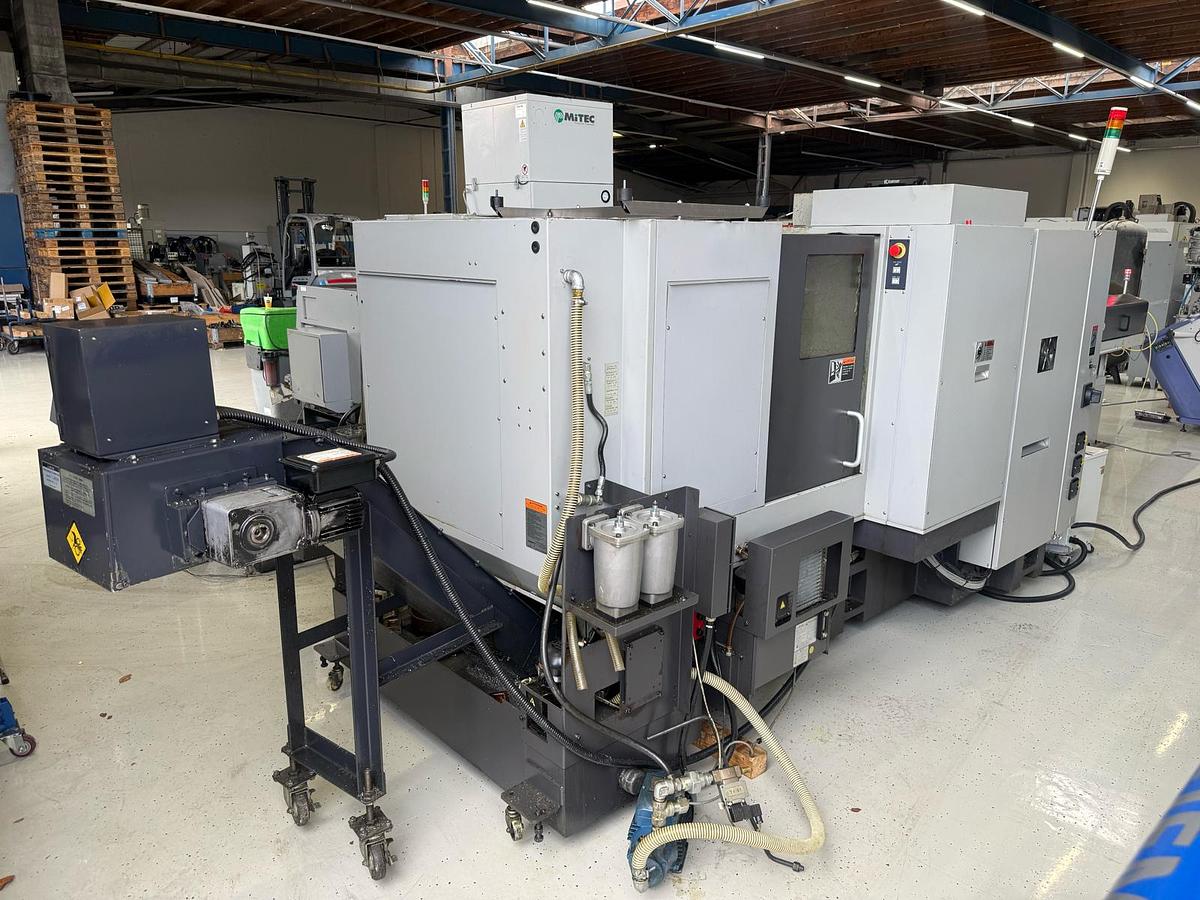

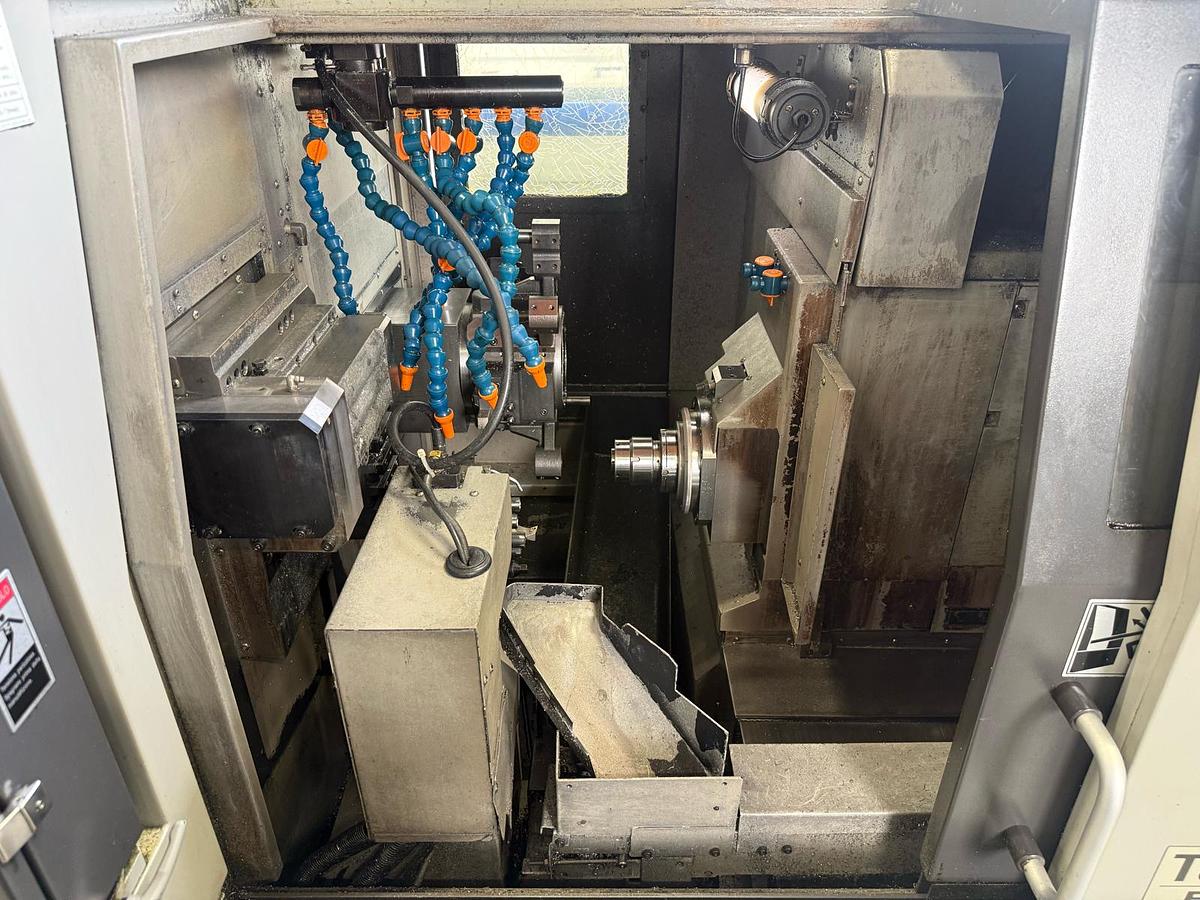

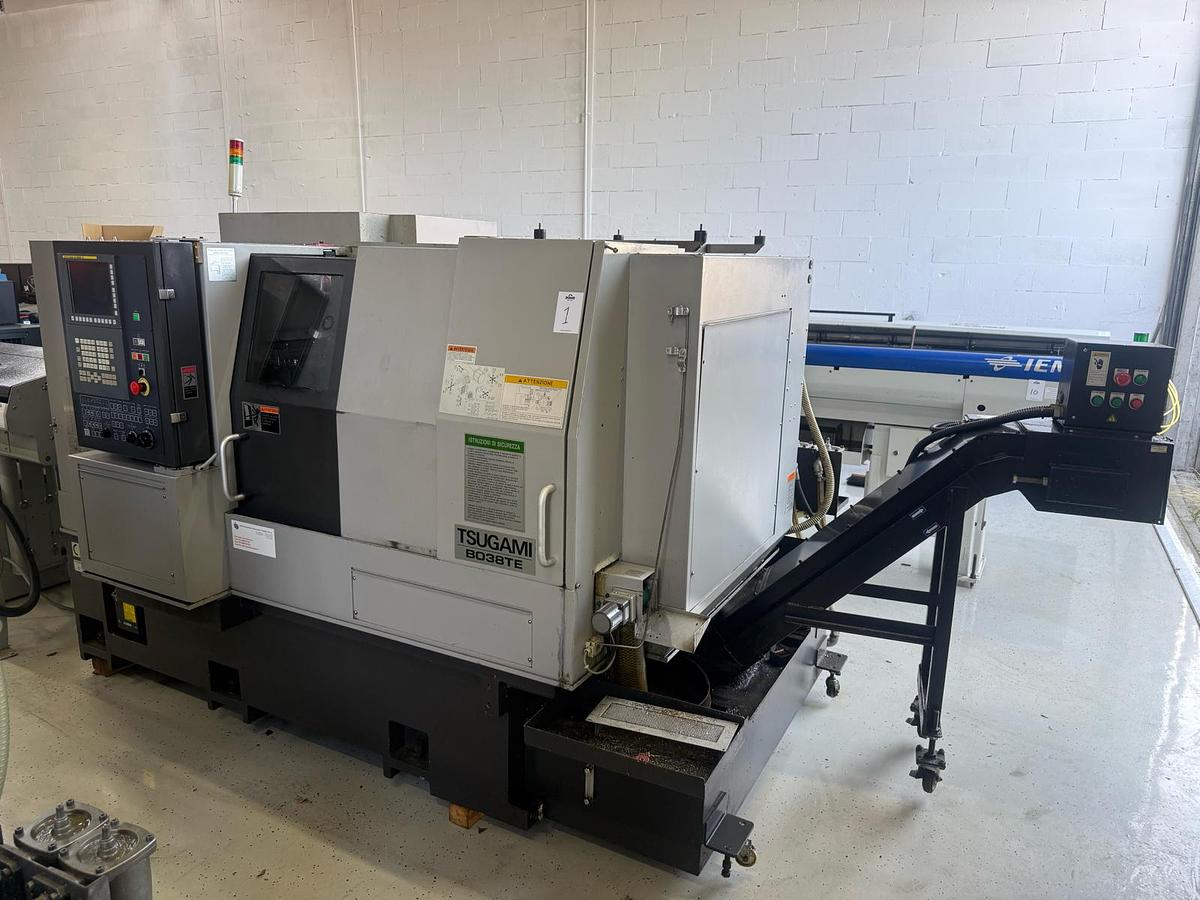

2017 Tsugami B038TE CNC Swiss-type automatic lathe including Automatic Bar Feeder
Specifications
| Manufacturer | Tsugami |
| Model | B038TE |
| Year | 2017 |
| Condition | Used |

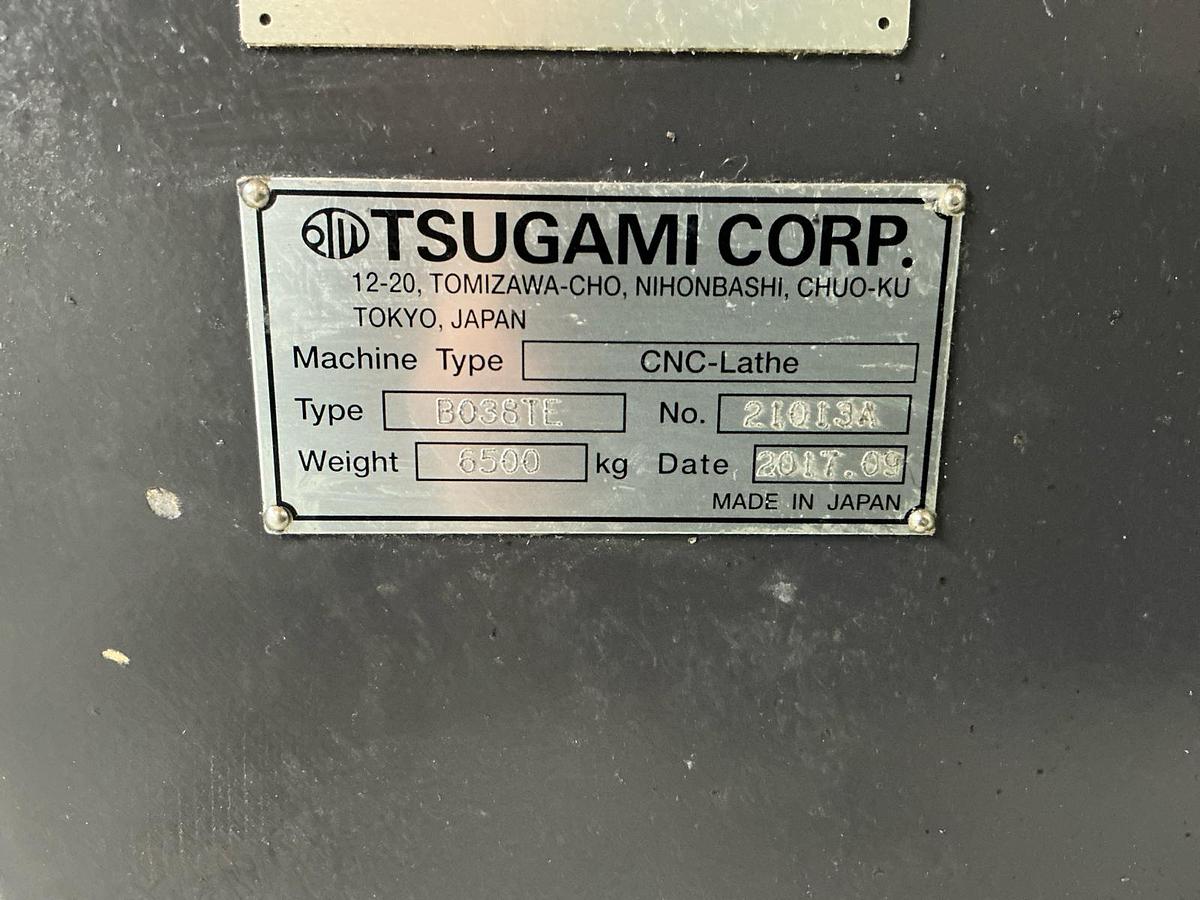

| Serial Number | 21013A |
| Availability | Directly available |
| Owned by | PIPM Group |
| Max. bar diameter | Ø8 to Ø38 mm |
| Max. workpiece length | 250 mm |
| Max. drilling capacity (main spindle) | Ø38 mm |
| Max. tapping capacity (main spindle) | M14 |
| Max. clamping diameter (back spindle turret) | Ø38 mm |
| Hours of operation | 5,550 |
| Weight | 6,500 kg |
| Max. spindle speed | 5,000 min⁻¹ |
| Spindle capacity | 7.5/11 kW |
| Rated torque | 70 N·m |
| Drive | Belt drive |

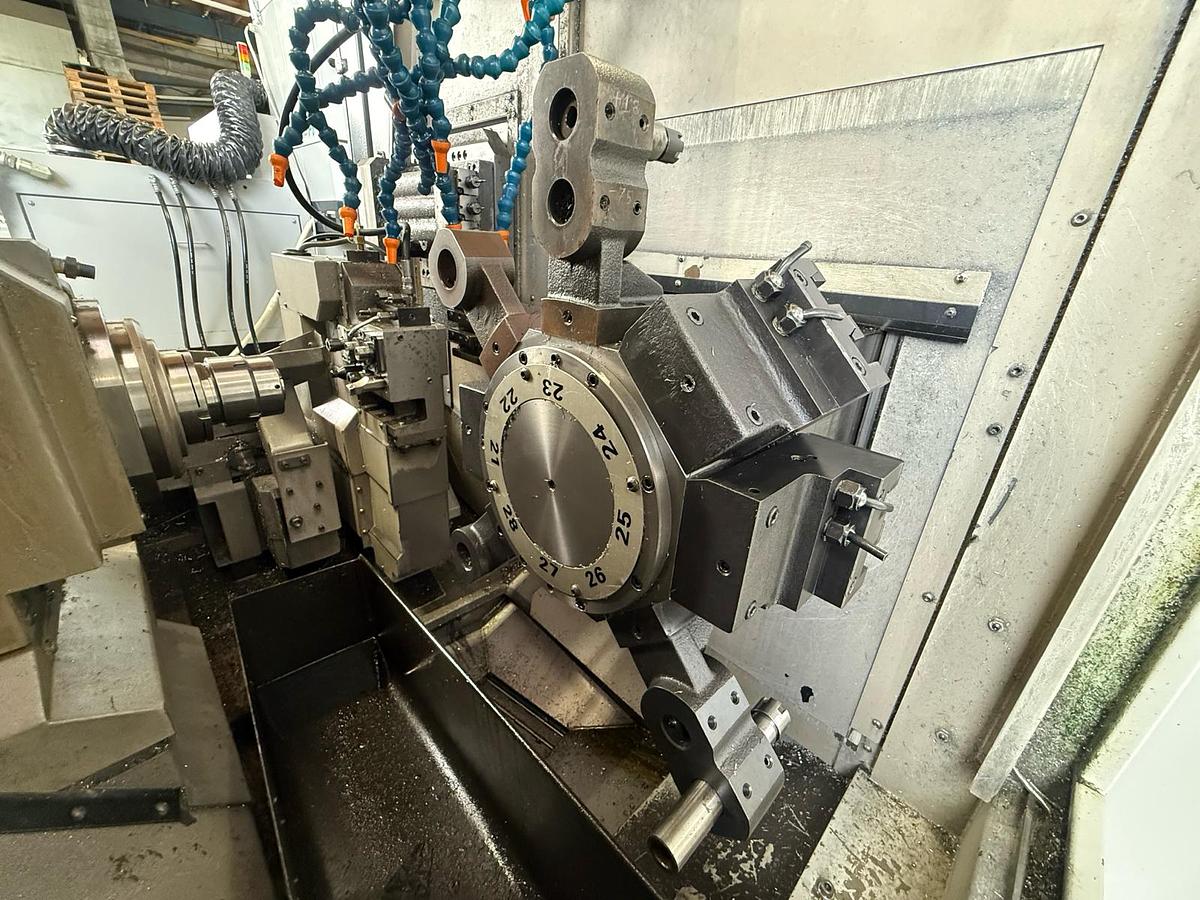

| Number of tools | 7 tools |
| Number of stations | 8 |
| Drive (T2) | Independent drive |
| Number of driven tools | 8 |

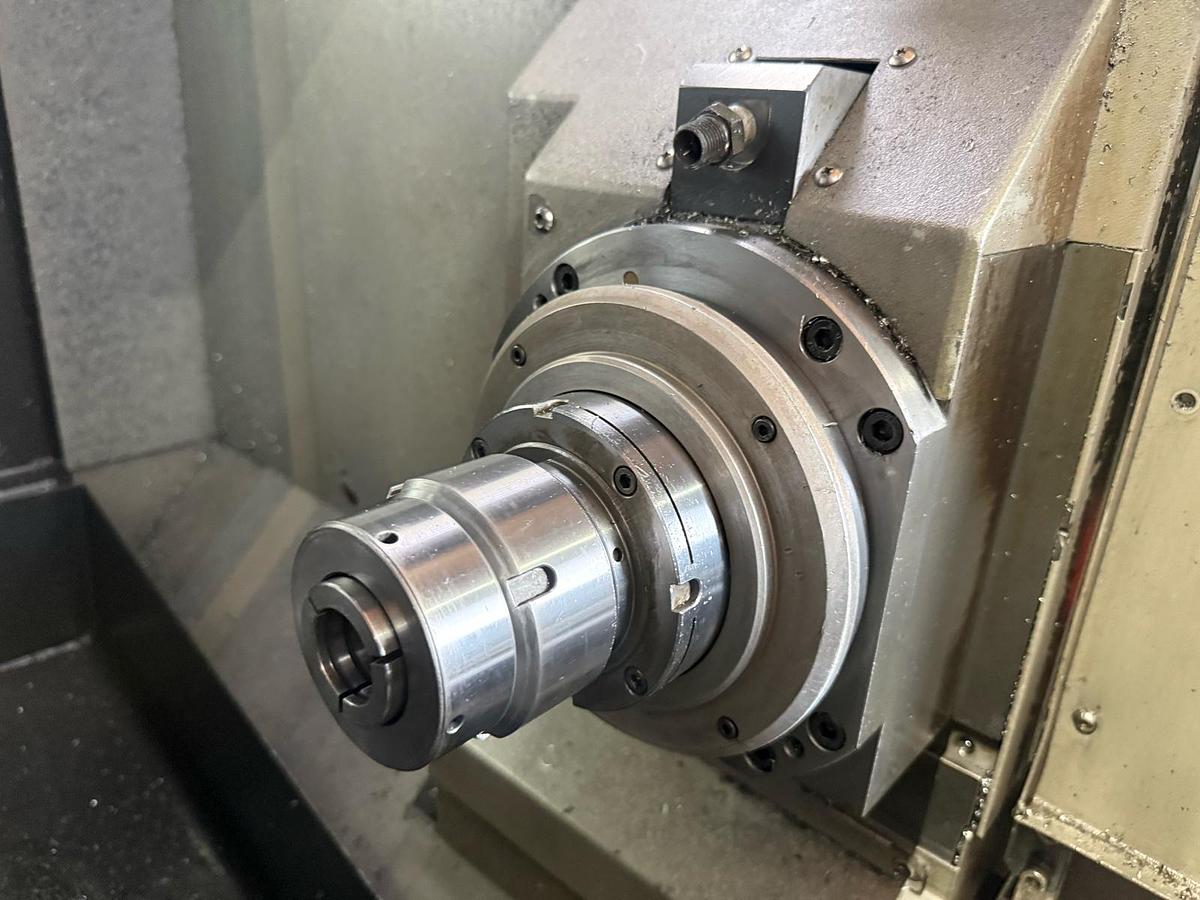

| Max. spindle speed (Secondary spindle) | 7,000 min⁻¹ |
| Spindle capacity (Secondary spindle) | 3.7/5.5 kW |
| Rated torque (Secondary spindle) | 49 Nm |
| Drive (Secondary spindle) | Integrated motor |

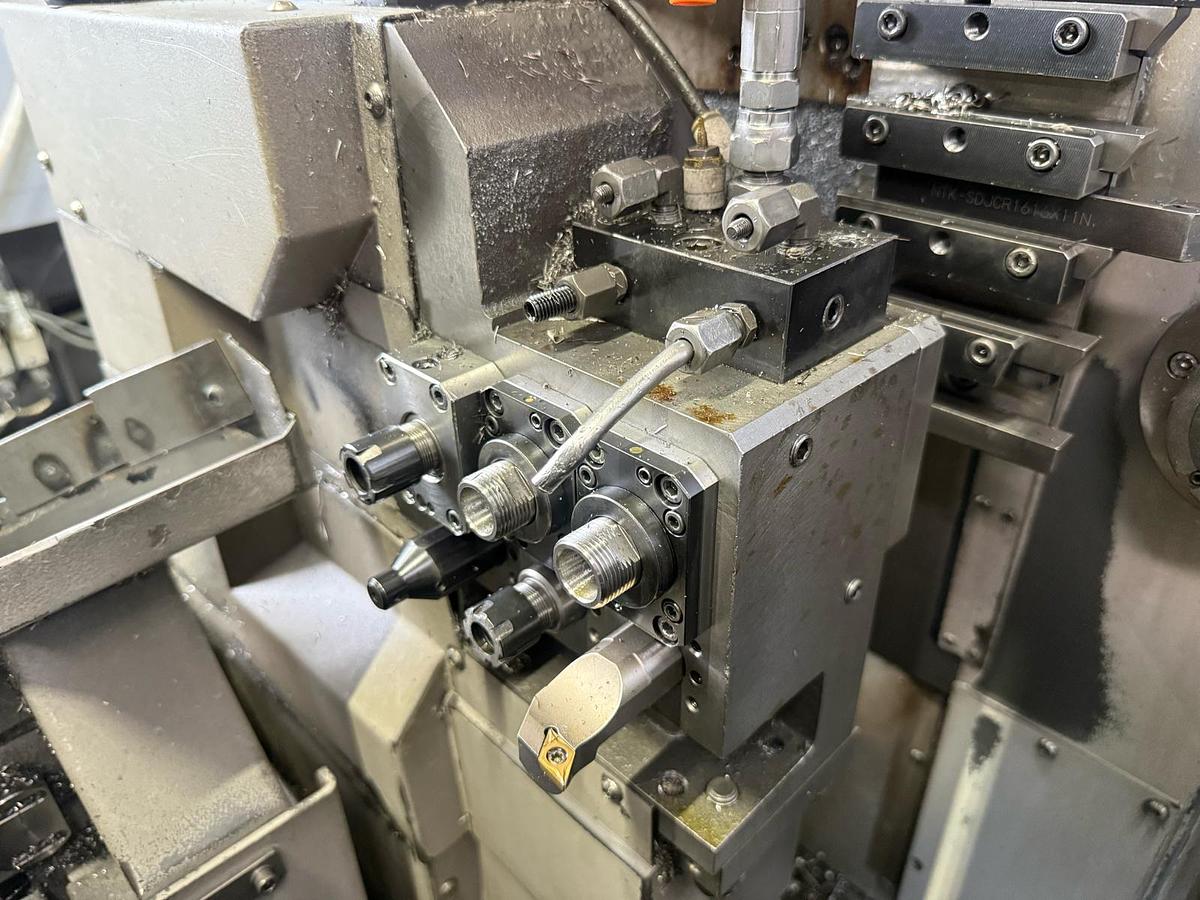

| Tool holder | Fixed: 3, driven: 3 |
| Max. tool holder speed | 6,000 min⁻¹ |
Description
For sale: 2017 Tsugami B038TE CNC Swiss-type automatic lathe including a 2018 TOP RES338SX Automatic Bar Feeder > modern metalworking machines and precision CNC lathes, originating from the recent bankruptcy of ALMEC, serviced and relocated to Mill (near Nijmegen) in the Netherlands.
Additional information:

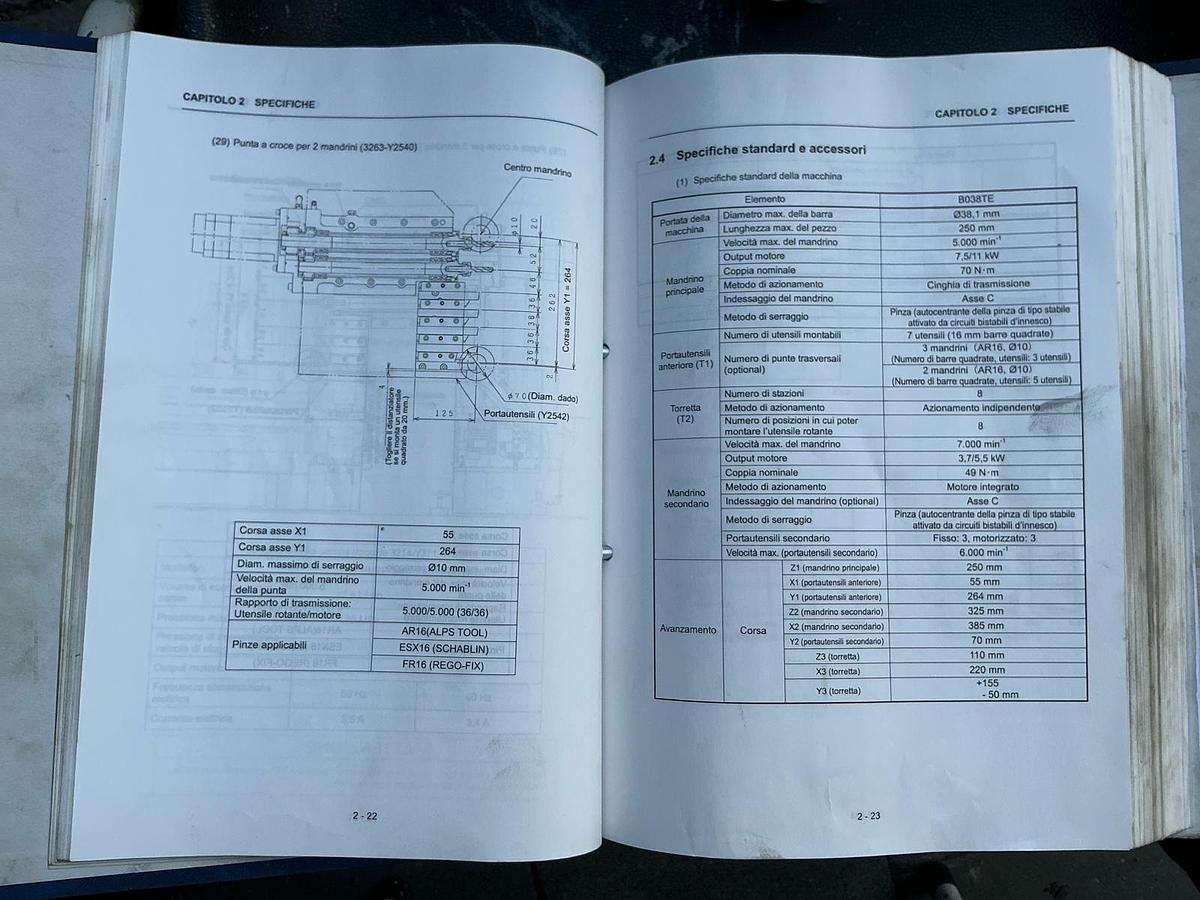

Feed/stroke;
Z1-axis travel (main spindle): 250 mm
X1-axis travel (front tool holder): 55 mm
Y1-axis travel (front tool holder): 264 mm
Z2-axis travel (secondary spindle): 325 mm
X2-axis travel (secondary spindle): 385 mm
Y2-axis travel (secondary tool holder): 70 mm
Z3-axis travel (turret): 110 mm
X3-axis travel (turret): 220 mm
Y3-axis travel (turret): +155 mm / -50 mm

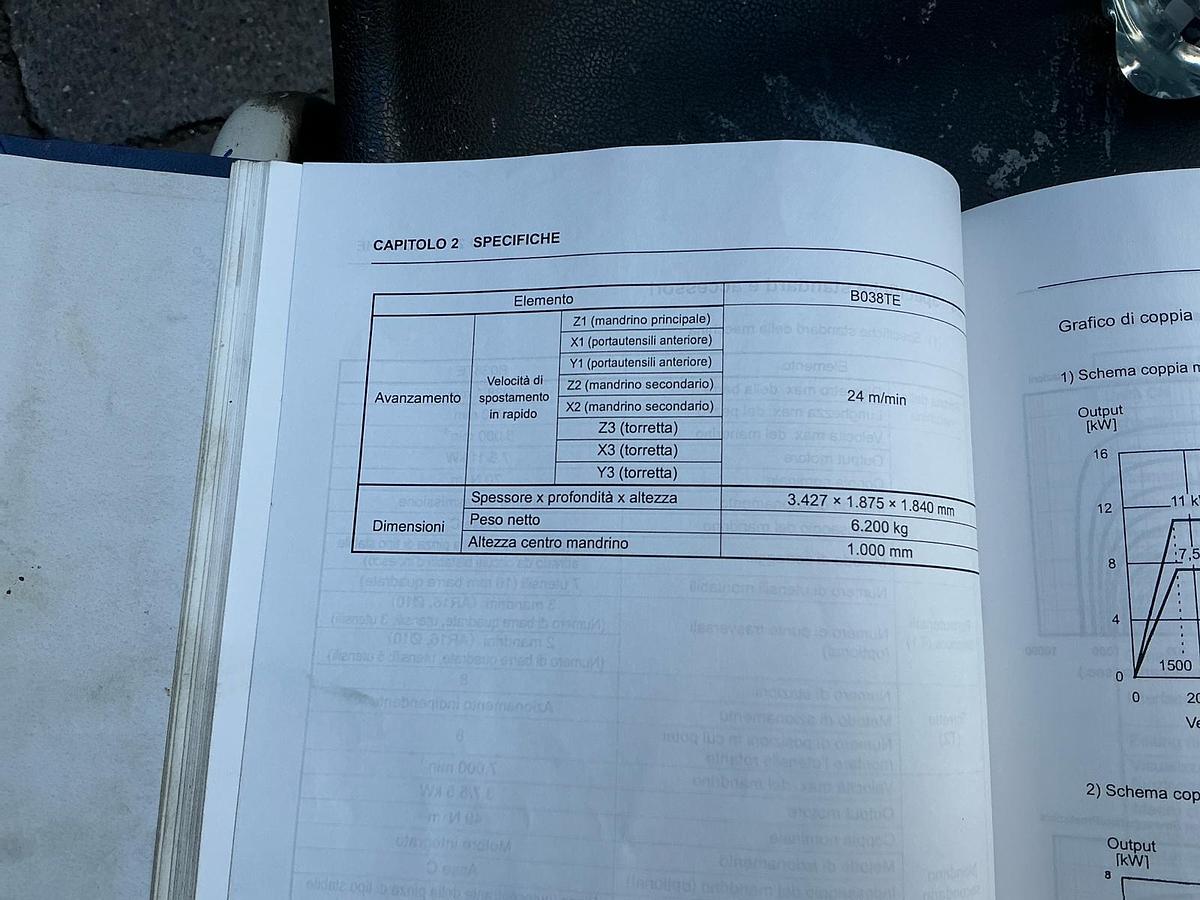

Rapid traverse: 24 m/min

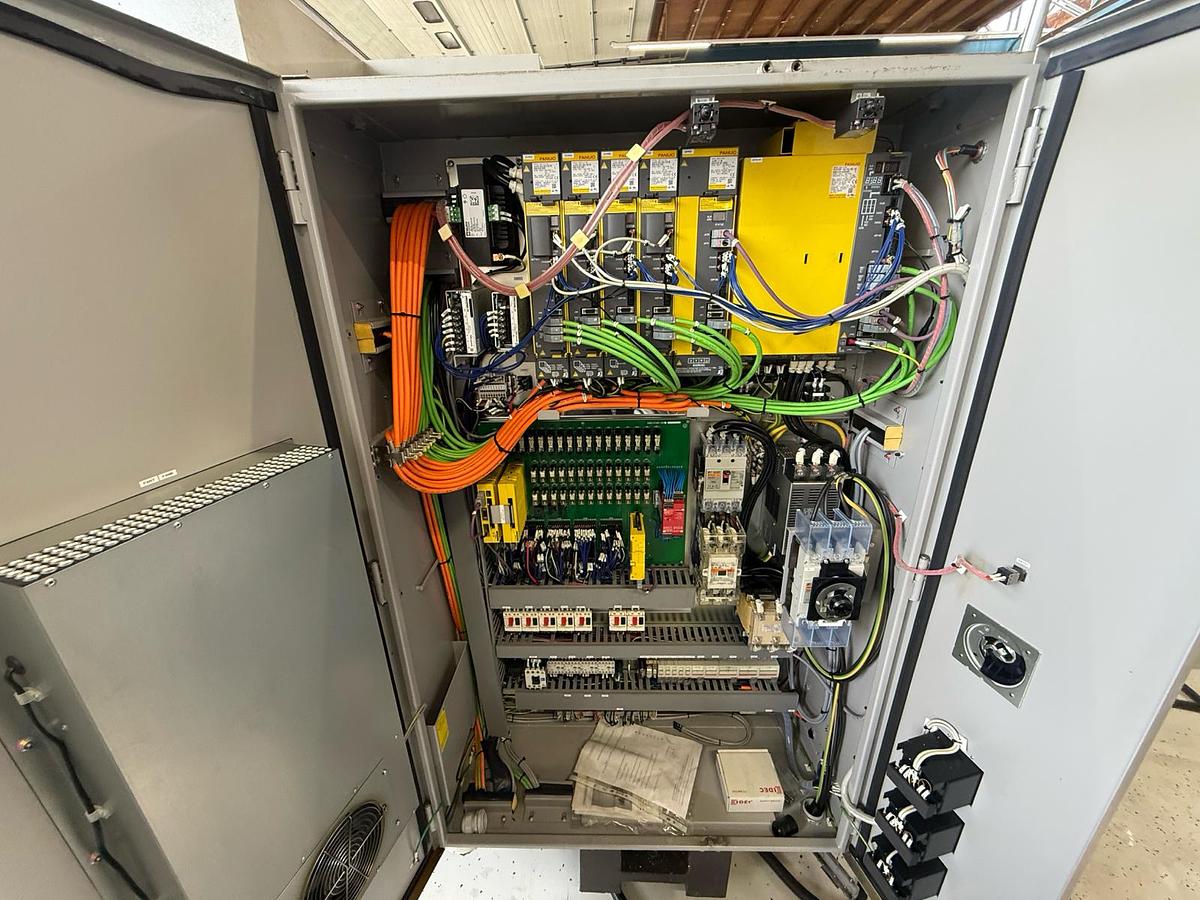

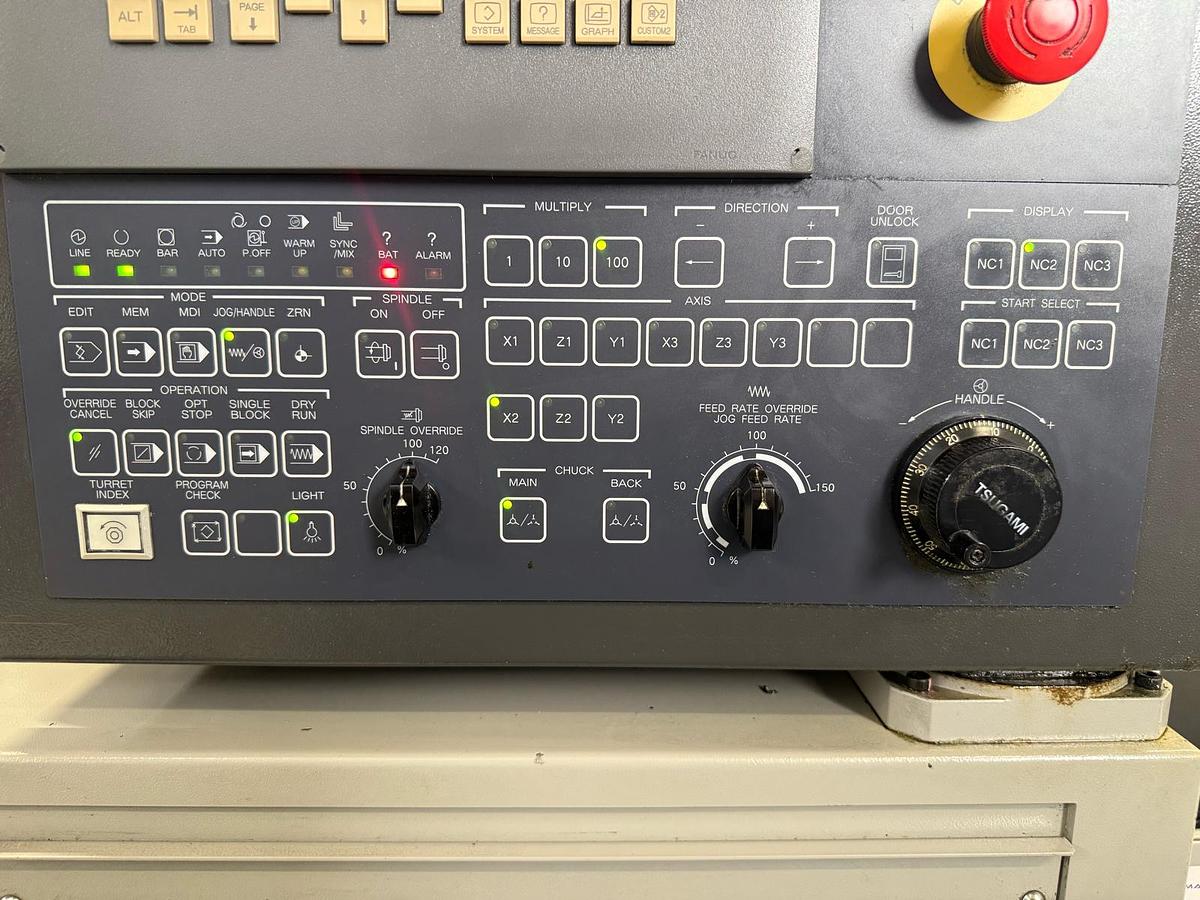

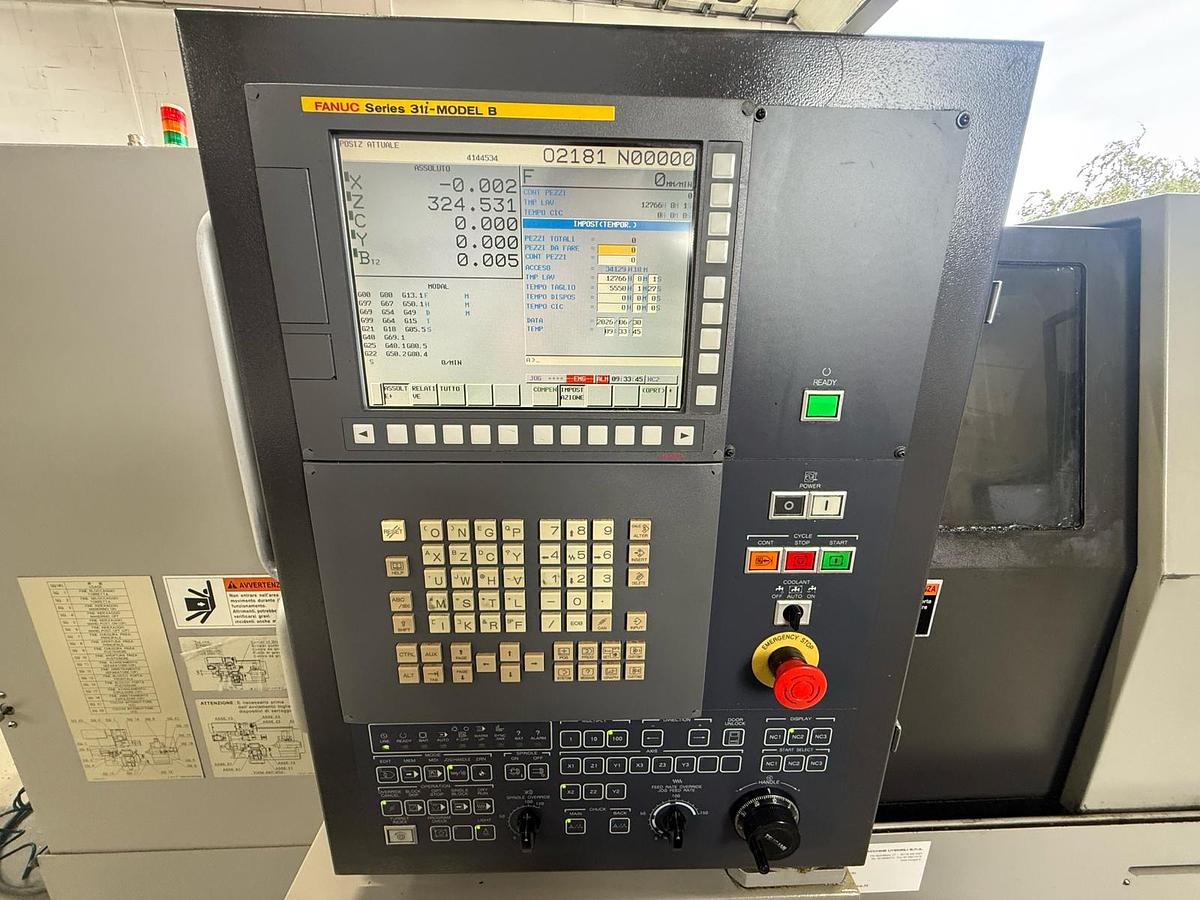

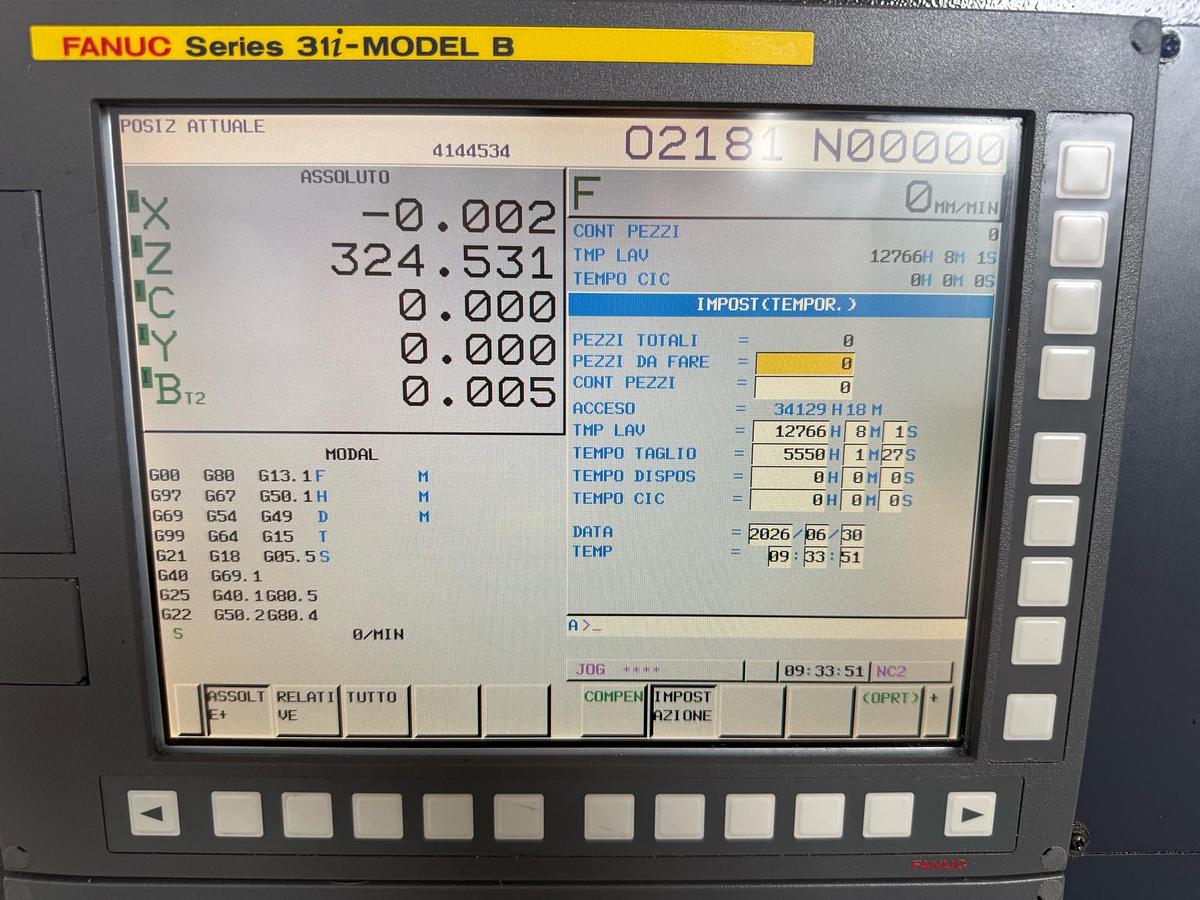

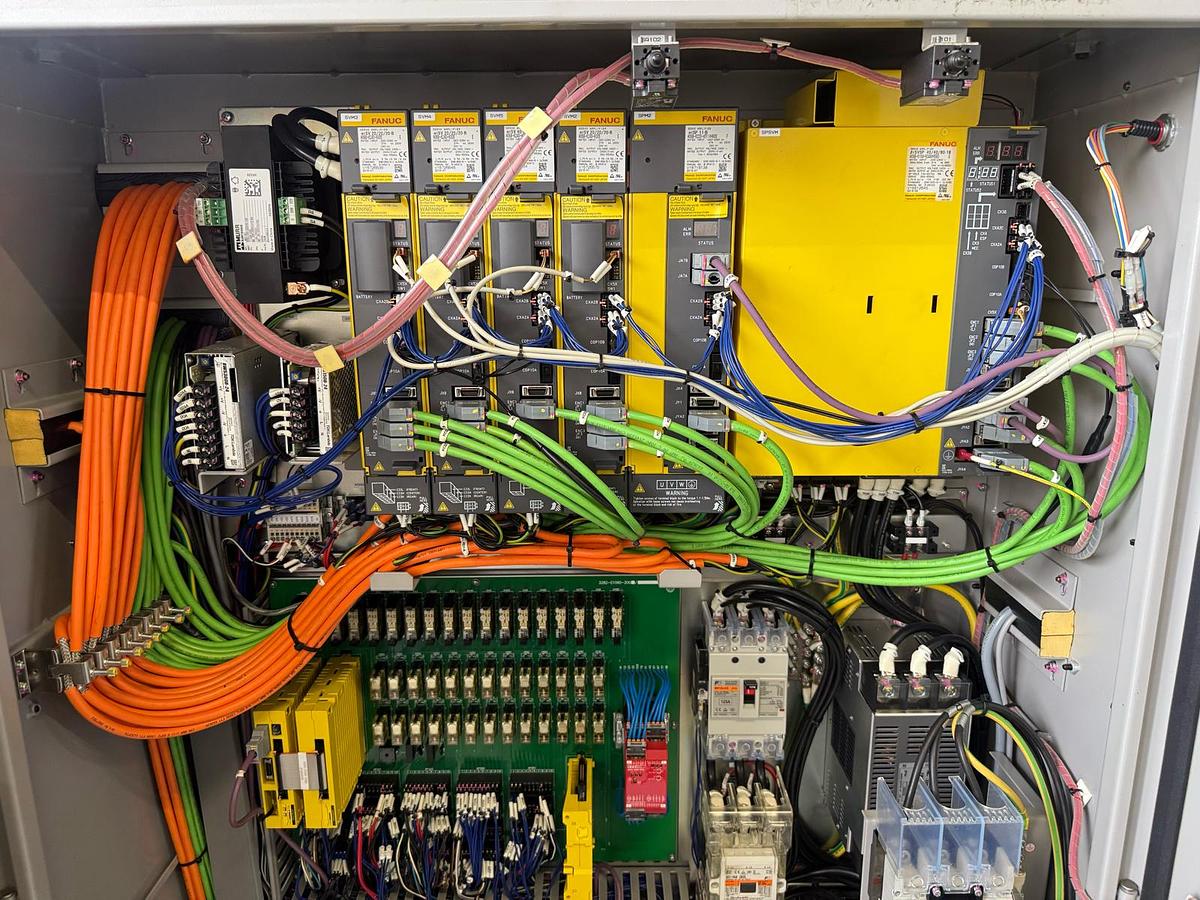

Control system: Fanuc Series 31i-MODEL B
Machine dimensions: 3,427 × 1,875 × 1,840 mm

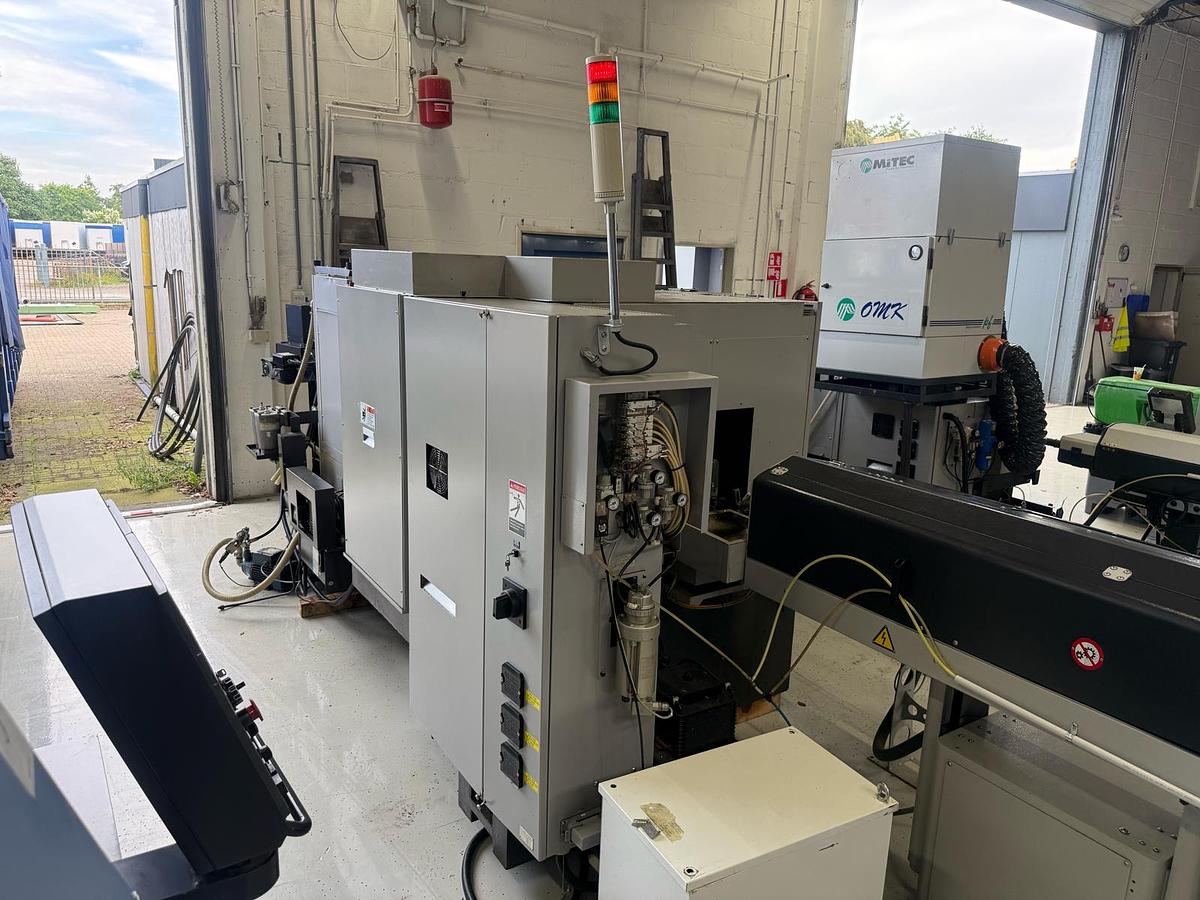

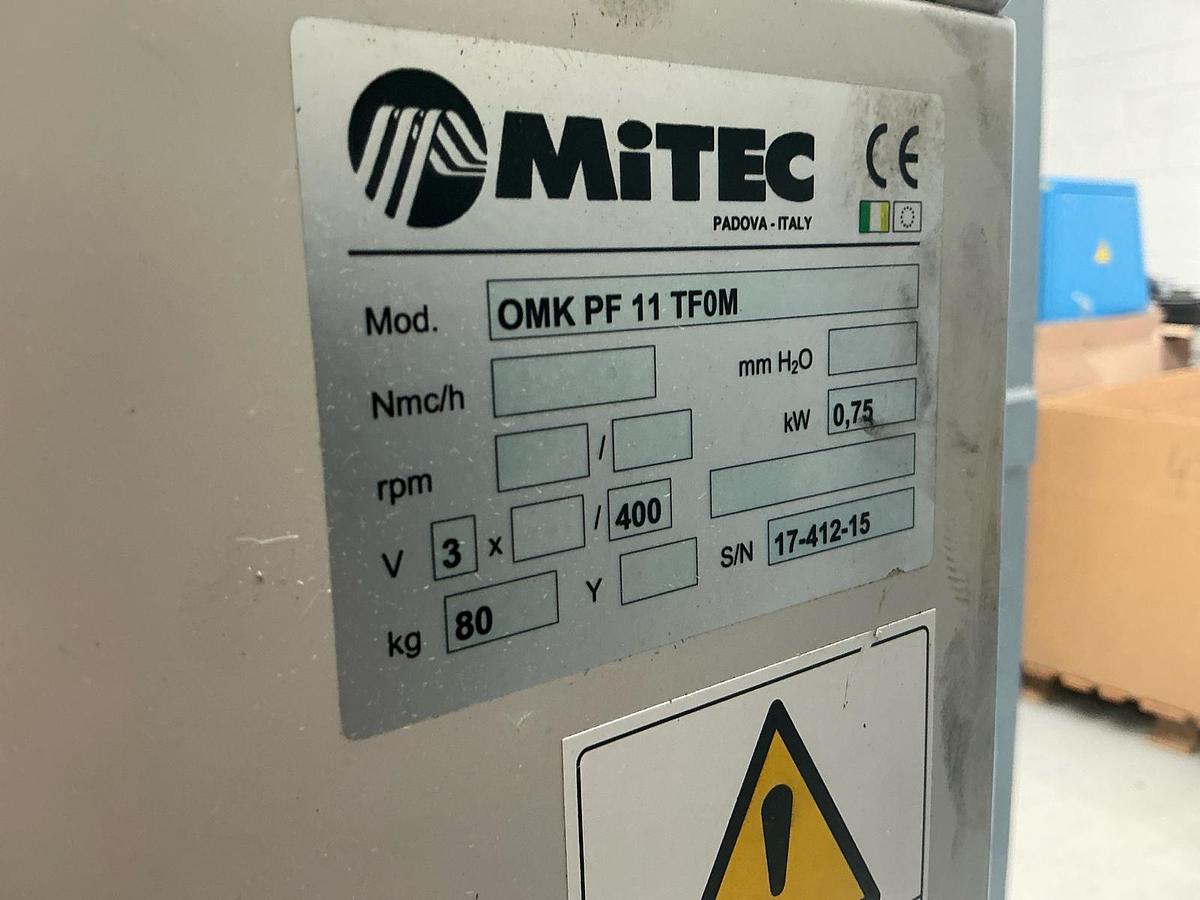

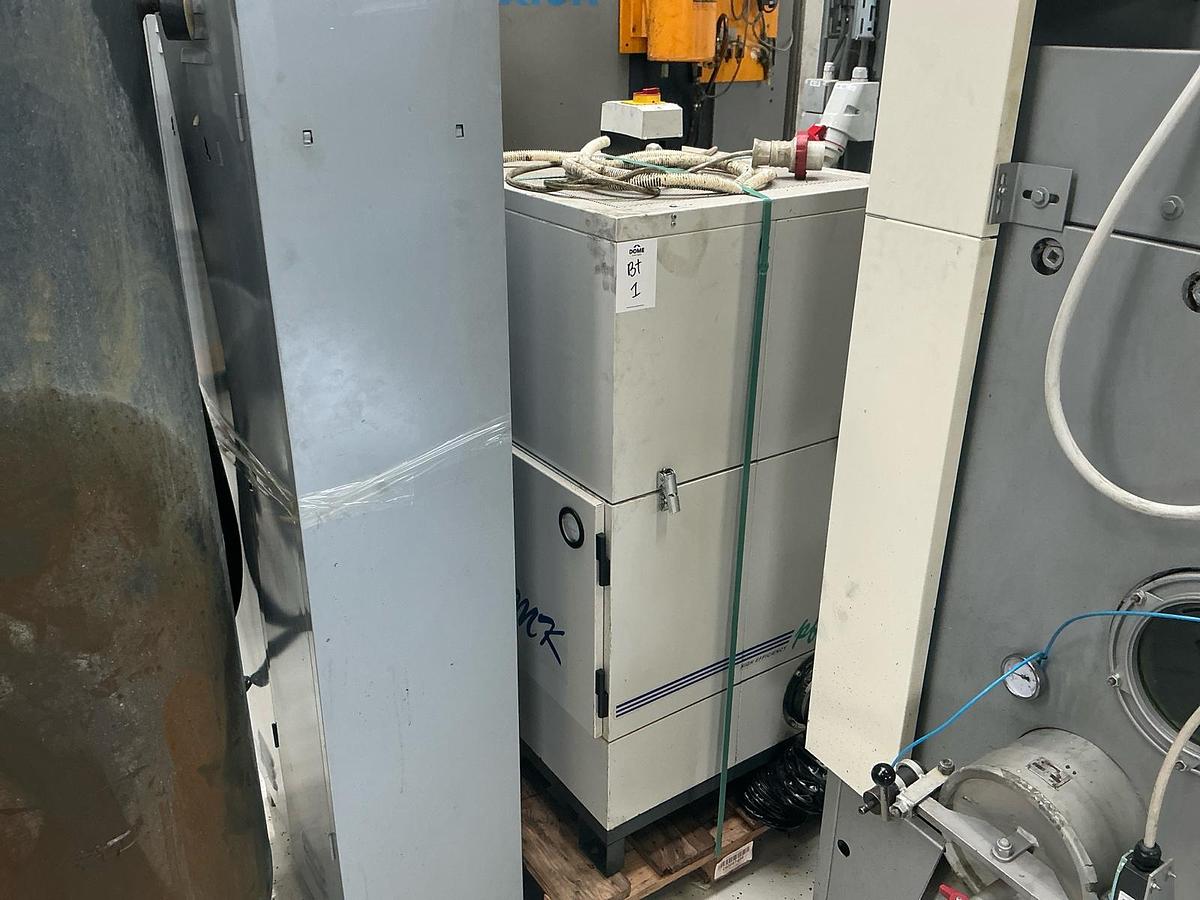

Equipped with: Chip conveyor, Mitec OMK PF 11 TF0M filter.

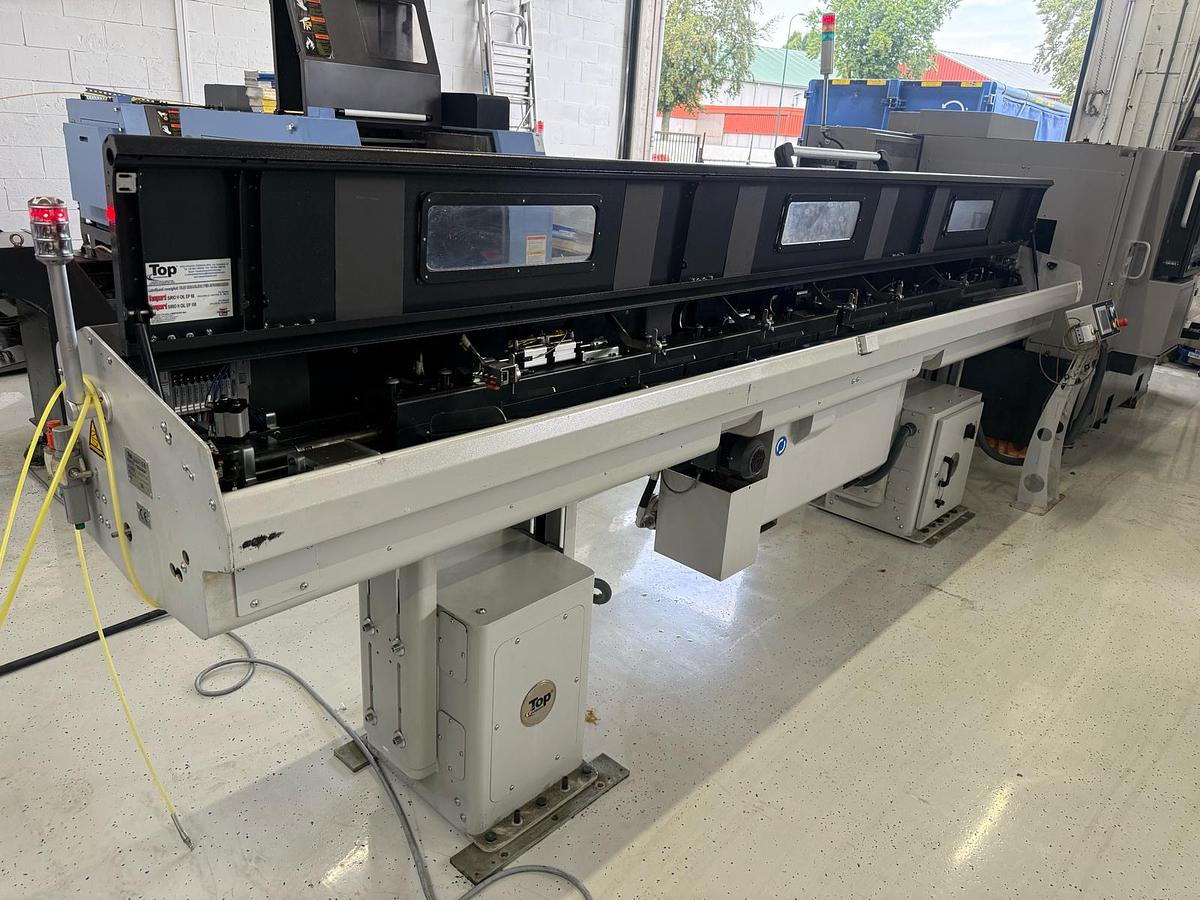

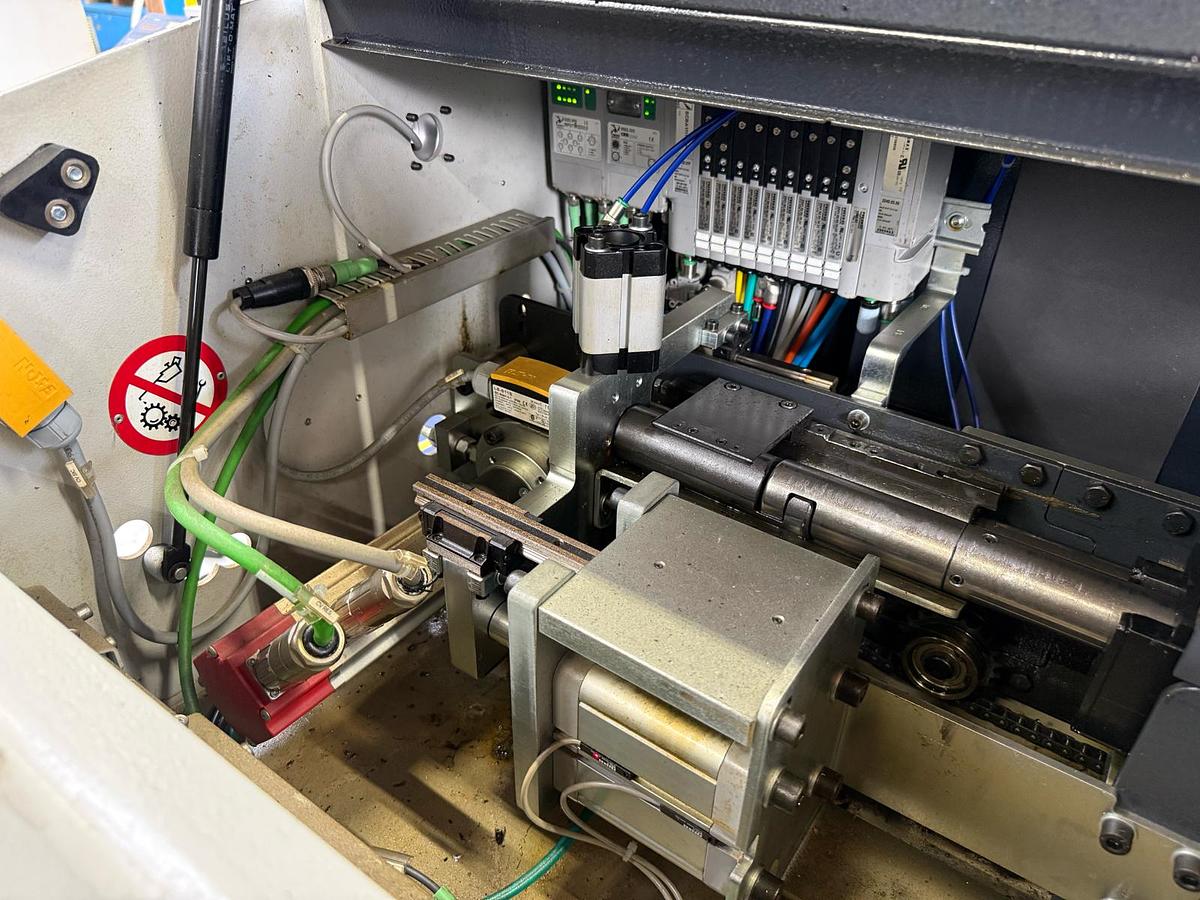

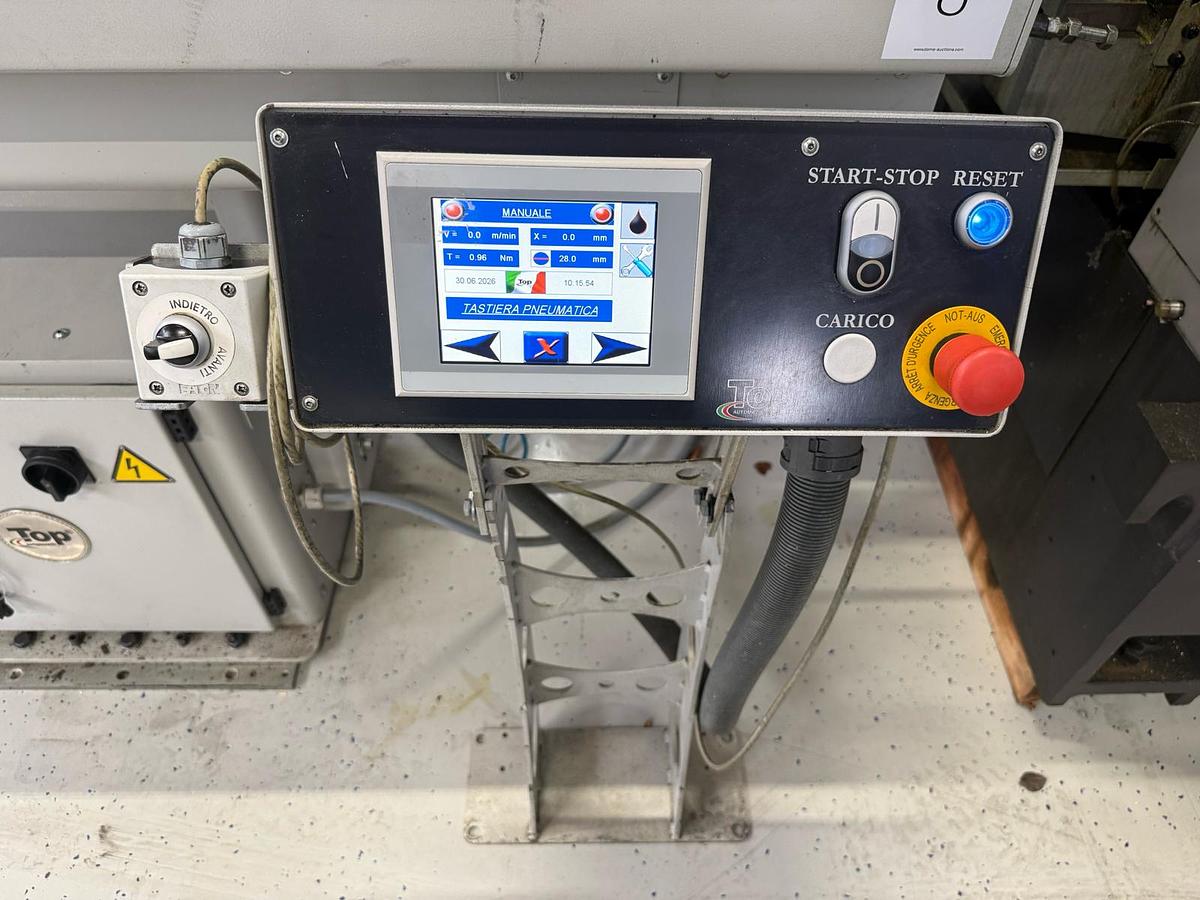

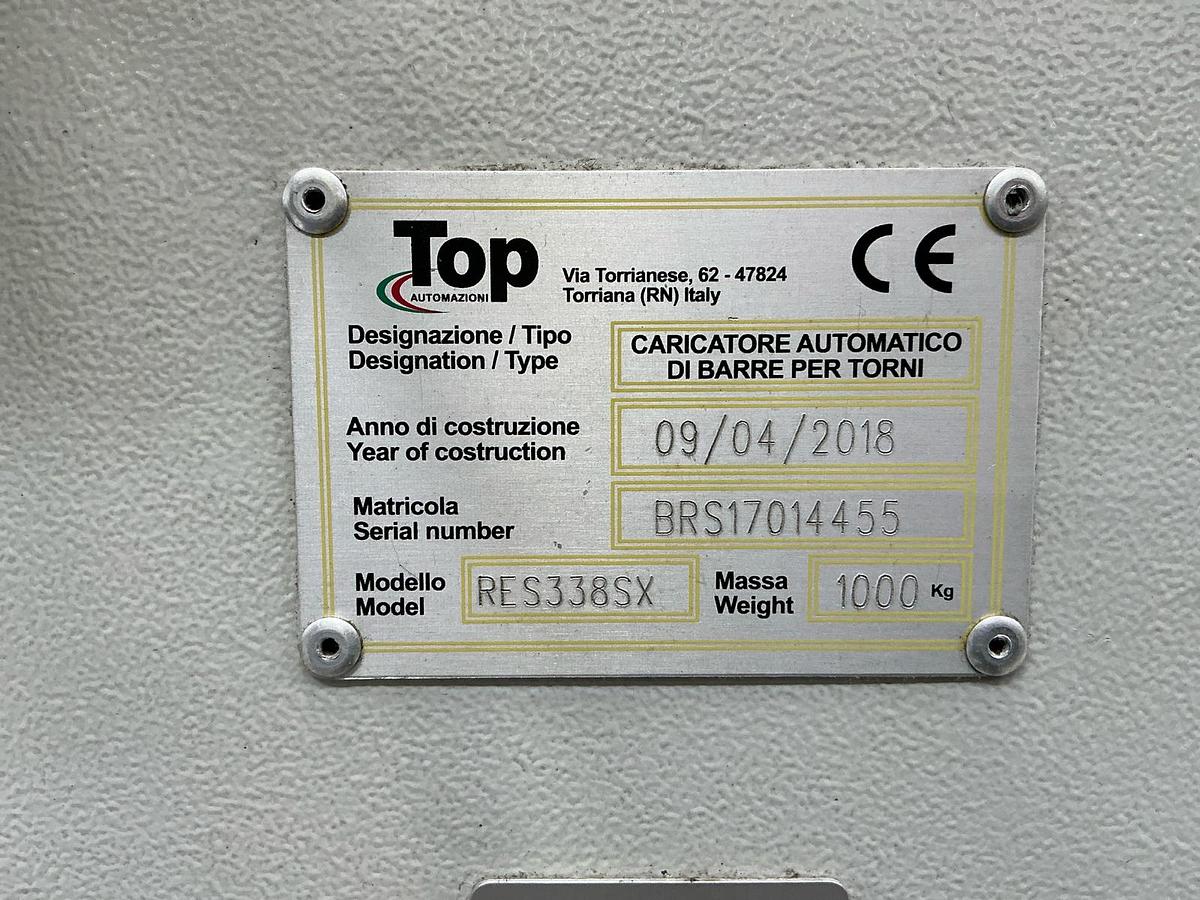

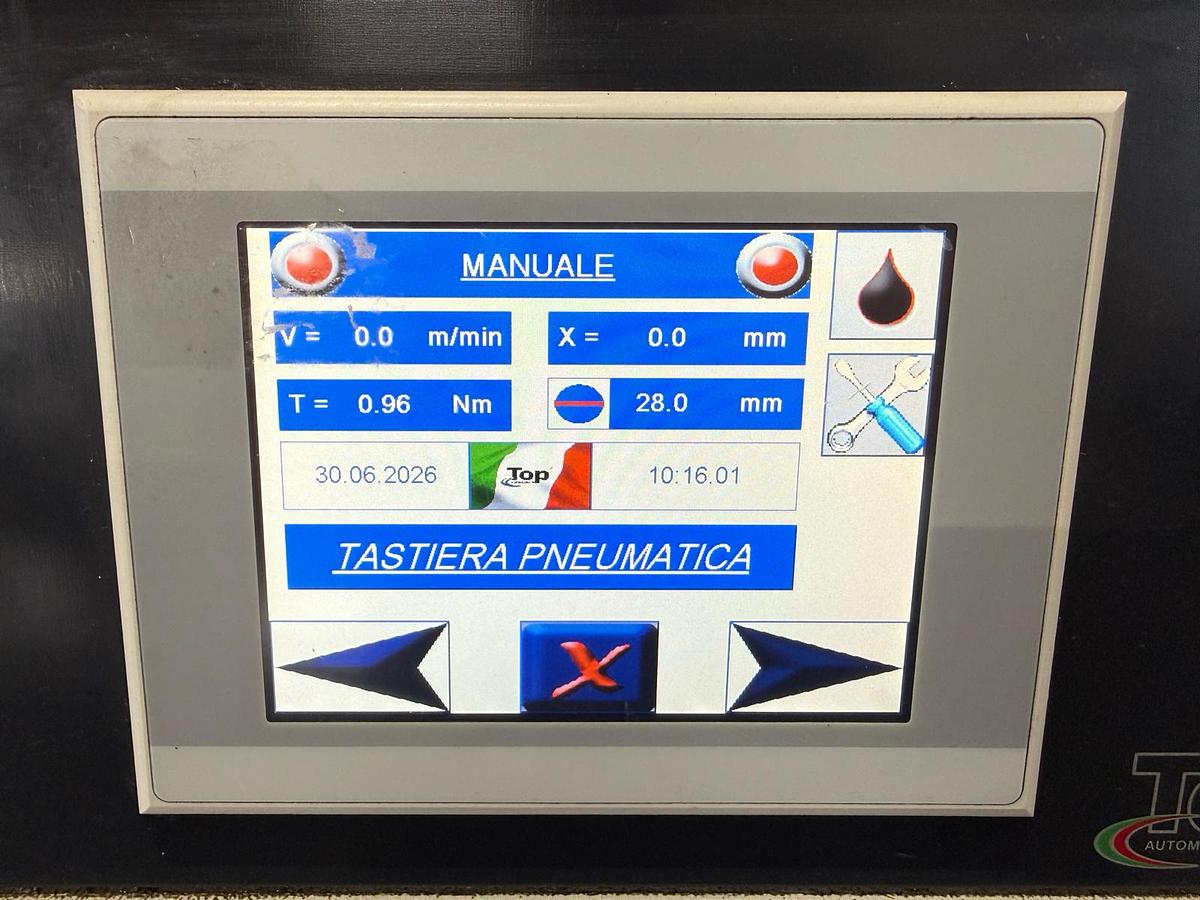

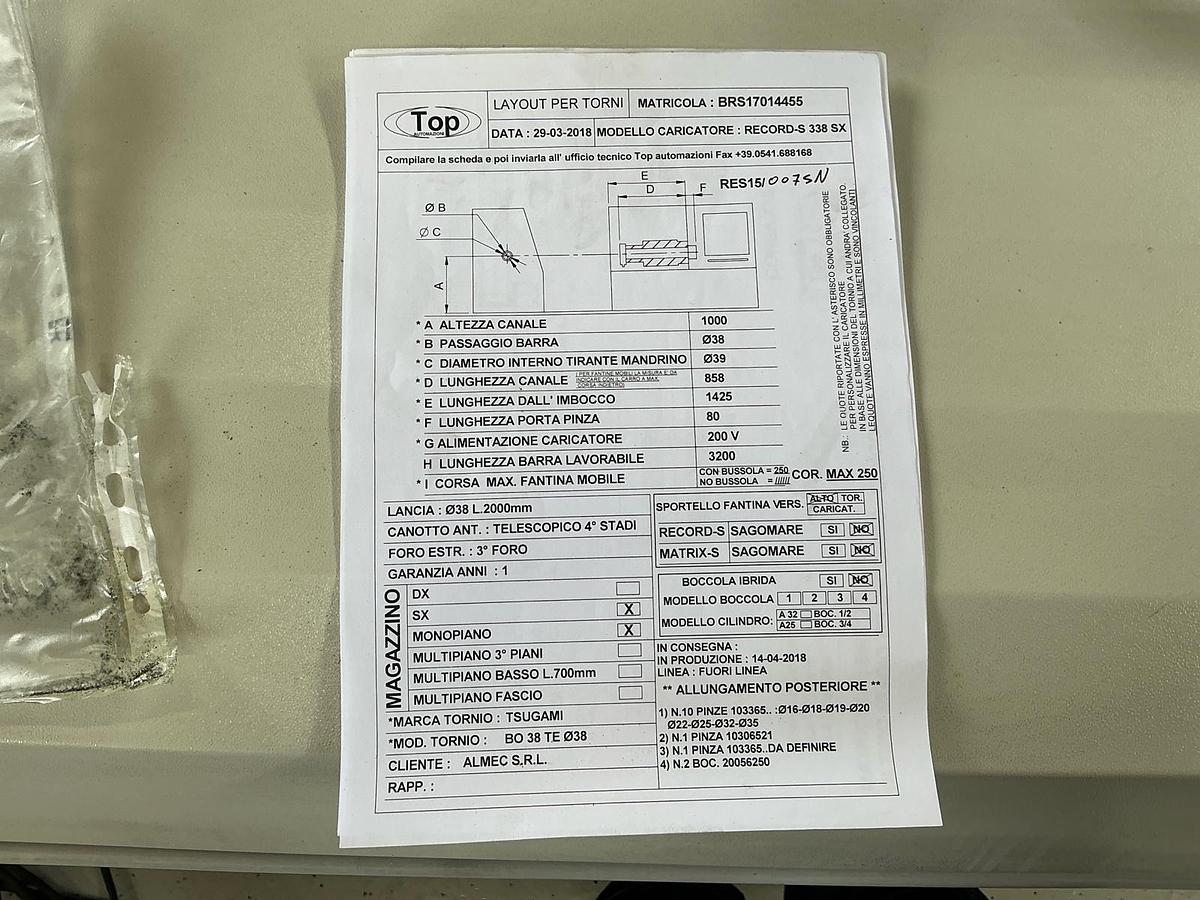

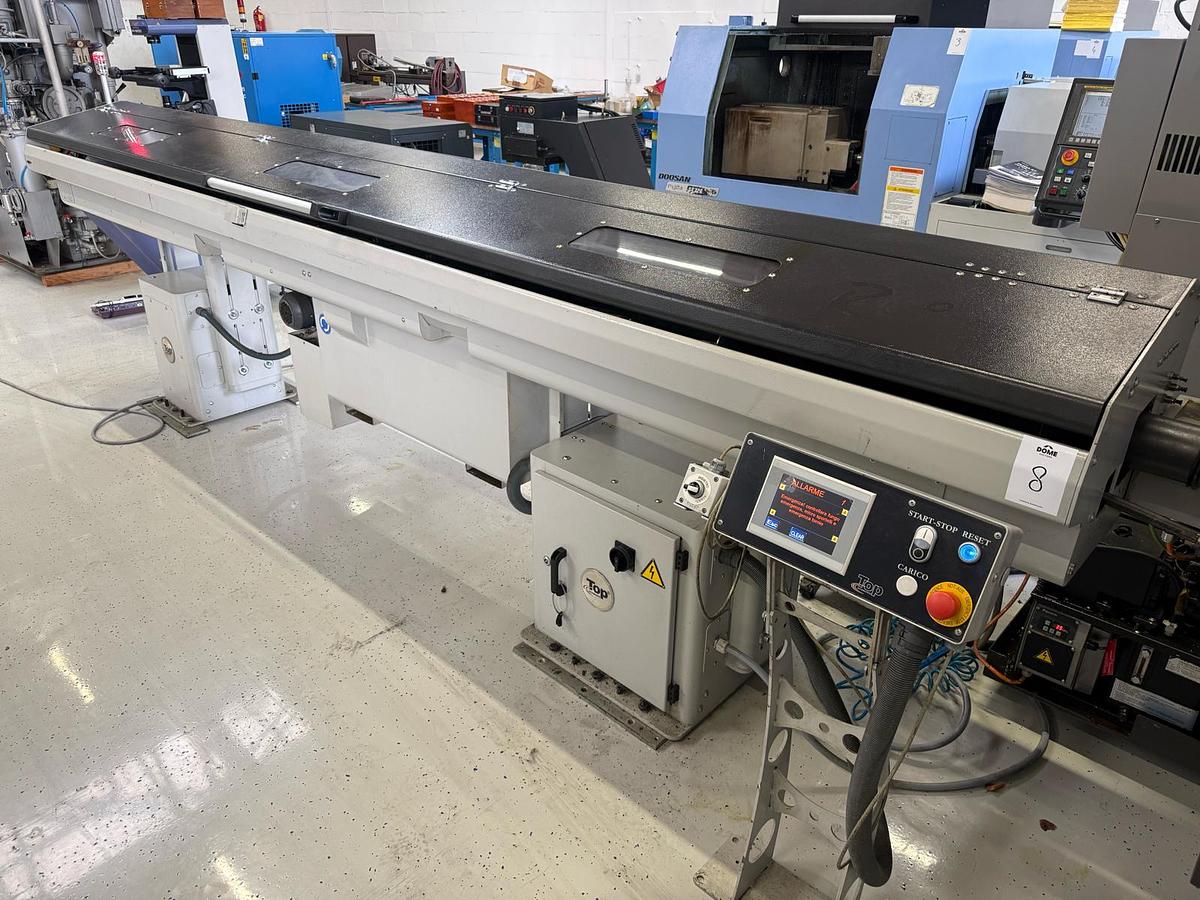

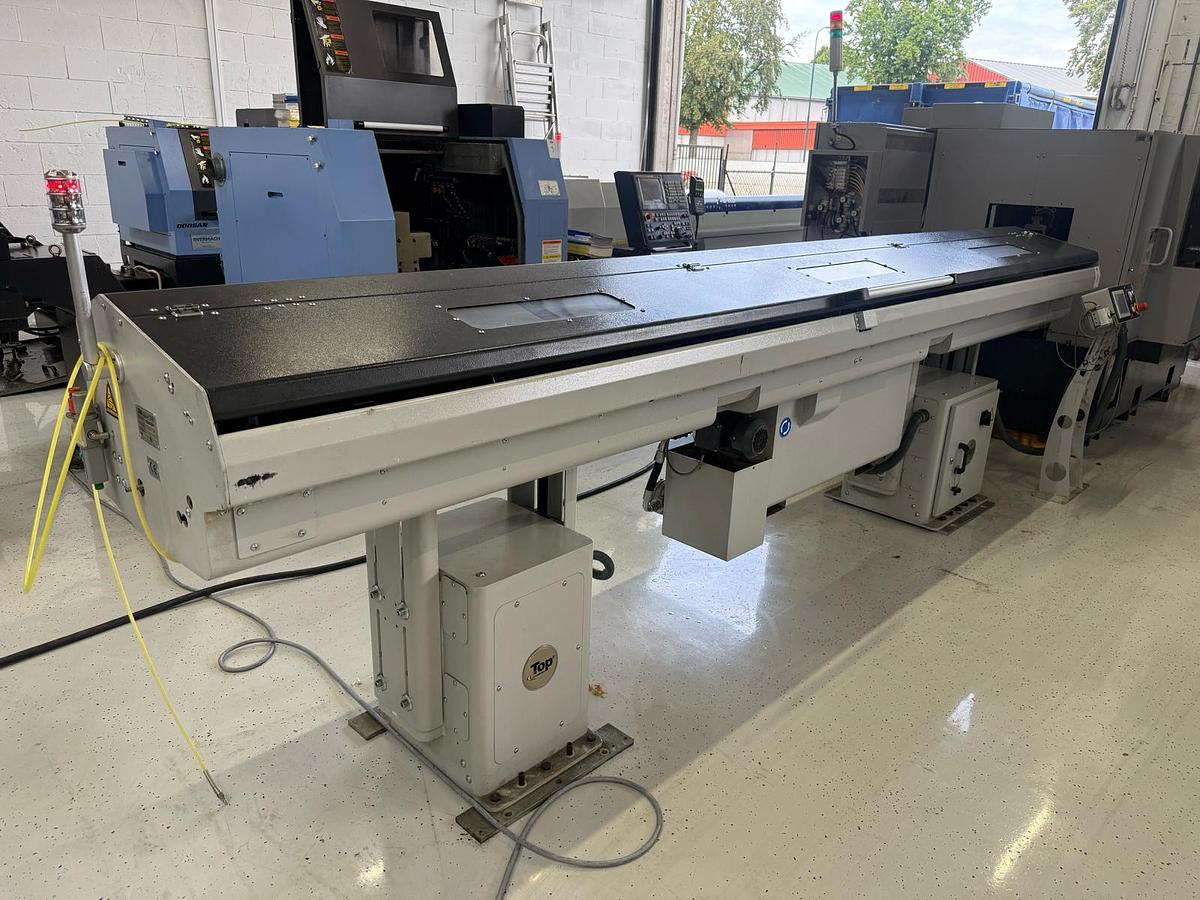

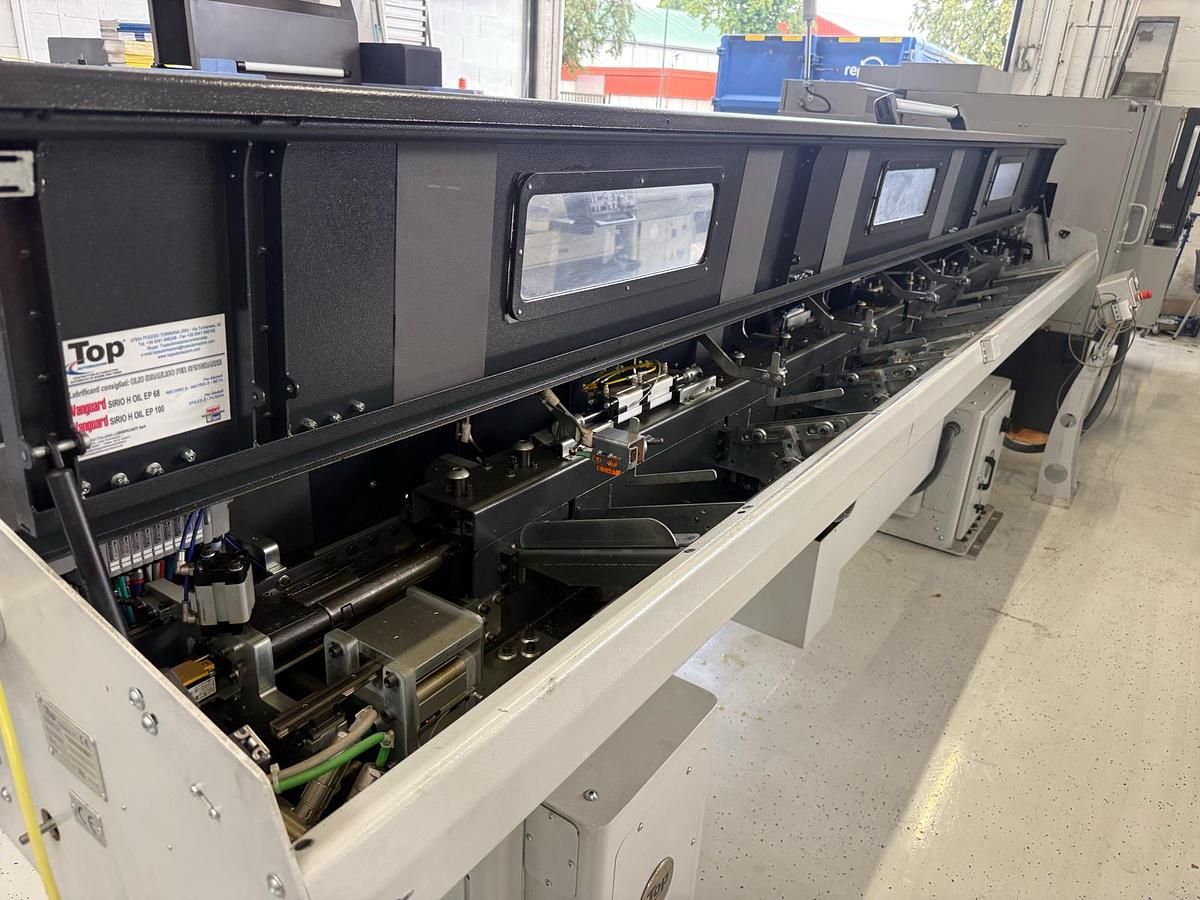

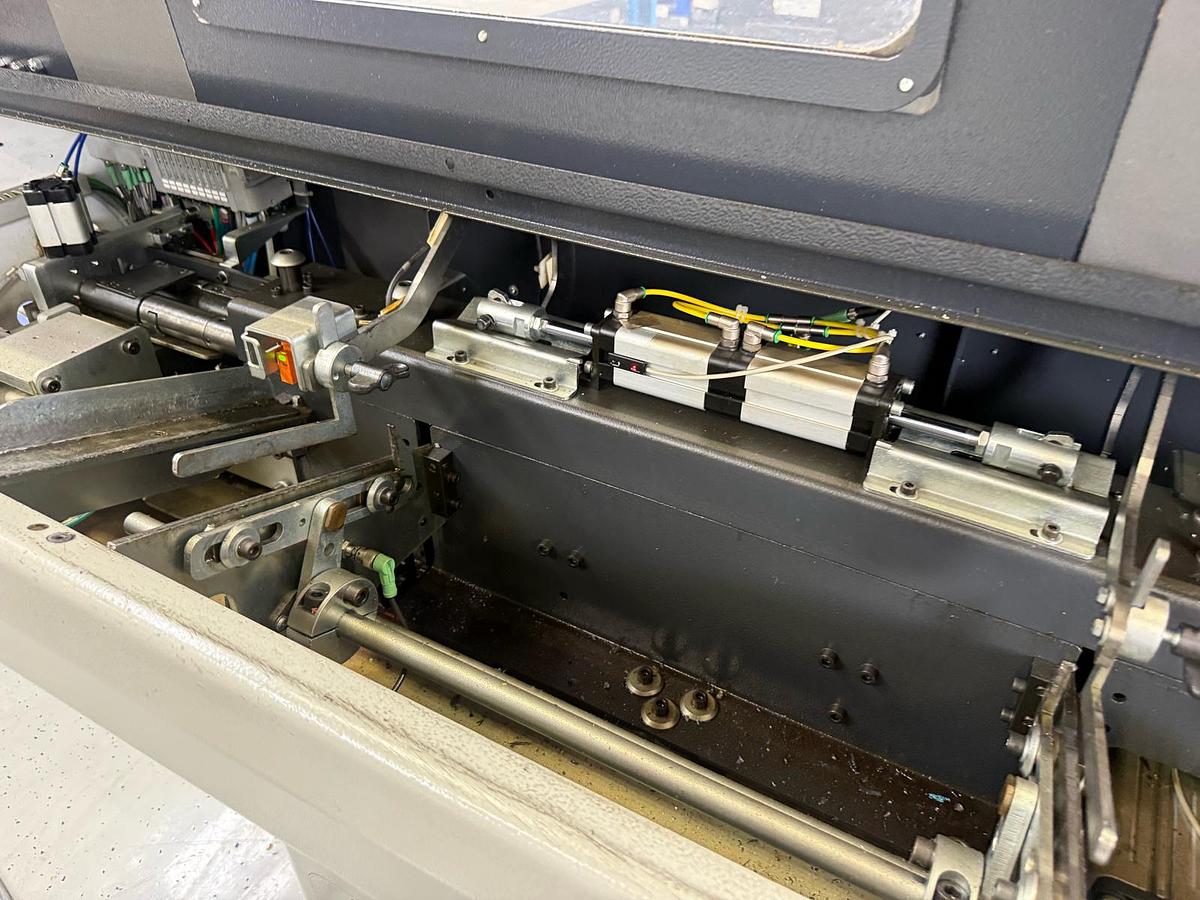

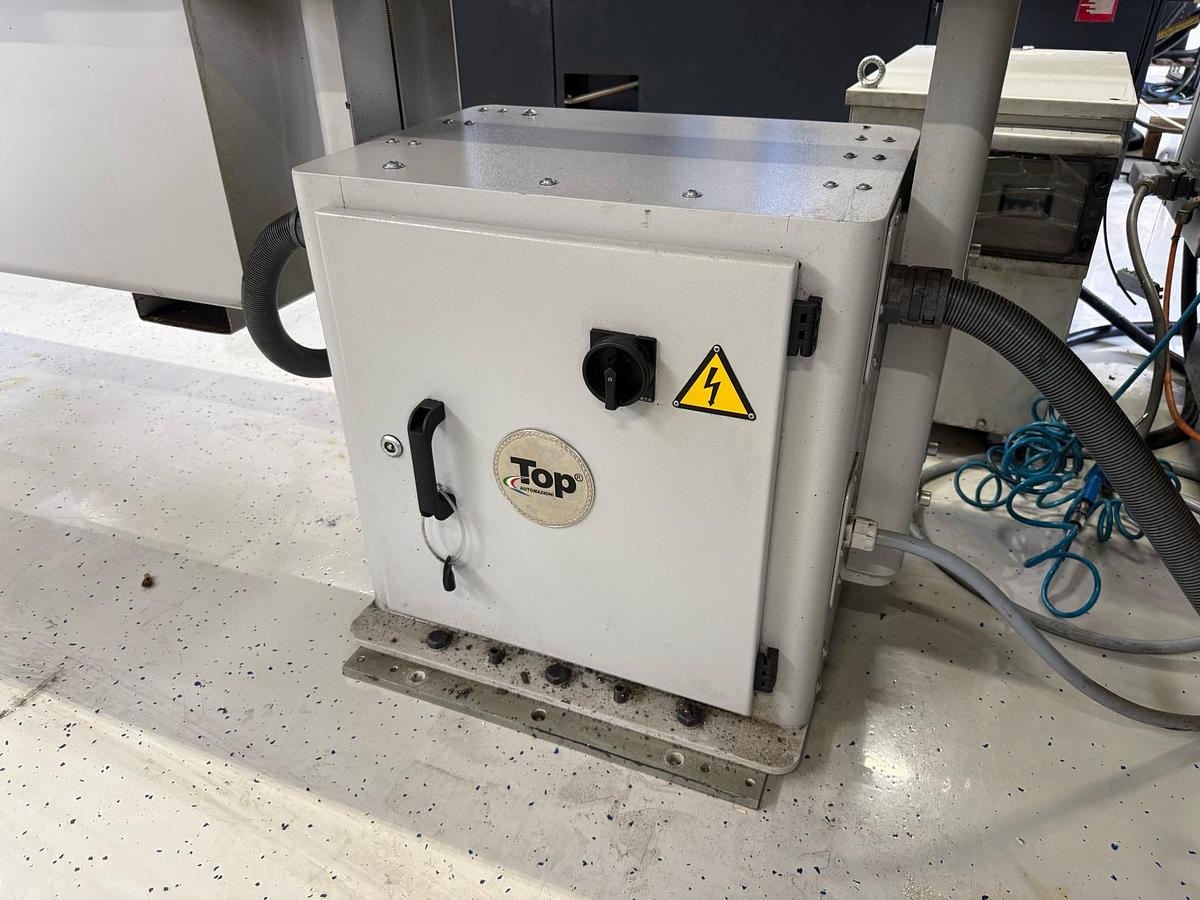

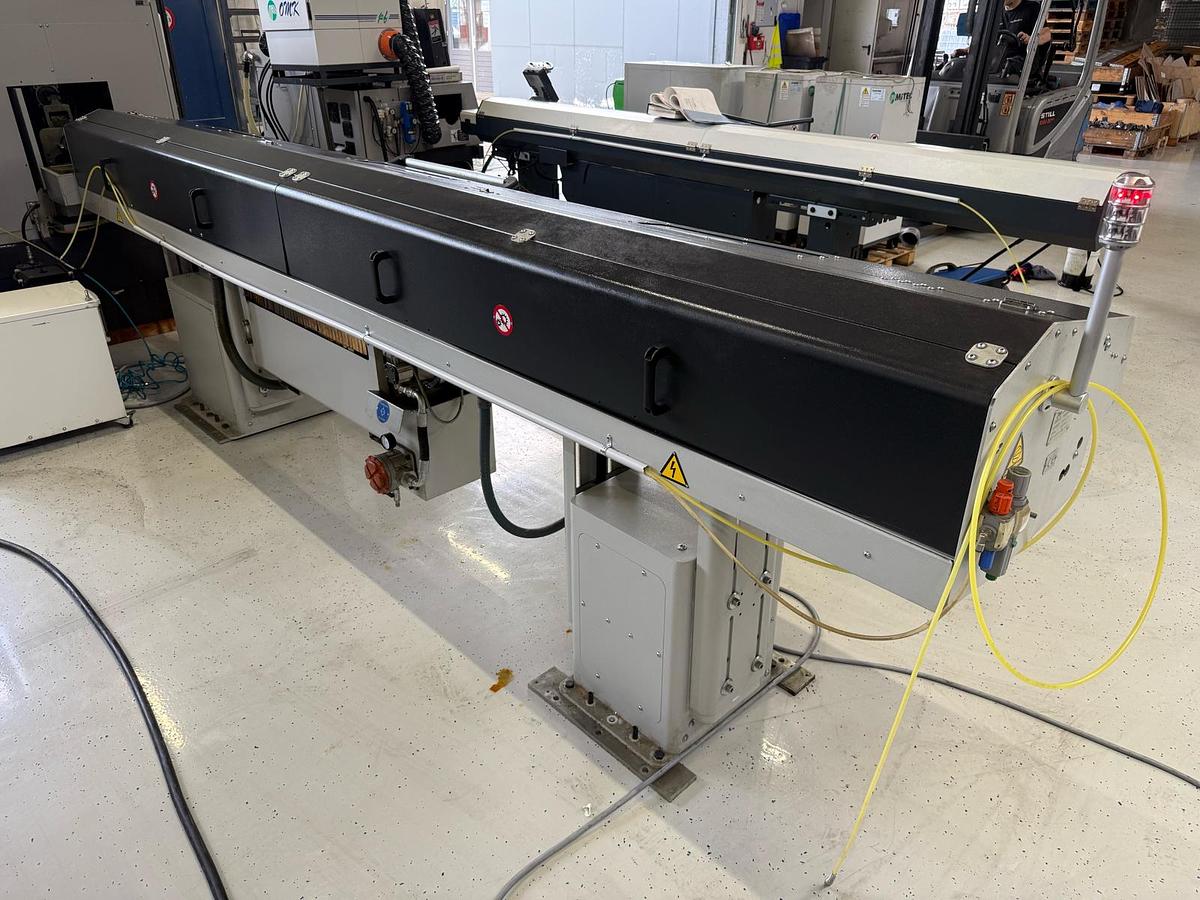

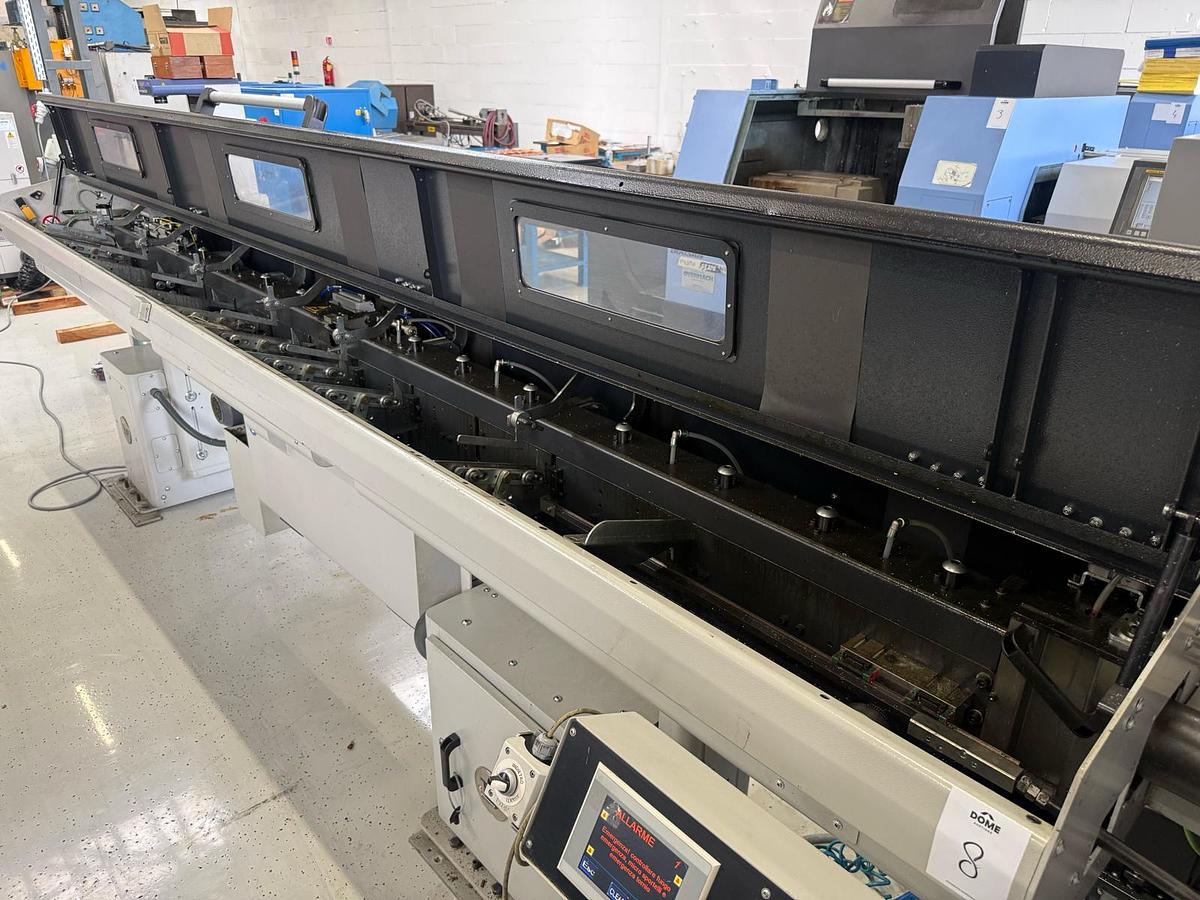

Additional info 2018 TOP RES338SX Automatic Bar Feeder:
Dimensions; Length: 4500 mm, Height: 1500 mm
Maximum rod length: 3200 mm
Adittional costs: EUR 1.750 loaded on truck
Also available:
- 2017 Tsugami B0206E-III CNC Swiss-type automatic lathe including a 2016 LNS ALPHA 320 S3 Automatic Bar Feeder
- 2015 Mitutoyo Quick-scope Measuring System
For more detailed machine information, output and specifications, to schedule an on-site inspection and/or direct sale price quotations please contact us via sales@assetsforsale.com. The machine's availability is subject to ongoing private treaty.
* Please note that this description has been translated automatically. The information in this listing is only indicative and is subject to change at any time without notice. Contact us for further information.
