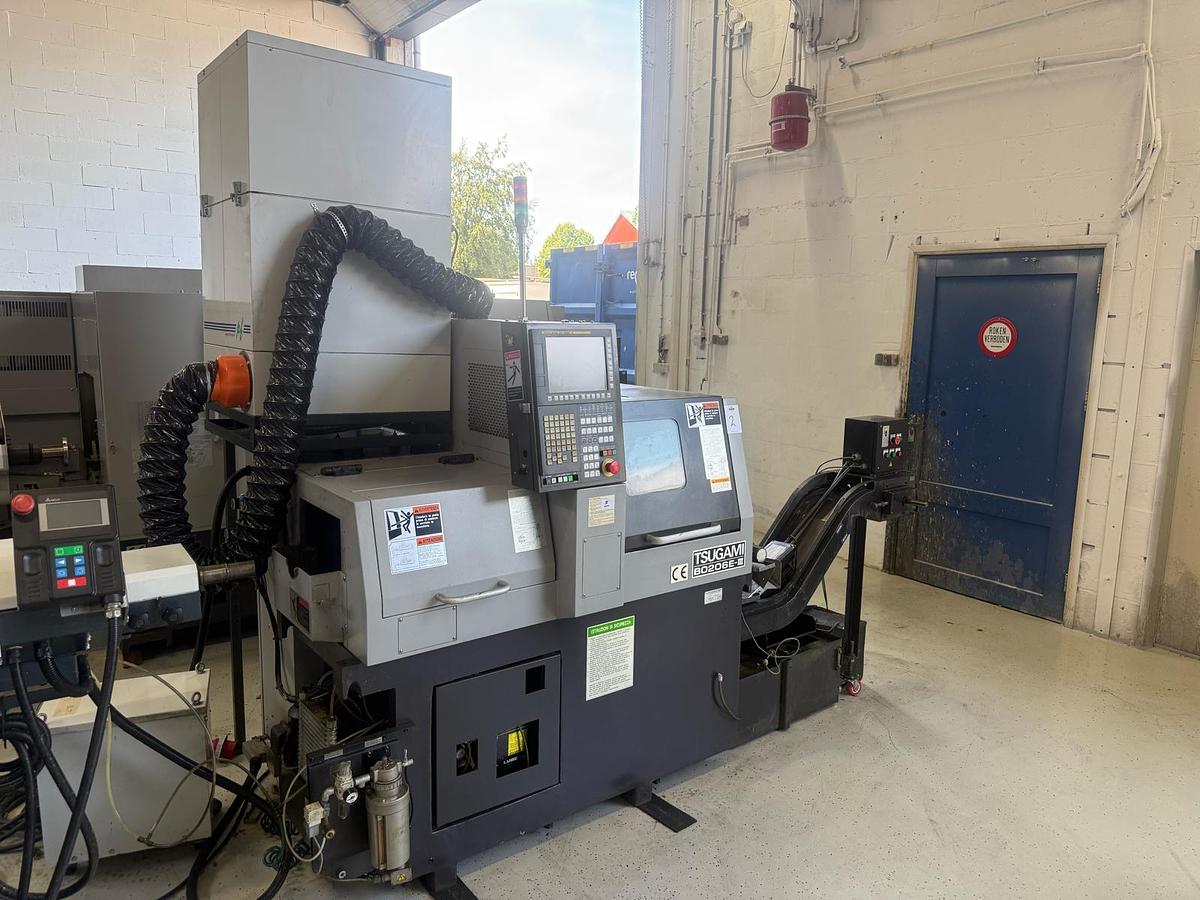

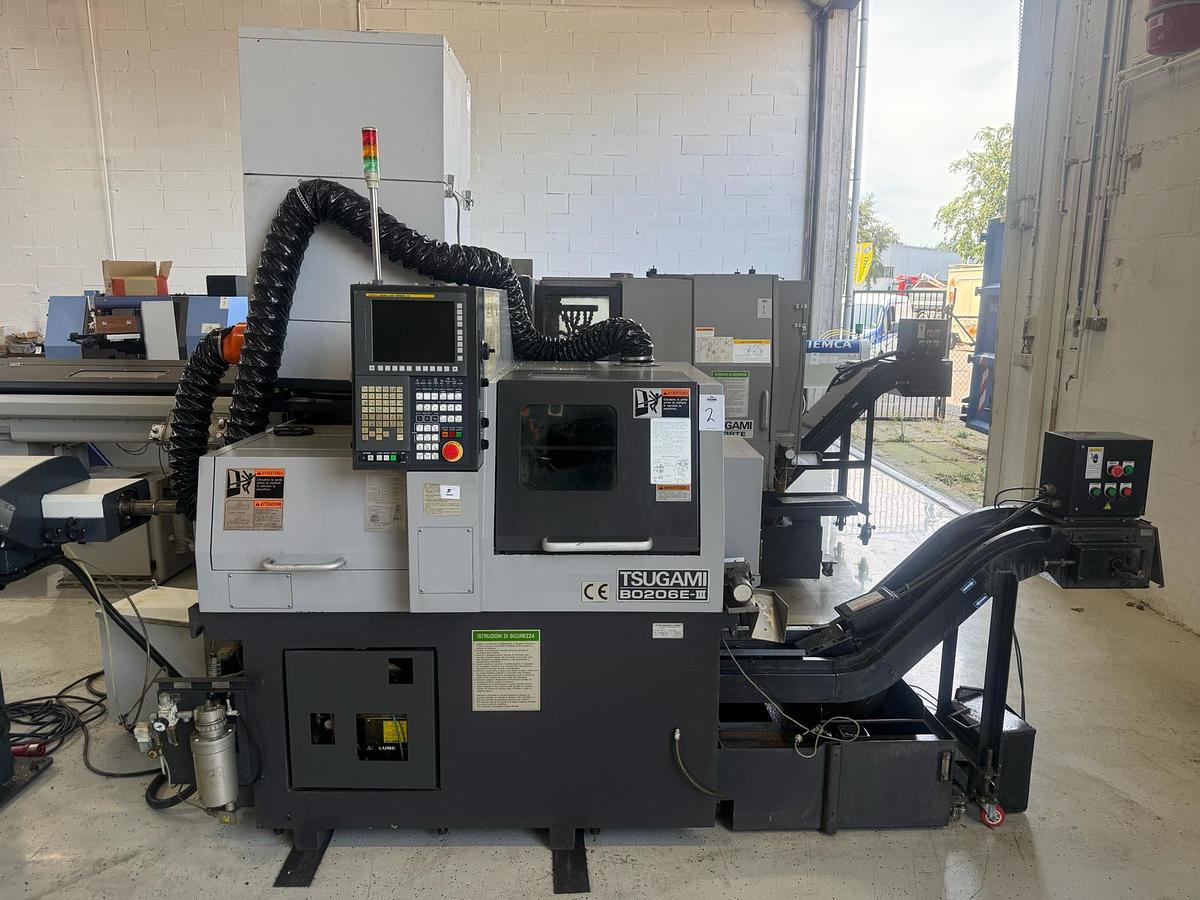

2017 Tsugami B0206E-III CNC Swiss-type automatic lathe including Automatic Bar Feeder

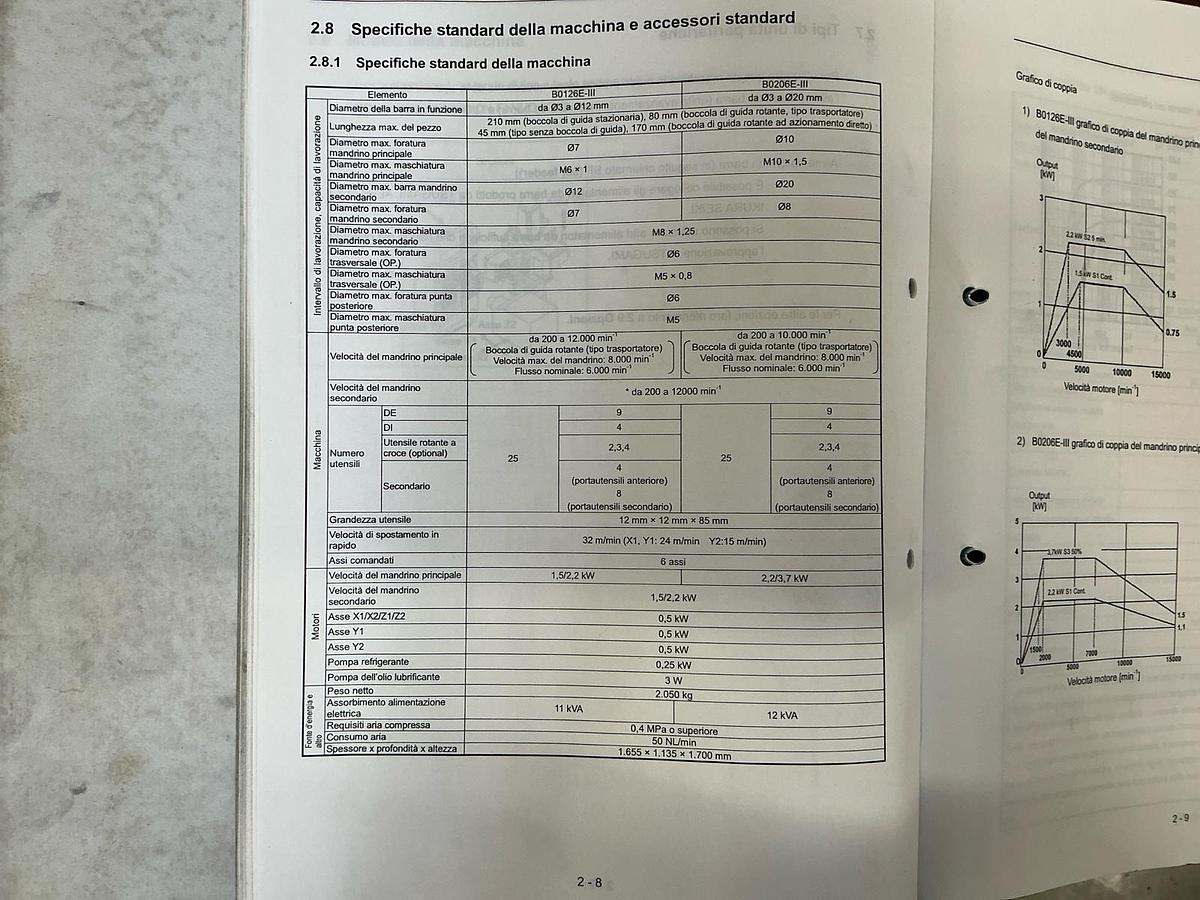

Specifications
| Manufacturer | Tsugami |
| Model | B0206E-III |
| Year | 2017 |
| Condition | Used |

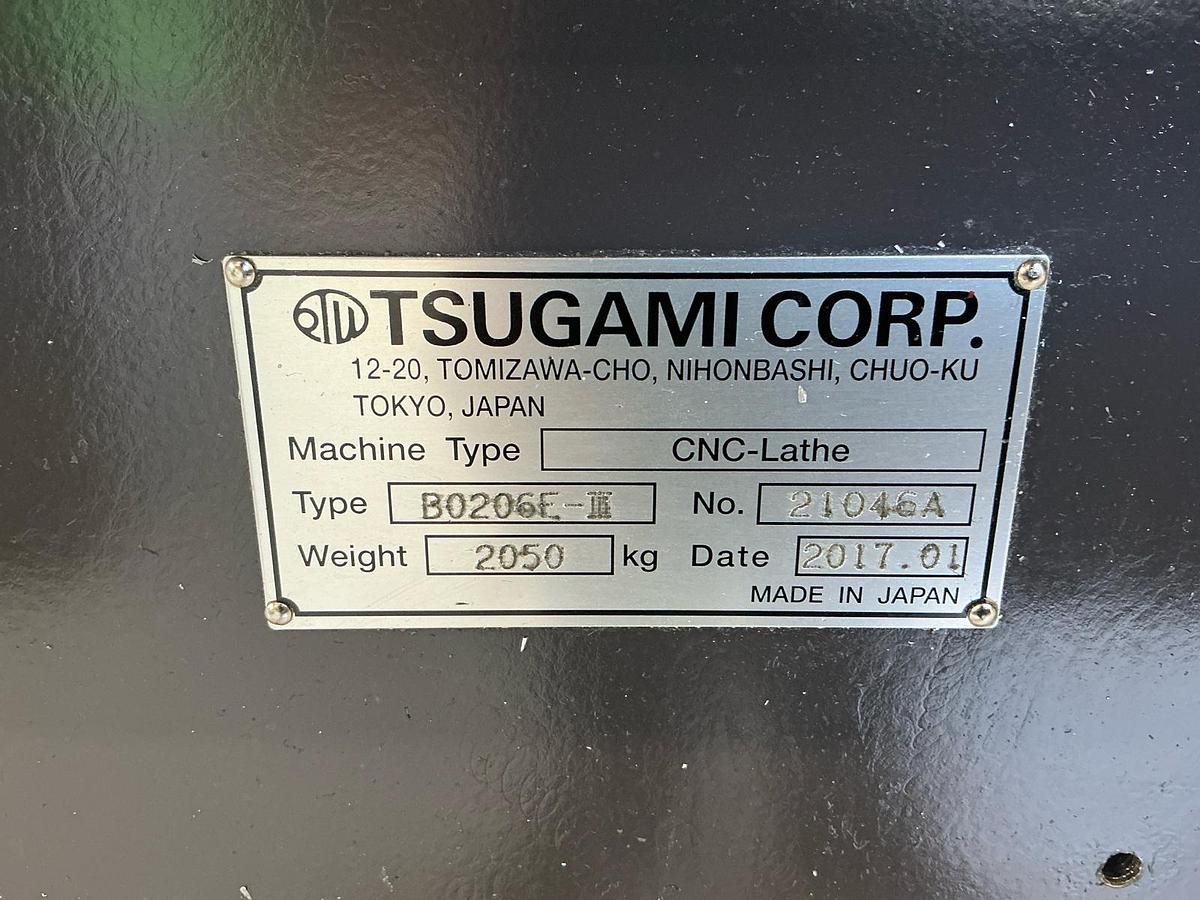

| Serial Number | 21046A |
| Availability | Directly available |
| Owned by | PIPM Group |
| Max. workpiece length | 210 mm (with guide bushing) / 80 mm (without guide bushing) |
| Max. drilling capacity | M10 × 1.5 |
| Max. tapping capacity | M10 × 1.5 |
| Max. bar diameter | Ø20 mm |
| Max. drill chuck diameter | Ø8 mm |
| Max. milling diameter | M8 × 1.25 |
| Max. threading capacity | M5 × 0.8 |
| Hour meter reading | 23,338 |
| Max. drilling capacity (Secondary spindle) | M6 |
| Max. tapping capacity (Secondary spindle) | M6 |
| Max. spindle speed (Main spindle) | 200–12,000 r/min |

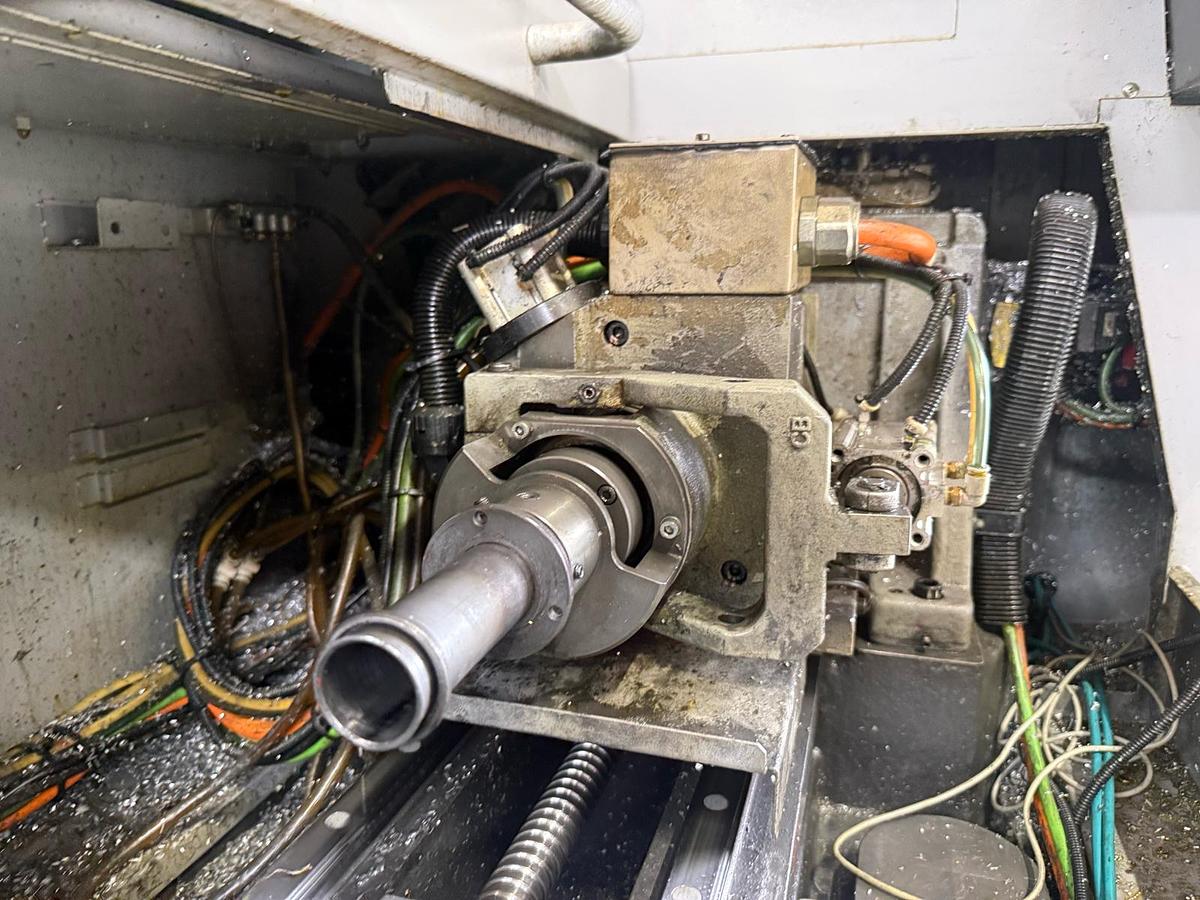

| Guide bush | Guide bush with oil supply (pull-type) |
| Nominal oil flow | 6,000 ml/min |

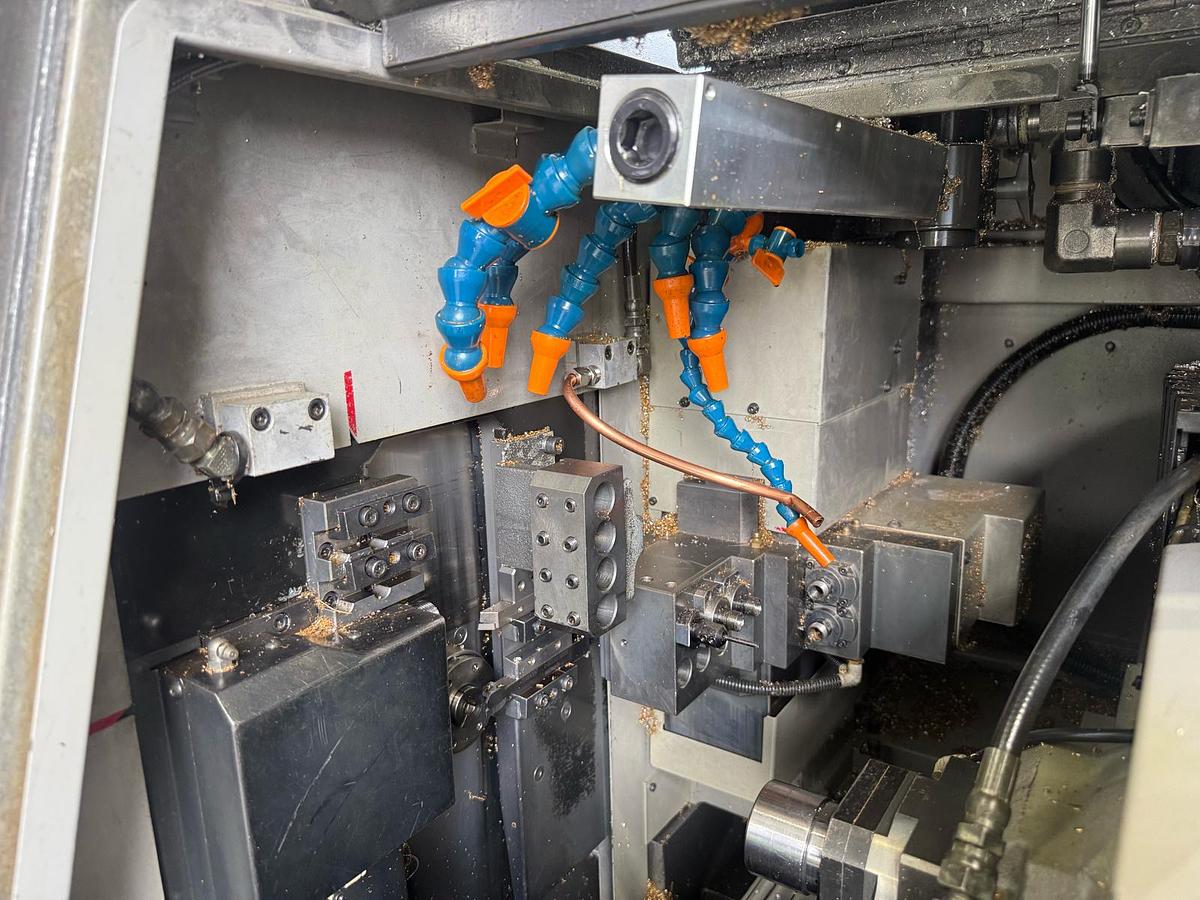

| Tool holders (max.) | 25 positions |
| Rapid traverse | 32 m/min |
| X1-axis travel | 42 mm |
| Y1-axis travel | 72.5 mm |
| Z1-axis travel | 65 mm |
Description
For sale: 2017 Tsugami B0206E-III CNC Swiss-type automatic lathe including a 2016 LNS ALPHA 320 S3 Automatic Bar Feeder > modern metalworking machines and precision CNC lathes, originating from the recent bankruptcy of ALMEC, serviced and relocated to Mill (near Nijmegen) in the Netherlands.
Additional information:
Motors;
Main spindle motor: 2.2 / 3.7 kW
Sub-spindle motor: 1.5 / 2.2 kW
X1/X2 axis: 0.5 kW
Y1/Y2 axis: 0.5 kW
Z1/Z2 axis: 0.5 kW
Coolant pump: 0.75 kW
Lubricating oil pump: 0.3 kW

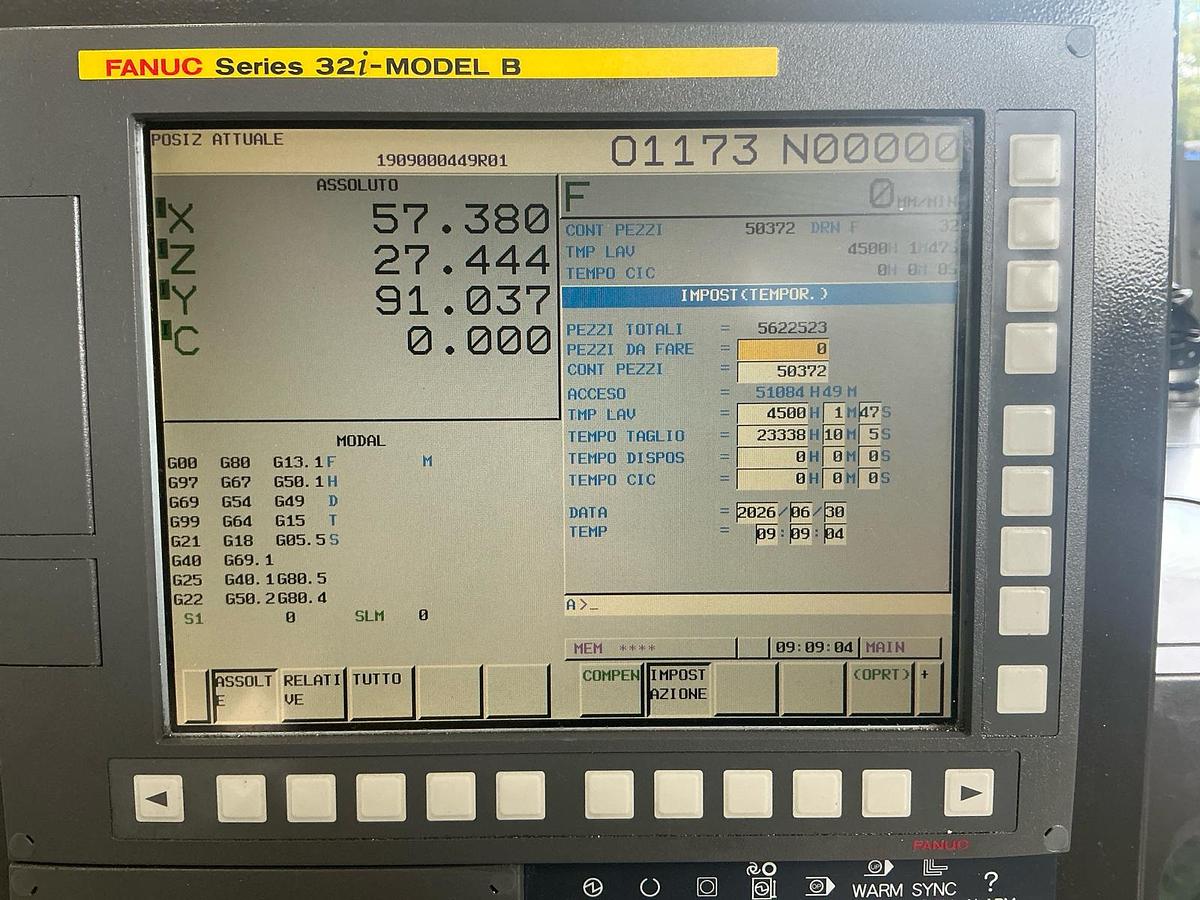

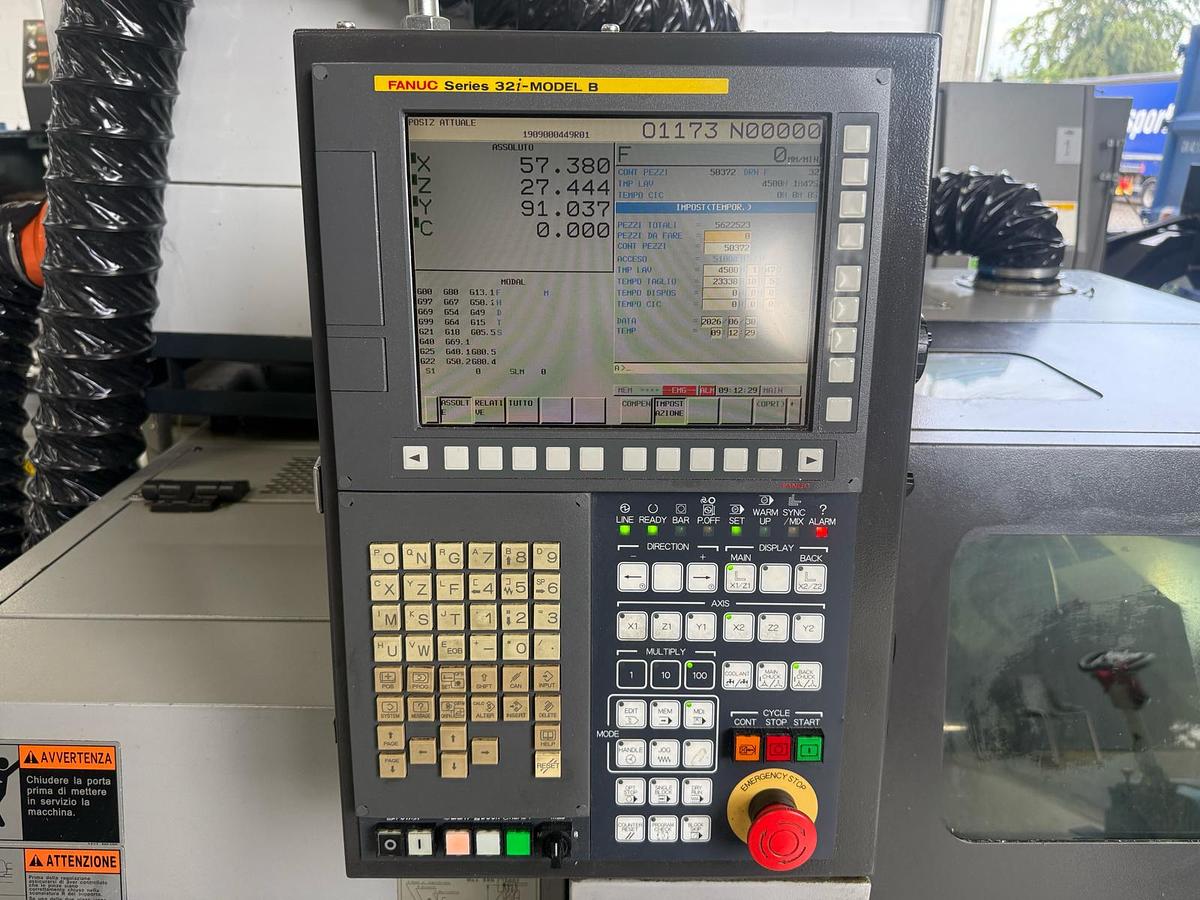

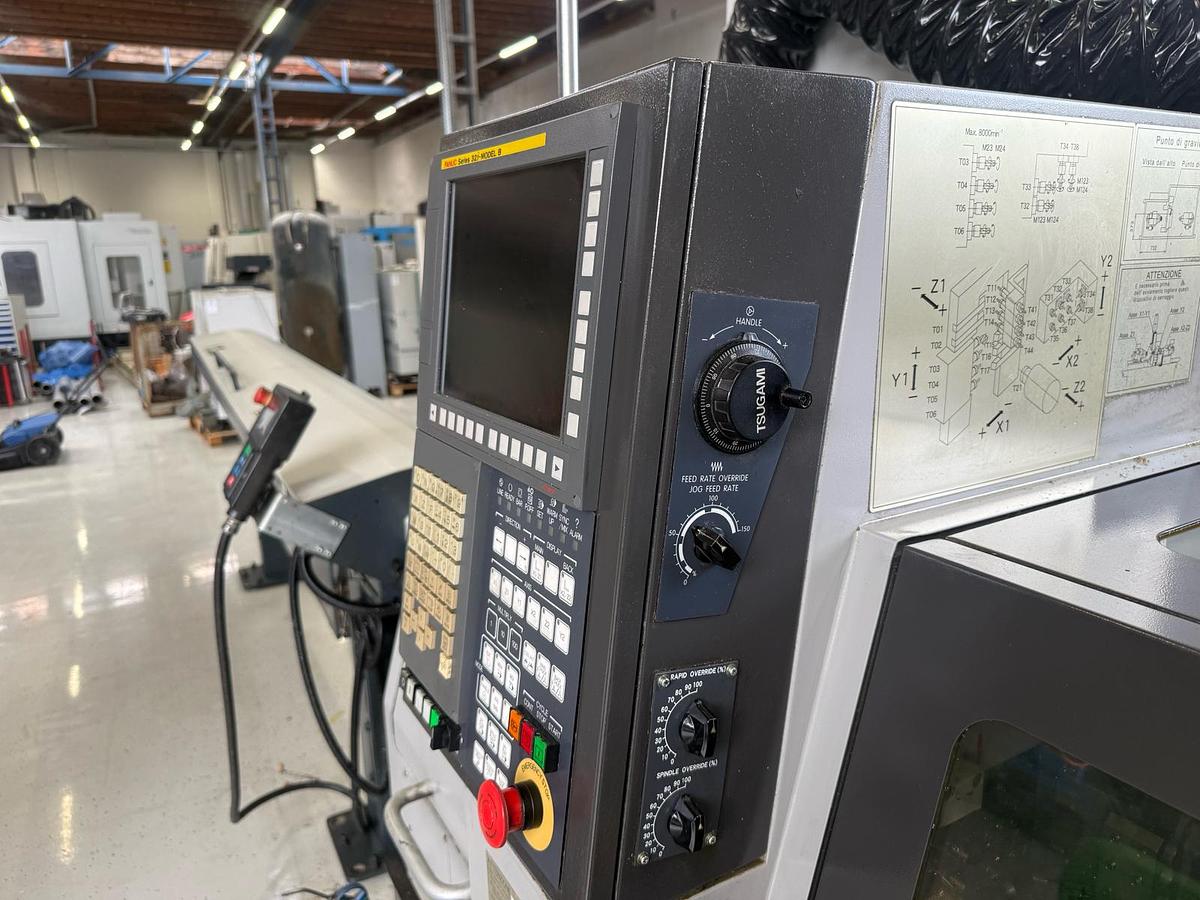

Control system: Fanuc Series 32i-MODEL B
Connected load: 12 kVA

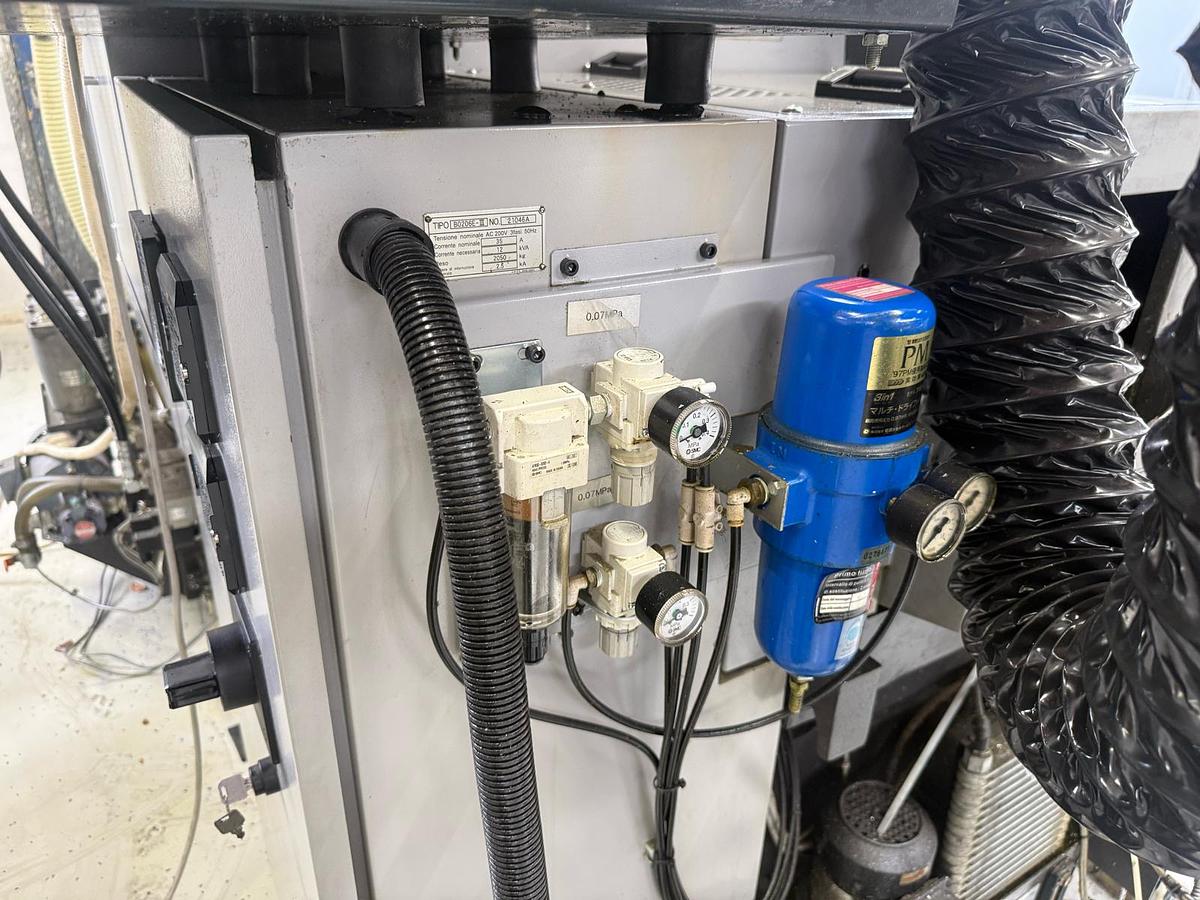

Compressed air connection: 0.4 MPa
Machine dimensions: 1,635 × 1,635 × 1,700 mm

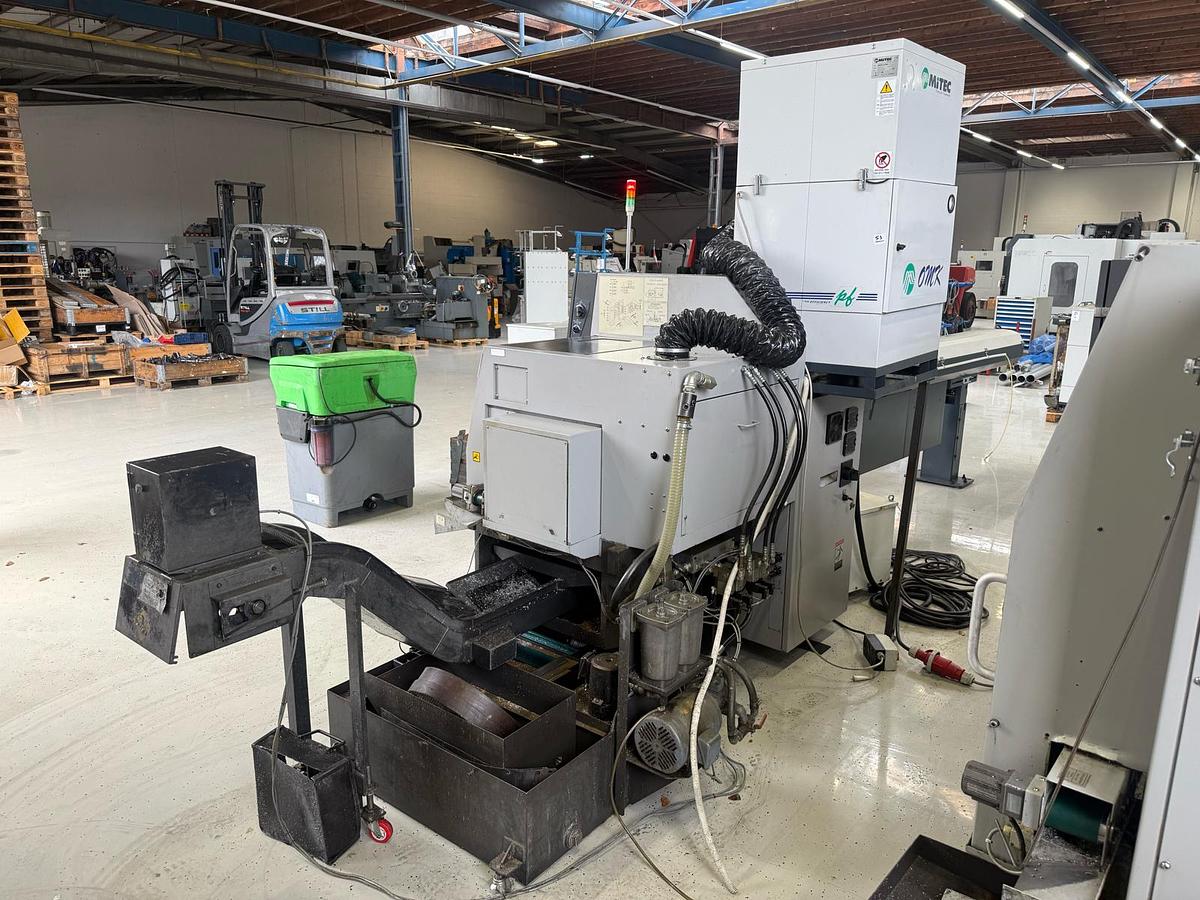

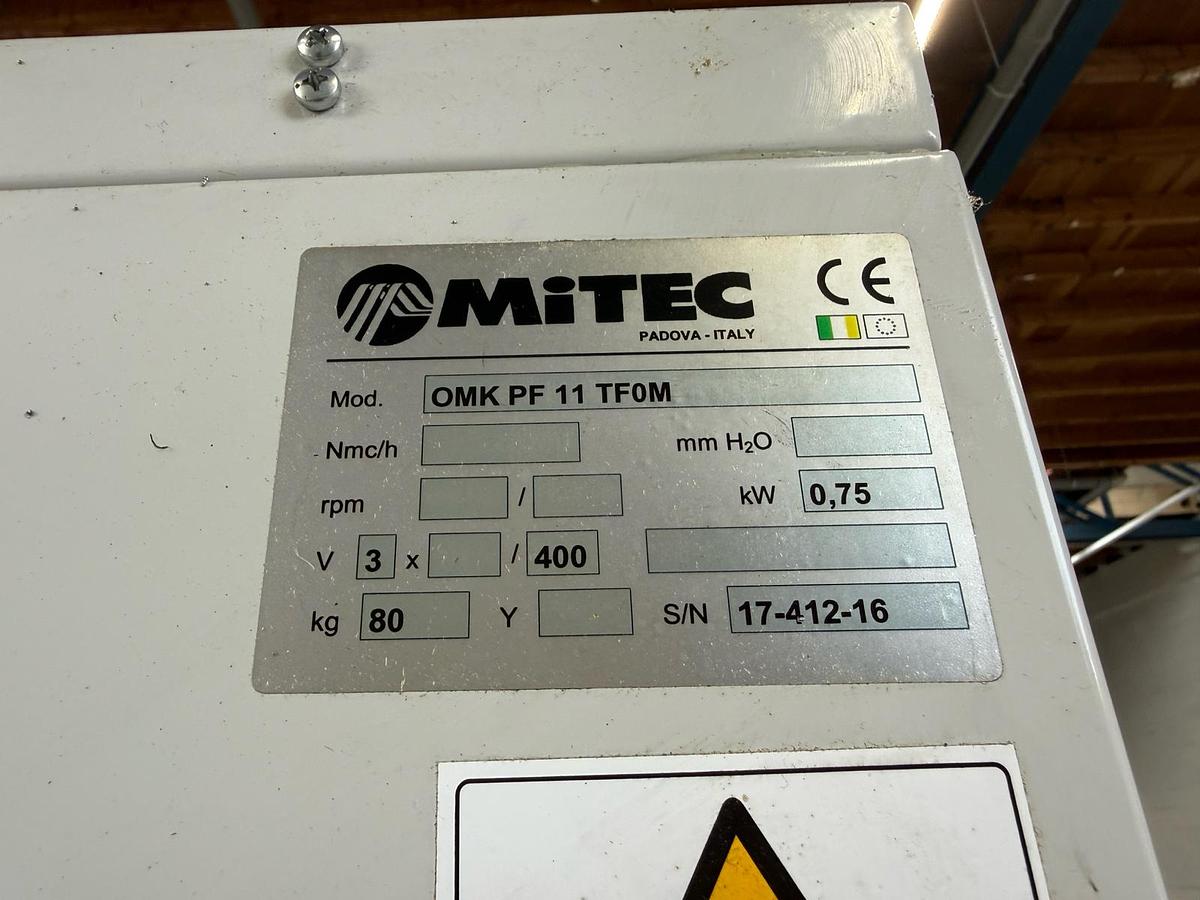

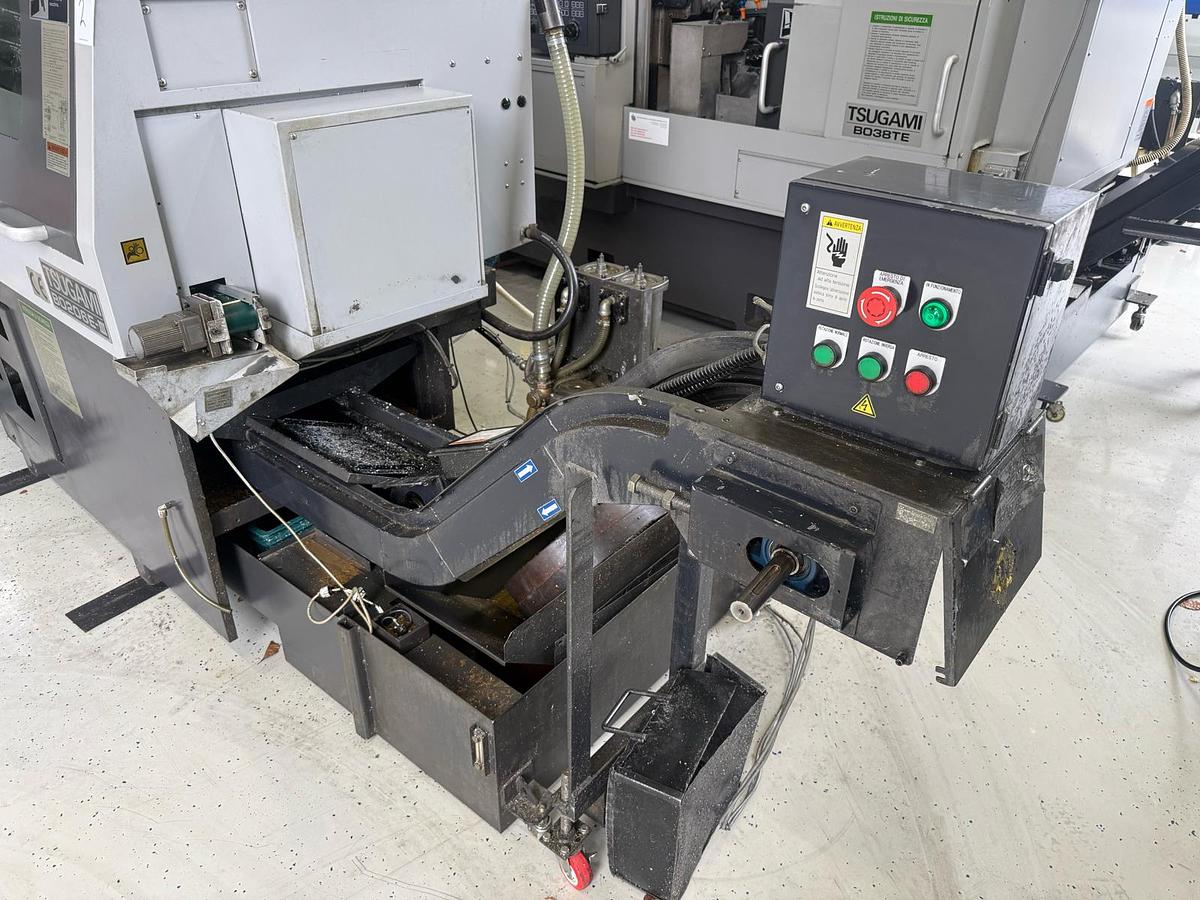

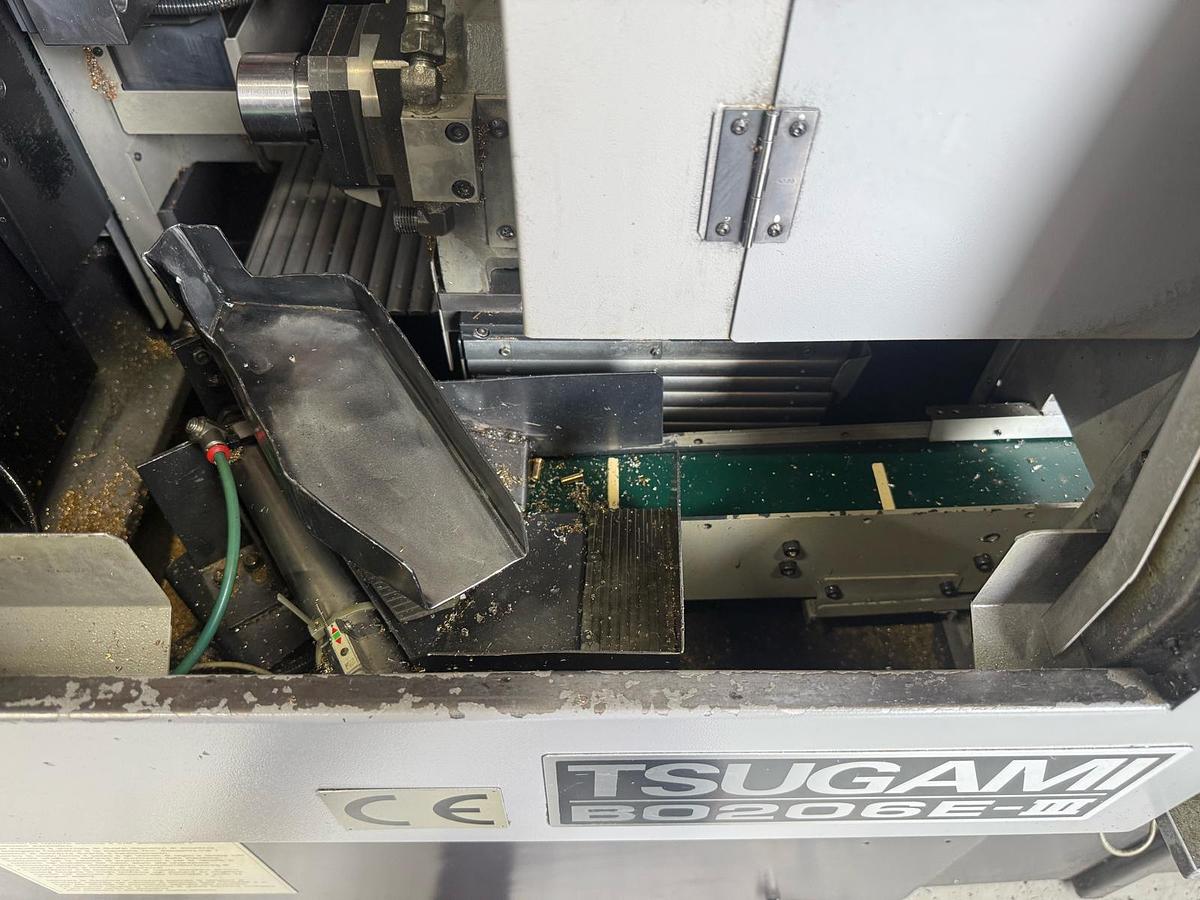

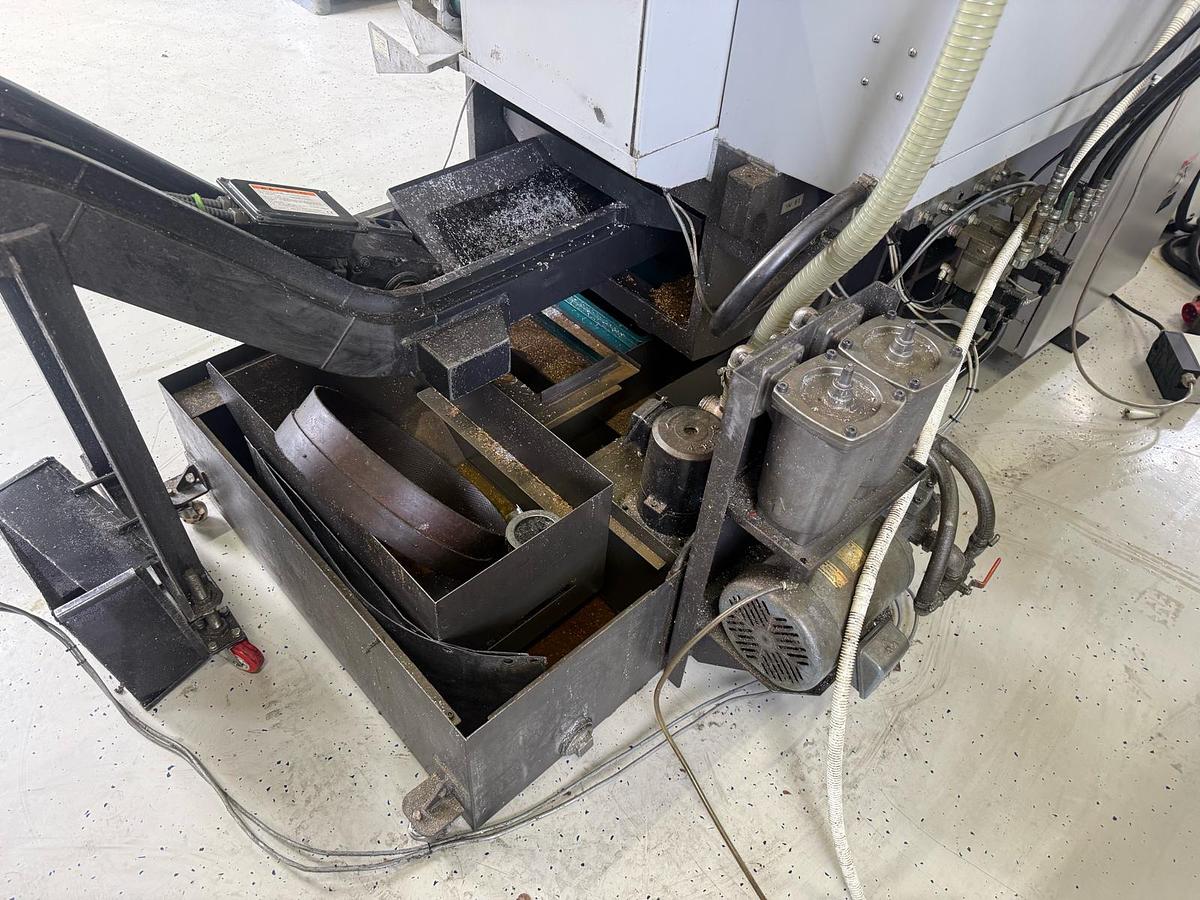

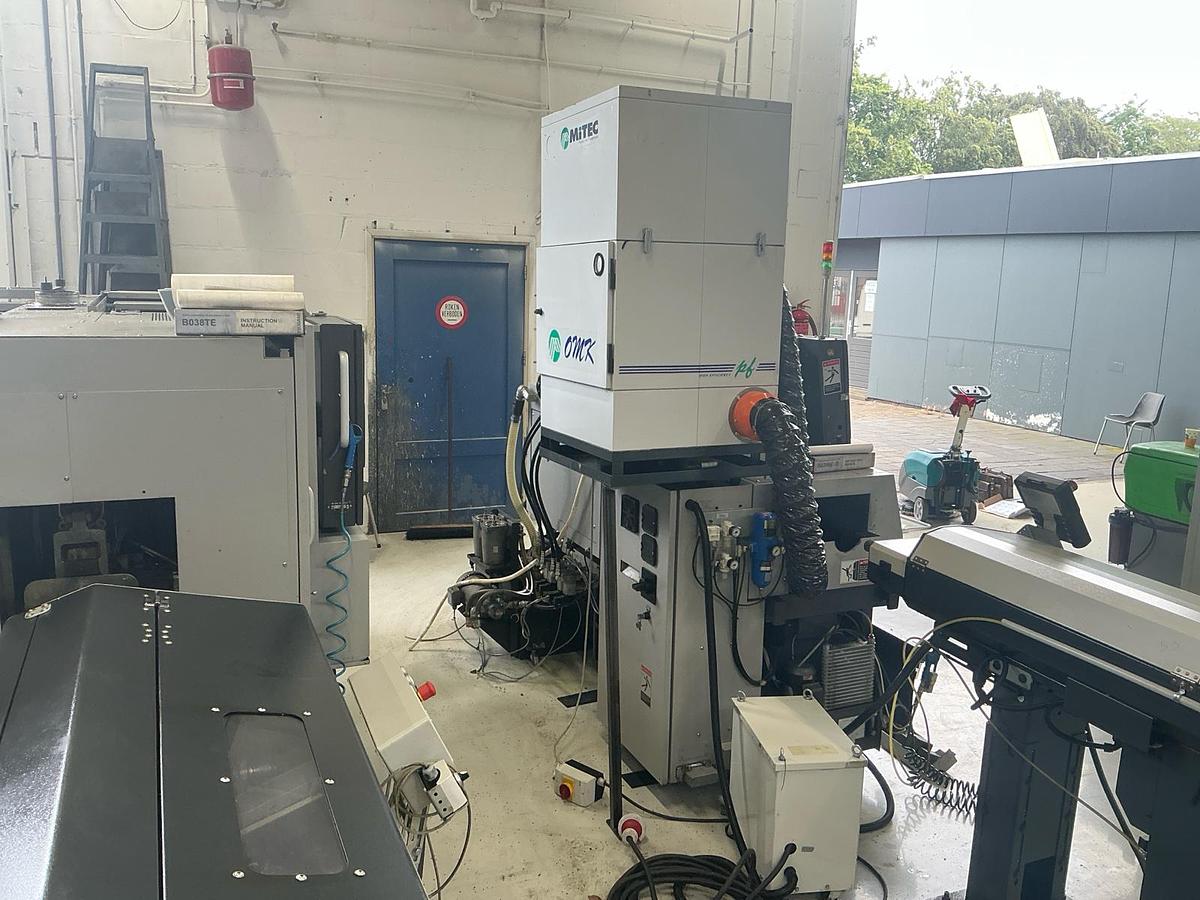

Equipped with: Chip conveyor, Mitec OMK PF 11 TF0M filter.

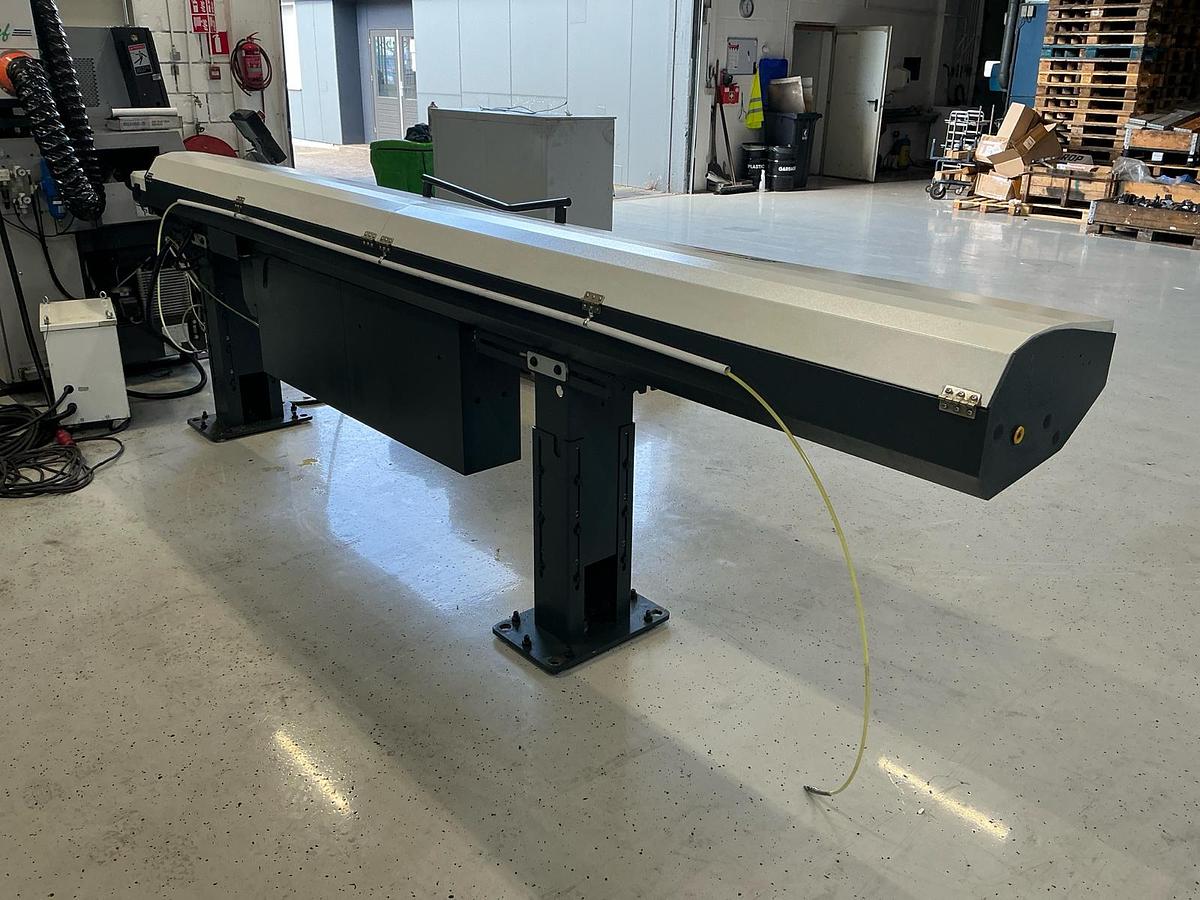

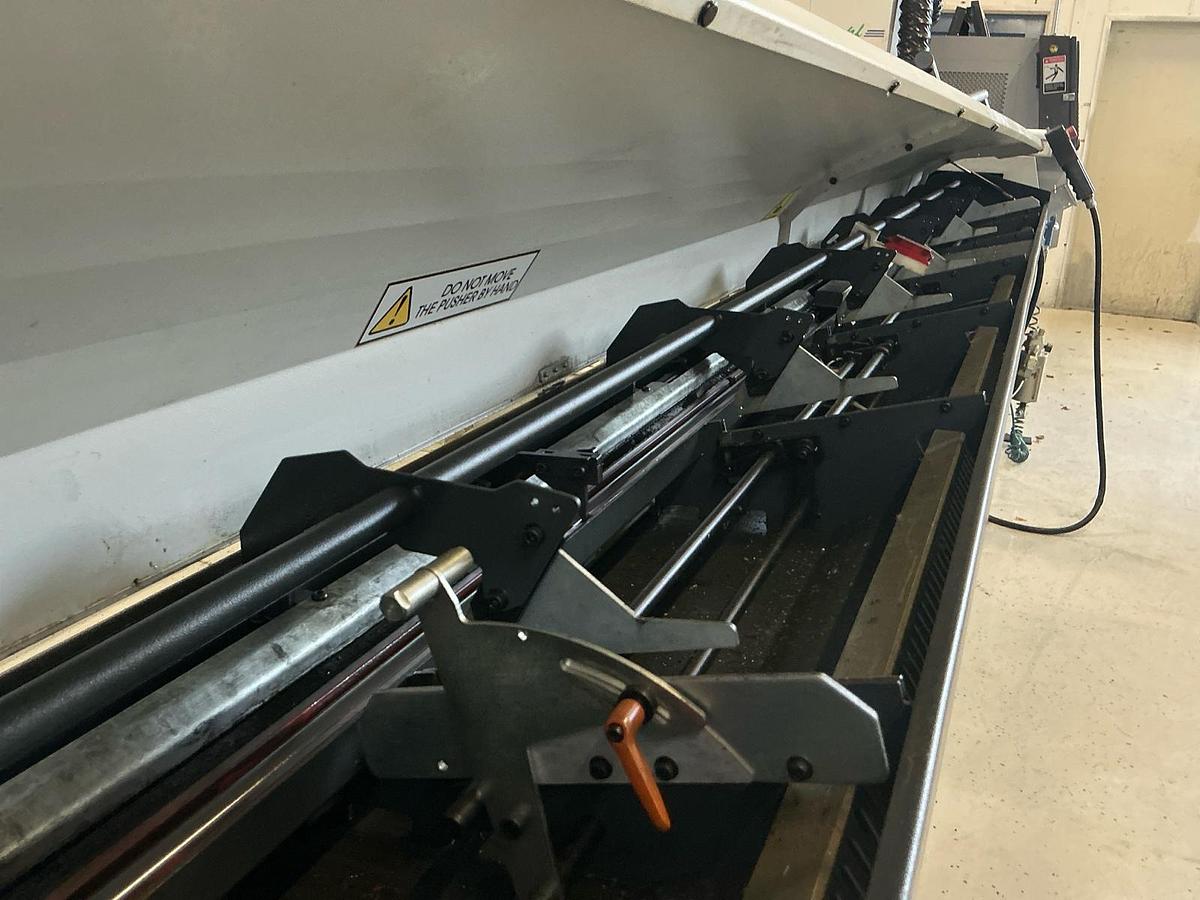

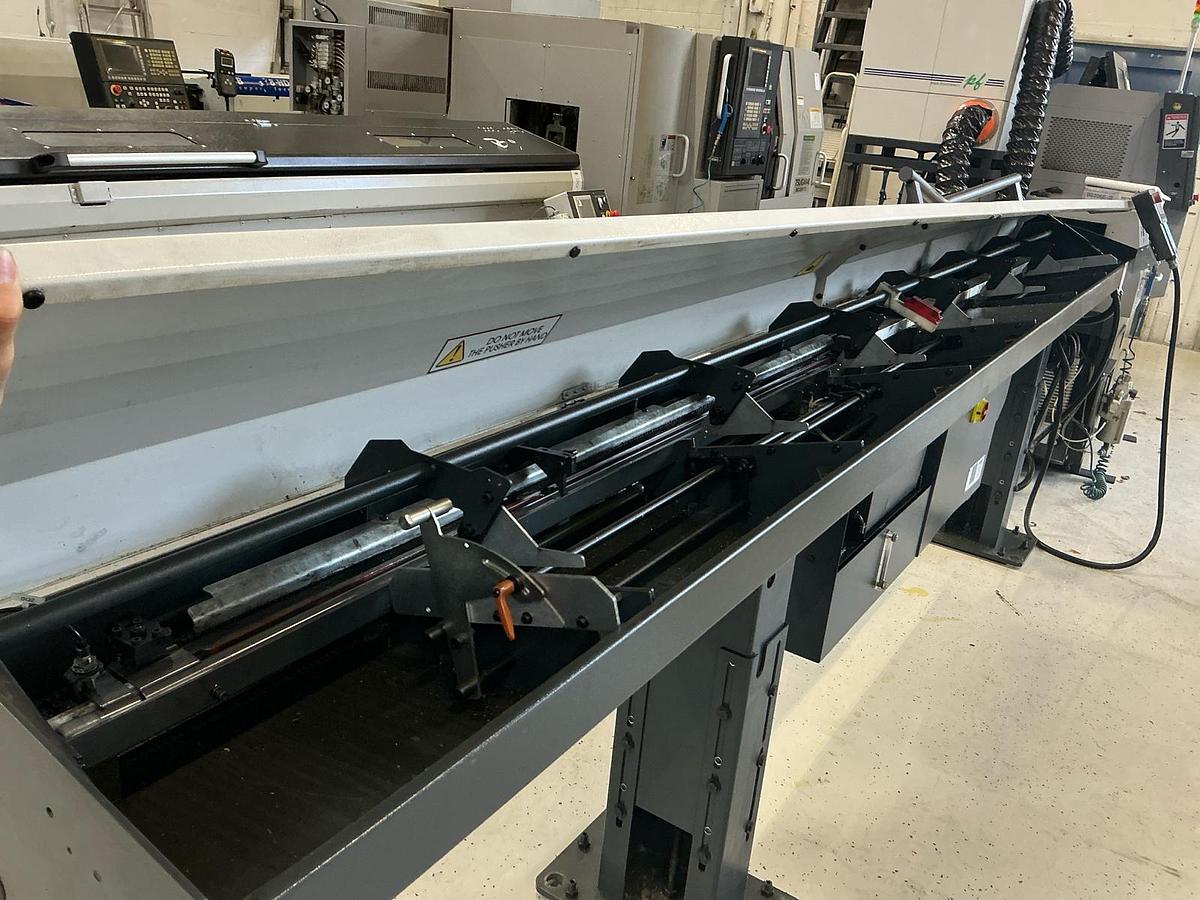

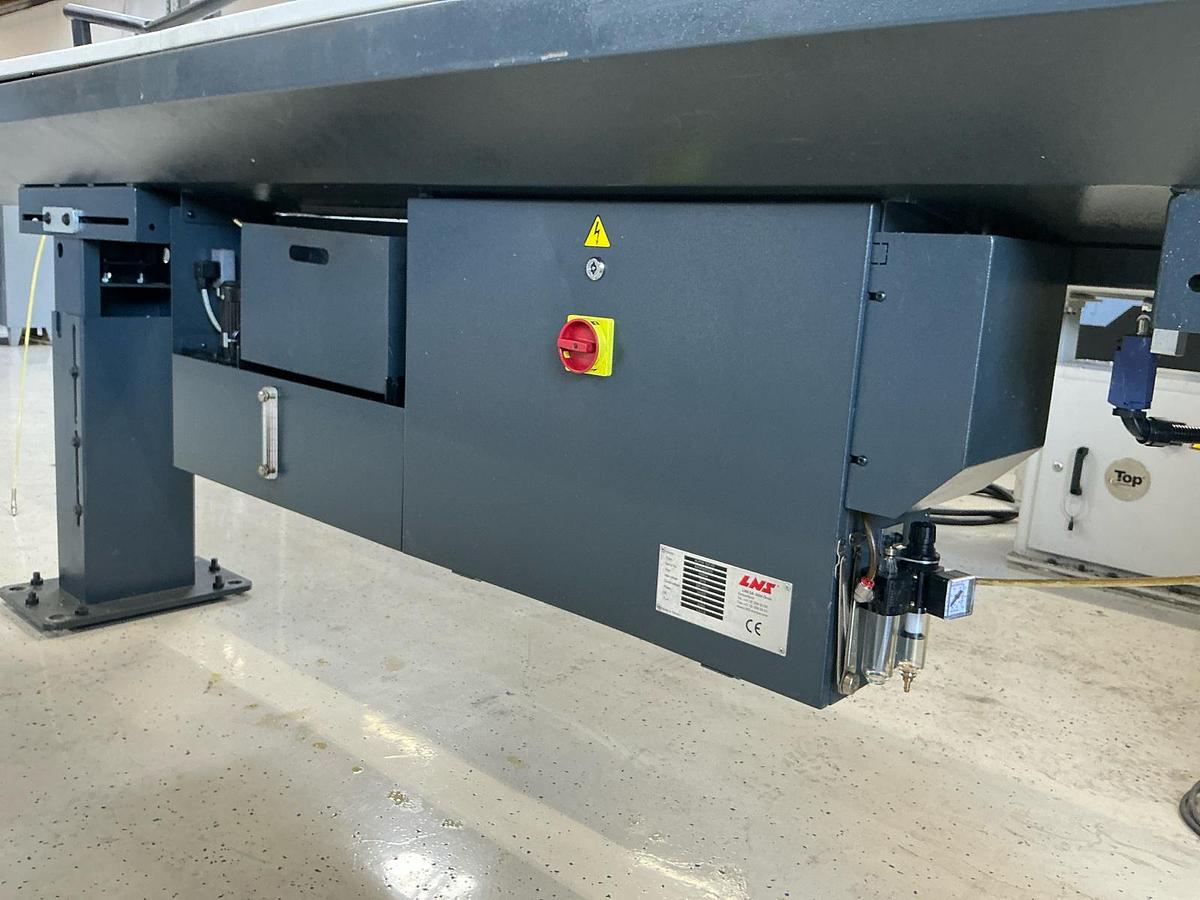

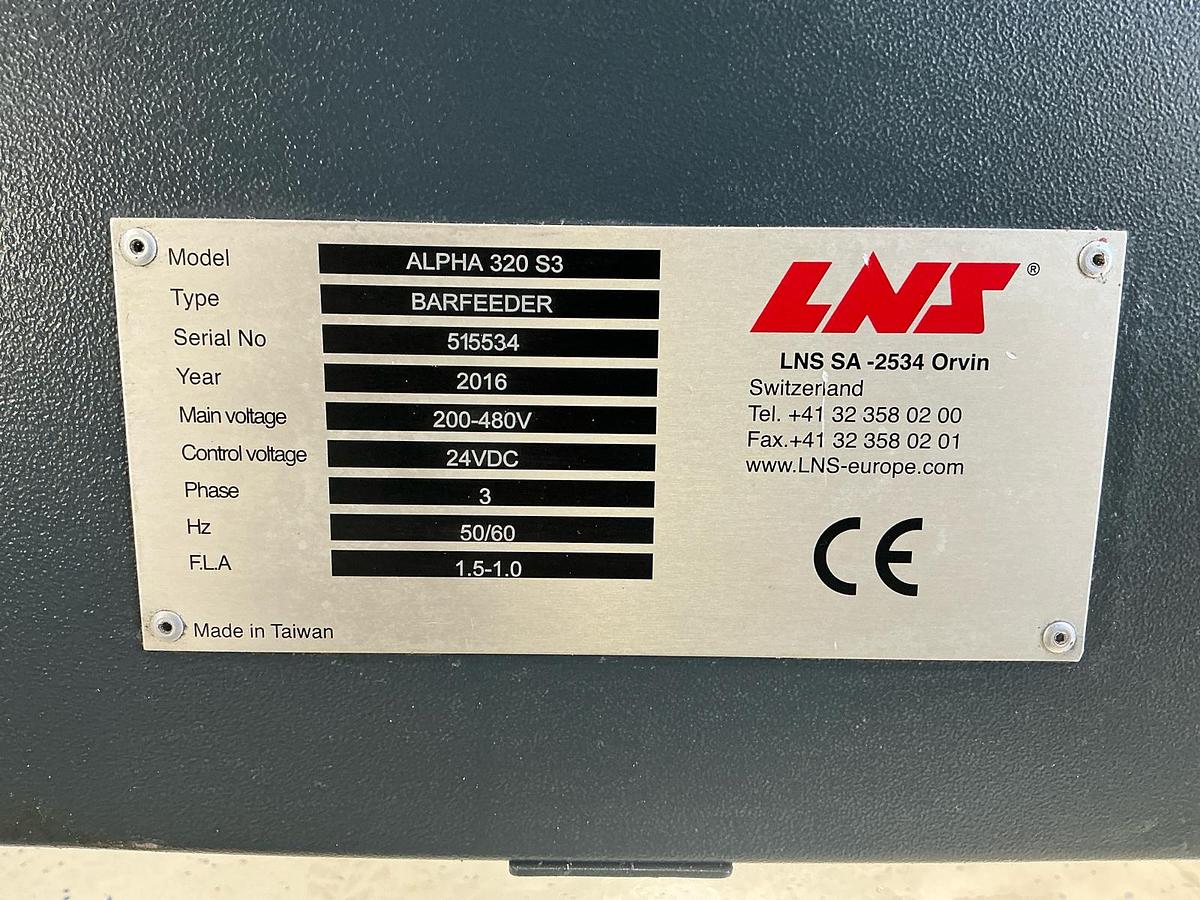

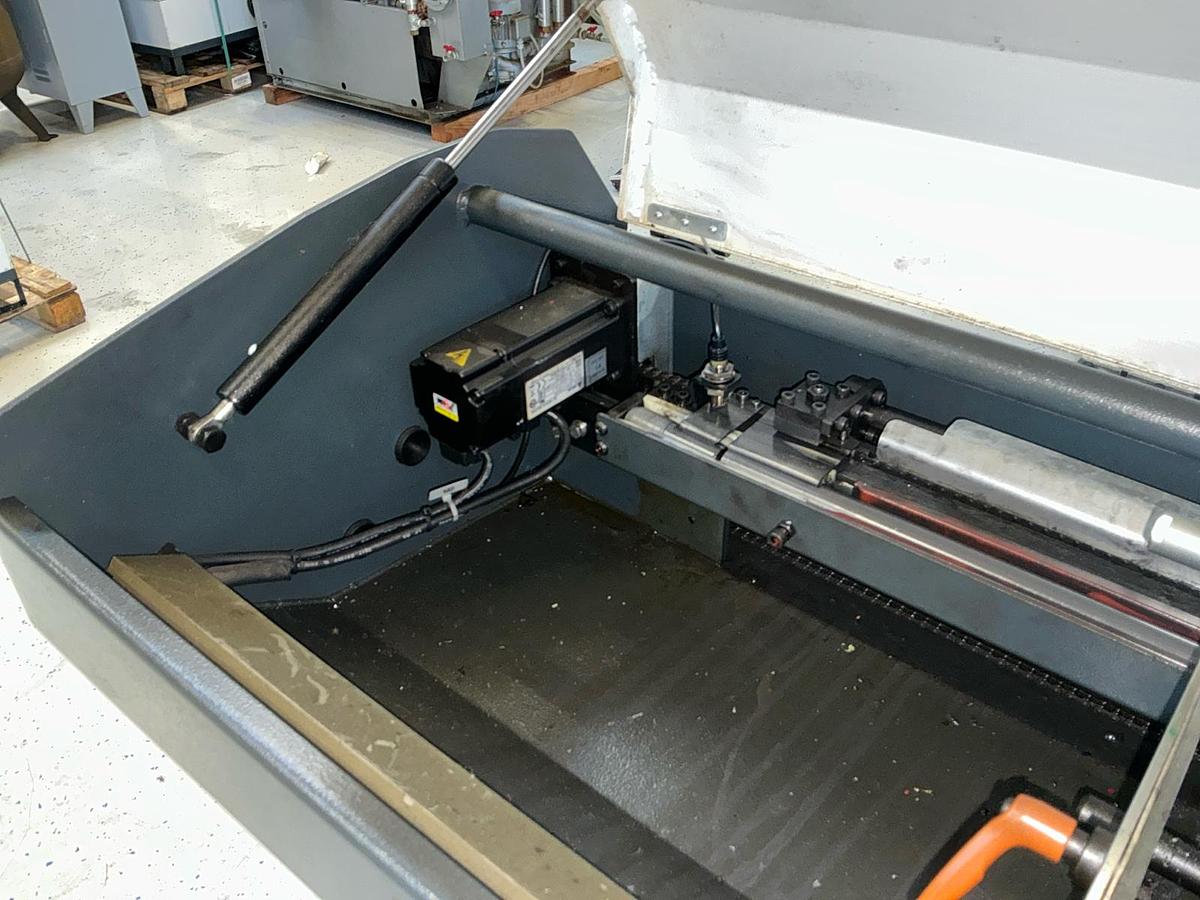

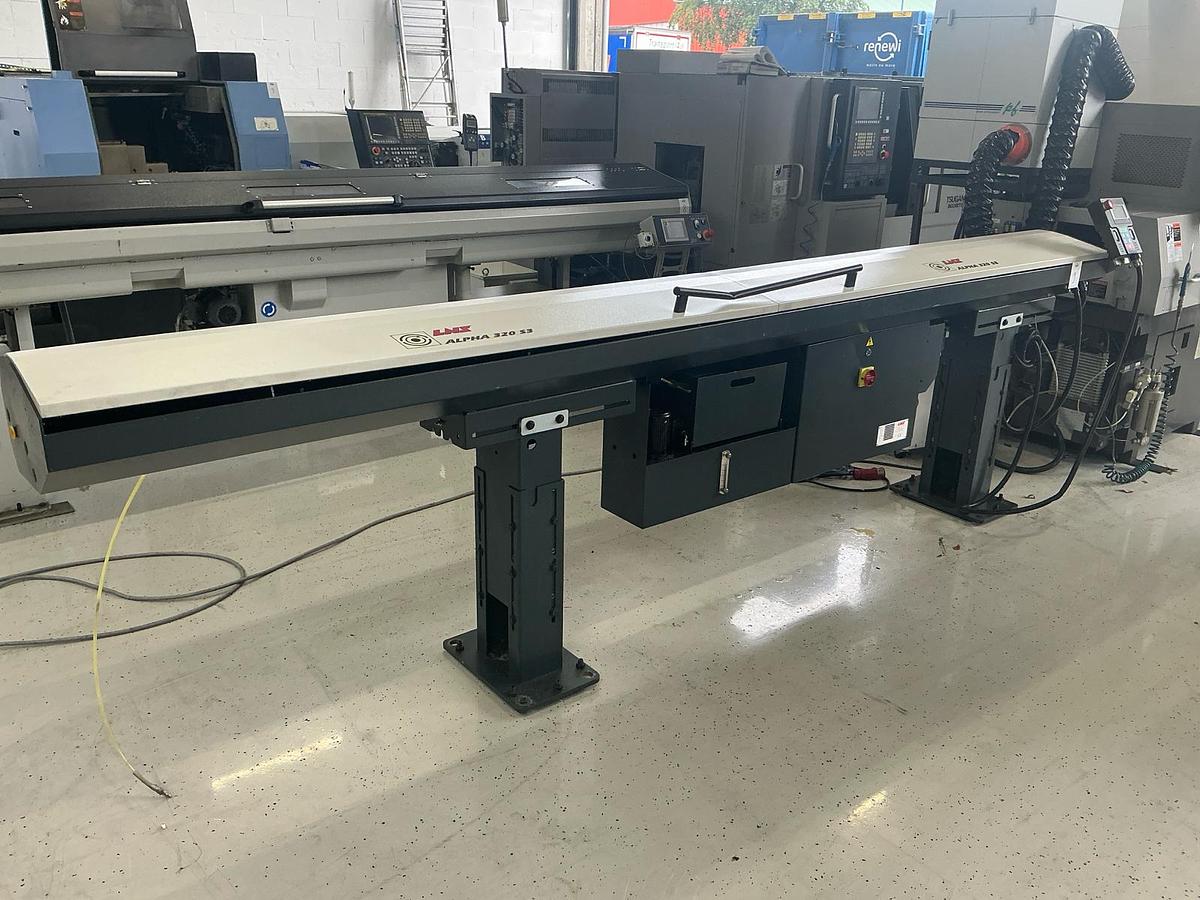

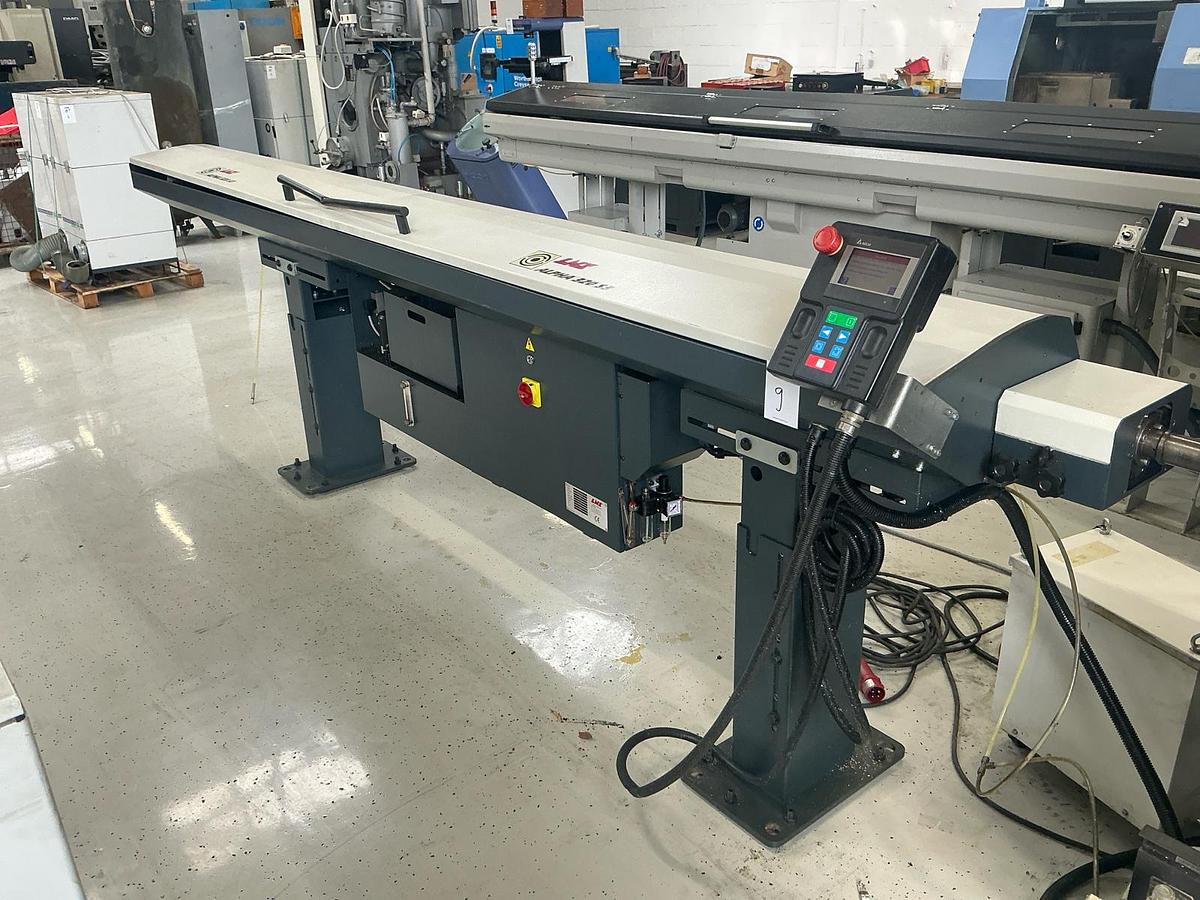

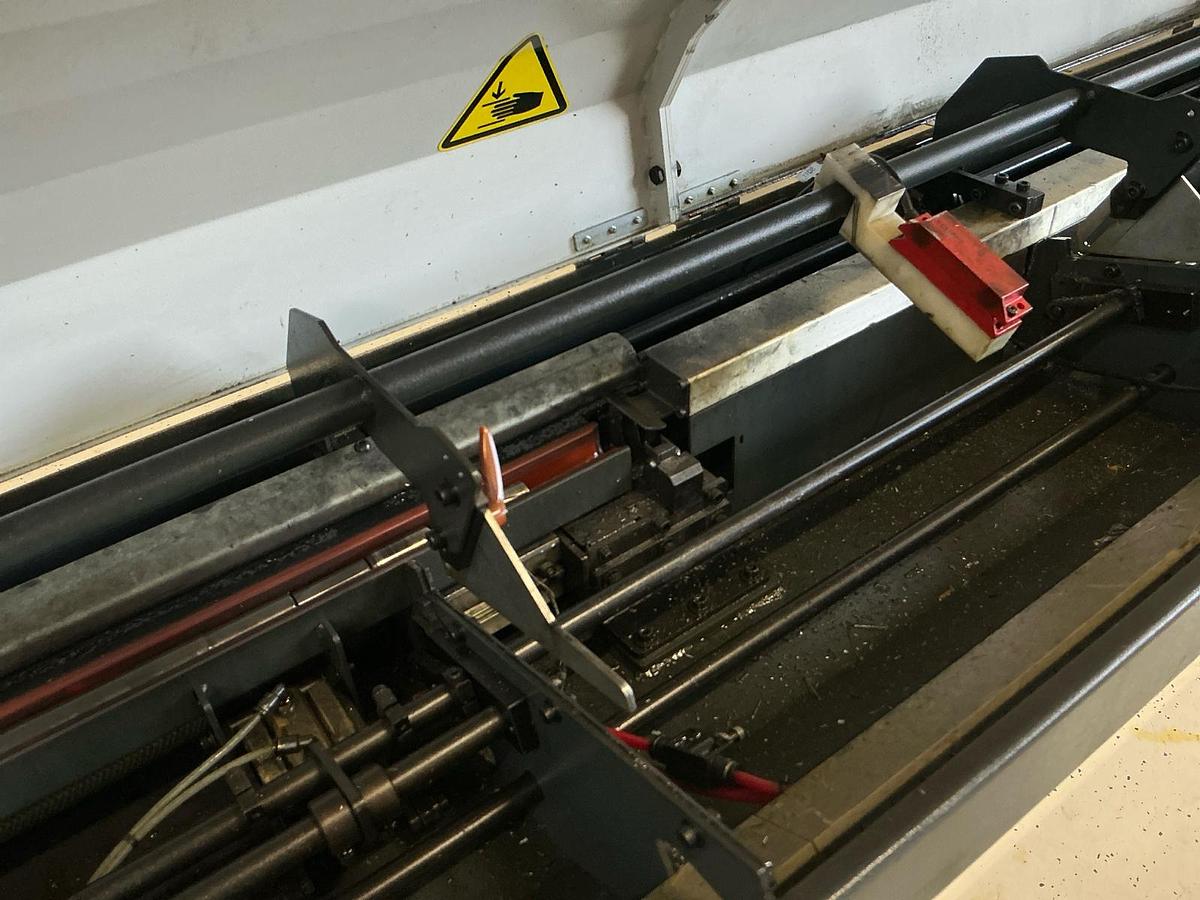

Additional info 2016 LNS ALPHA 320 S3 Automatic Bar Feeder:
Dimensions; Length: 4400 mm, Height: 1200 mm
Working length: 3200 mm

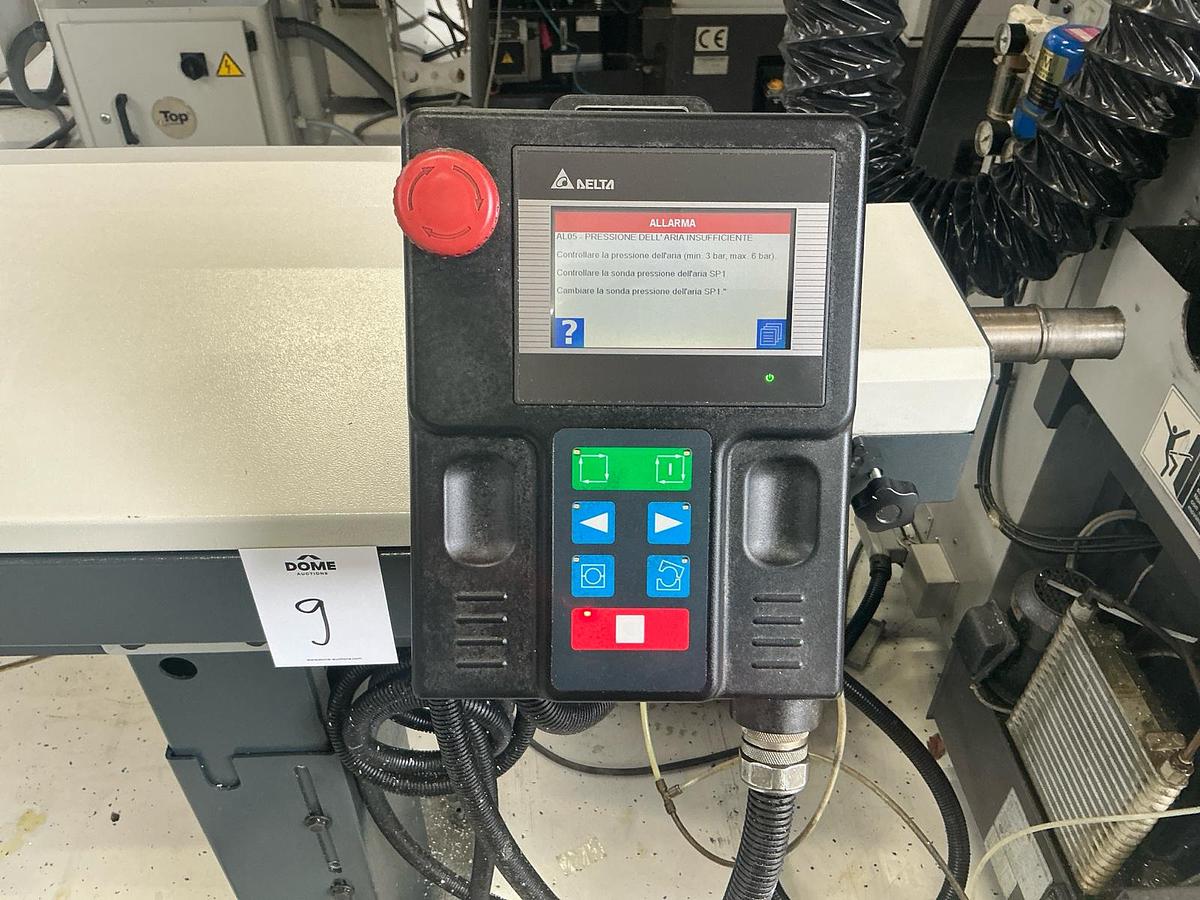

Equipped with: Delta control system
Adittional costs: EUR 1.750 loaded on truck
Also available:
- 2017 Tsugami B038TE CNC Swiss-type automatic lathe including a 2018 TOP RES338SX Automatic Bar Feeder
- 2015 Mitutoyo Quick-scope Measuring System
For more detailed machine information, output and specifications, to schedule an on-site inspection and/or direct sale price quotations please contact us via sales@assetsforsale.com. The machine's availability is subject to ongoing private treaty.
* Please note that this description has been translated automatically. The information in this listing is only indicative and is subject to change at any time without notice. Contact us for further information.
